Installation
NOTE:

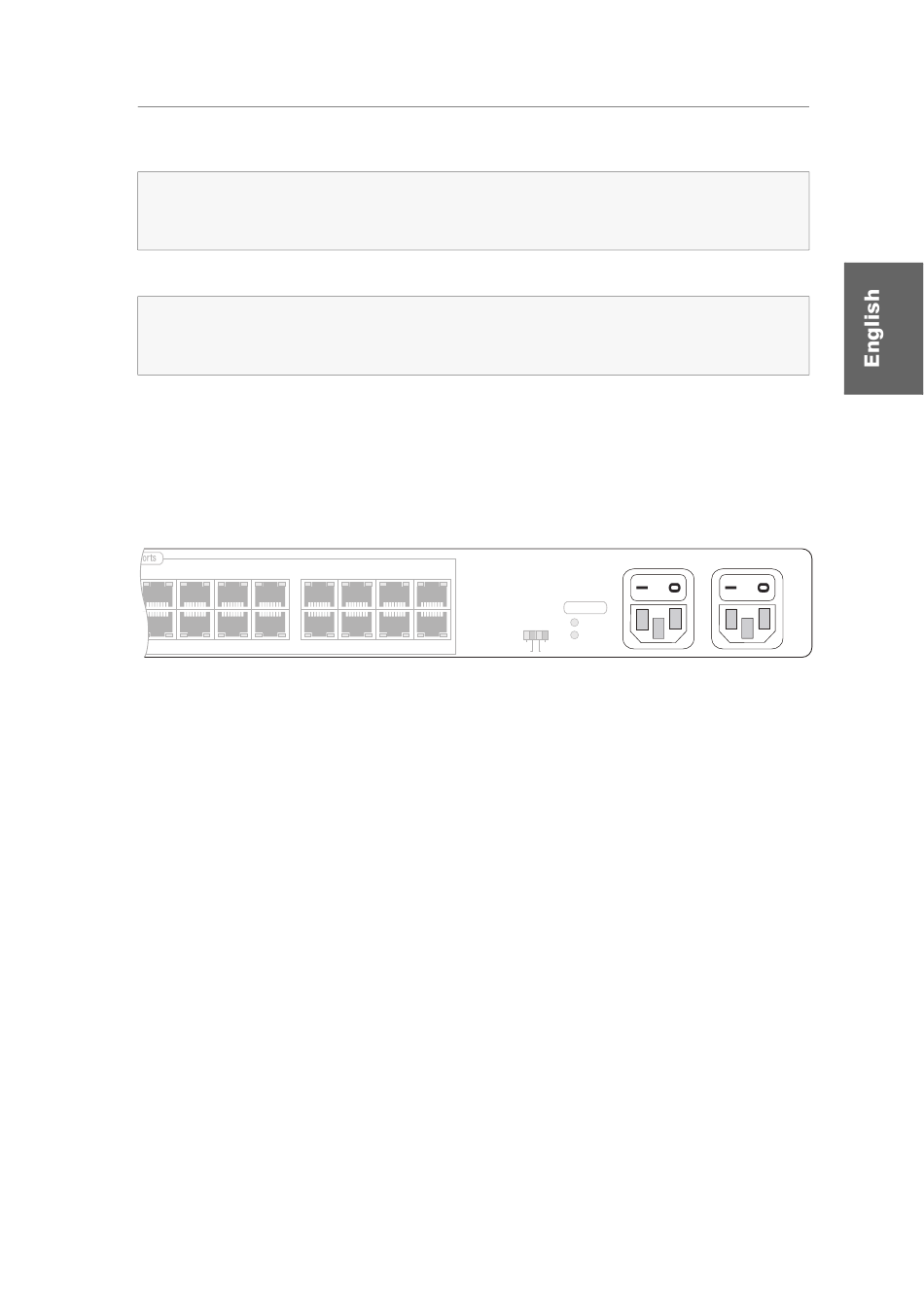

The following drawings refer to the
variants vary in the number of dynamic ports and the transmission medium
(CAT/Fiber) to connect console modules, DWCs and computer modules.
The following pages describe the installation of the devices of the KVM system.
NOTE:
When choosing a place for the device, please ensure to comply with the
ambient temperature limit (see Technical data on page 24) close to the device. The
ambient temperature limit must not be influenced by other devices.
Required accessories
One or two category 5e (or better) twisted pair cables to connect the central module
to one or two local networks.
Power supply
18
20
22
24
17
19
21
23
Main Power:
Plug one of the supplied power cable in this interface. Connect the
power cable with a power outlet and turn the power button on.
Red. Power:
If required, plug one of the supplied power cable in this interface to
establish a redundant power supply. Connect the power cable with a power outlet of
another power circuit and turn the power button on.
ControlCenter-Compact-16F16C
26
28
30
32
29
25
27
31
Main Power
Main Power
Power
Red.
Main
Status
Ident.
Fail
Portfunction
G&D ControlCenter-Compact · 7
Installation
. The different
Red. Power
Red. Power
