Relay output (optional)

5.4.1 P13 Relay function
FACTORY DEFAULT: 0001
P13 a
Outputs ➙ Relay output ➙ Relay mode
EView2
a Operating mode
0 By PV (P14-P15-P16)
1 "No ECHO" (echo loss):
C1 = "On" (release)
2 "No ECHO" (echo loss):
C2 = "On" (energize)
3 FLOW impulse (P17)
4 C1 error (release)
9 OFF
Operating mode: only relevant for operation by PV (P13a = 0)
P13 b
Outputs ➙ Relay Function
EView2
b Function
Analog current output mode
0 Hysteresis
1 Window
comparator
FLOW impulse constant's (P17) unit (if P13:a = 3)
P13 c
Outputs ➙ Relay output ➙ Relay parameters ➙
EView2
➙ Pulse constant unit
c FLOW impulse constant's
Metric (EU)
0 m3
1 liter
2 liter
Description
The operating mode of the
RELAY optionally built into the
device can be set with this
parameter. If it is set to "by
PV," the RELAY operates
based on t 1 he triggering
(P14) and releasing (P15)
values set.
The "No ECHO" setting
enables a switched (relay
contact) error signal
to the process controller.
Caution! When the device is
de-energized, the relay
releases, so C1 is ON.
Description
Imperial (US)
ft3
US gallon
GB gallon
Type 2298 80 GHz Radar Level Sensor
Programmable parame-
ters
P14, P15
At least 20 mm (0.787")
hysteresis required
between
P14 and P15.
P14 > P15 – normal
operation
P14 < P15 – inverted
operation
P14, P15
At least 20 mm (0.787")
hysteresis required
between
P14 and P15.
P14 > P15 – normal
operation
P14 < P15 – inverted
operation

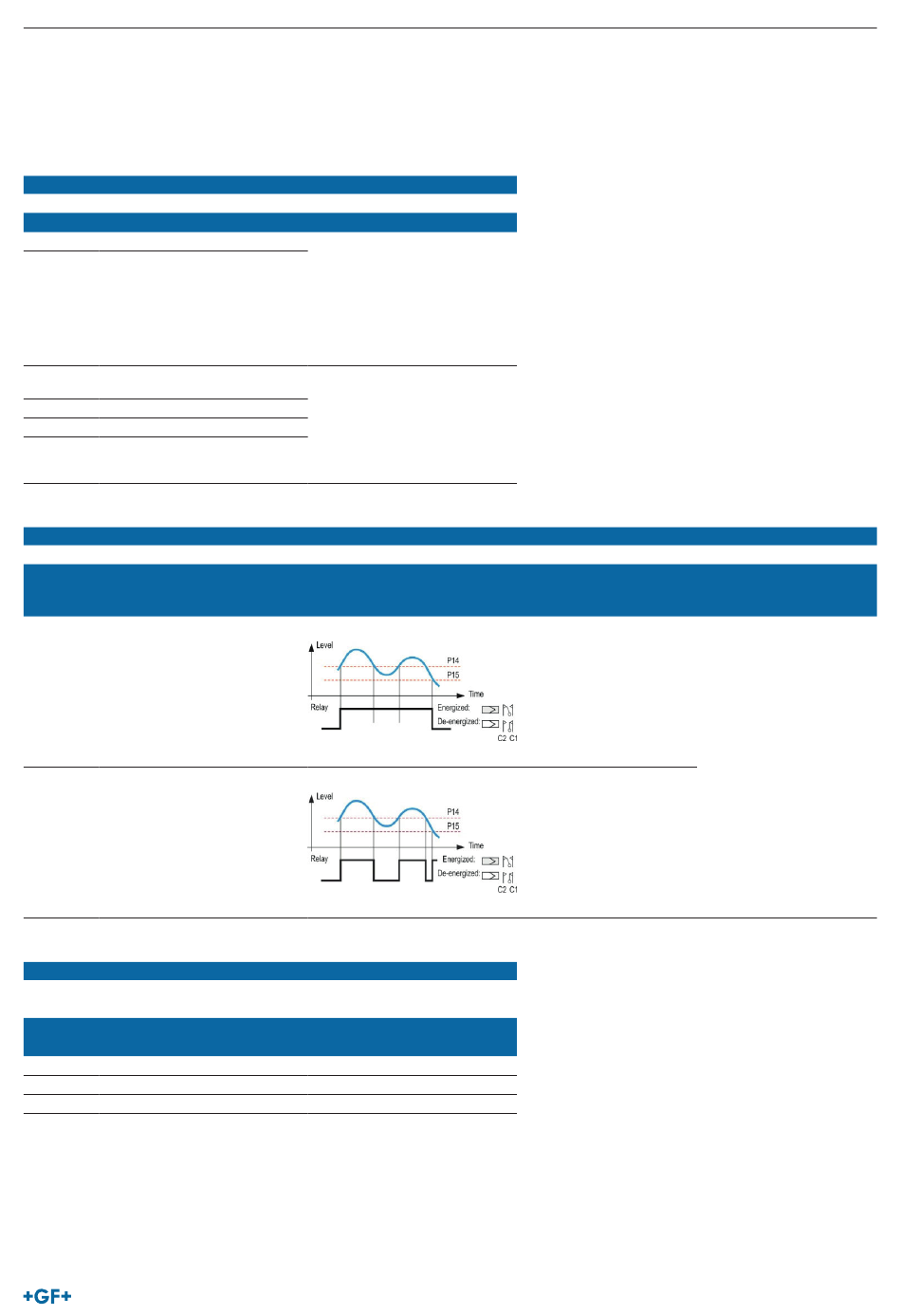

Description
The basic switching
method of the
RELAY set to "PV" mode
can be
adjusted.
