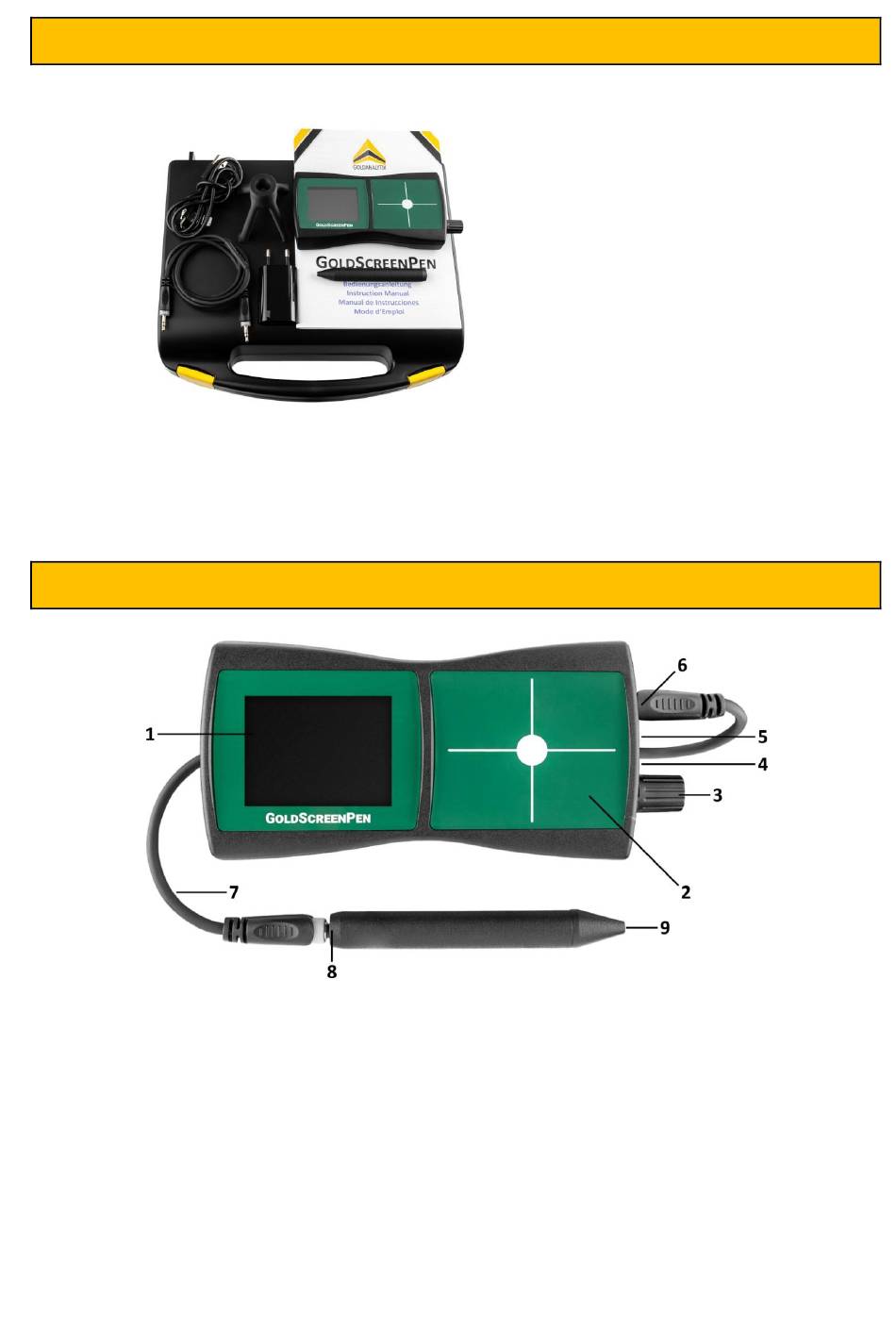

3 Scope of Supply
Before initial start-up, please check that the components mentioned above are included in the
scope of delivery of the GoldScreenPen set and that there is no obvious transport damage. In
case of any defects, please contact Goldanalytix immediately (for contact details, see page 32).
4 Operation and Display Elements
1 LCD colour display
2 Contact surface
3 Rotary knob for operating the device
4 Reset button
5 Charging socket
6 Jack socket on the device for connecting the probe pen via the jack cable
7 Jack cable
8 Jack socket on the probe pen
9 Measuring tip with integrated sensor coil
GoldScreenPen
Probe pen
Jack cable
Probe pen holder
Charger
Instruction manual
Carrying case with inlay
Shipping carton
⑤
23
