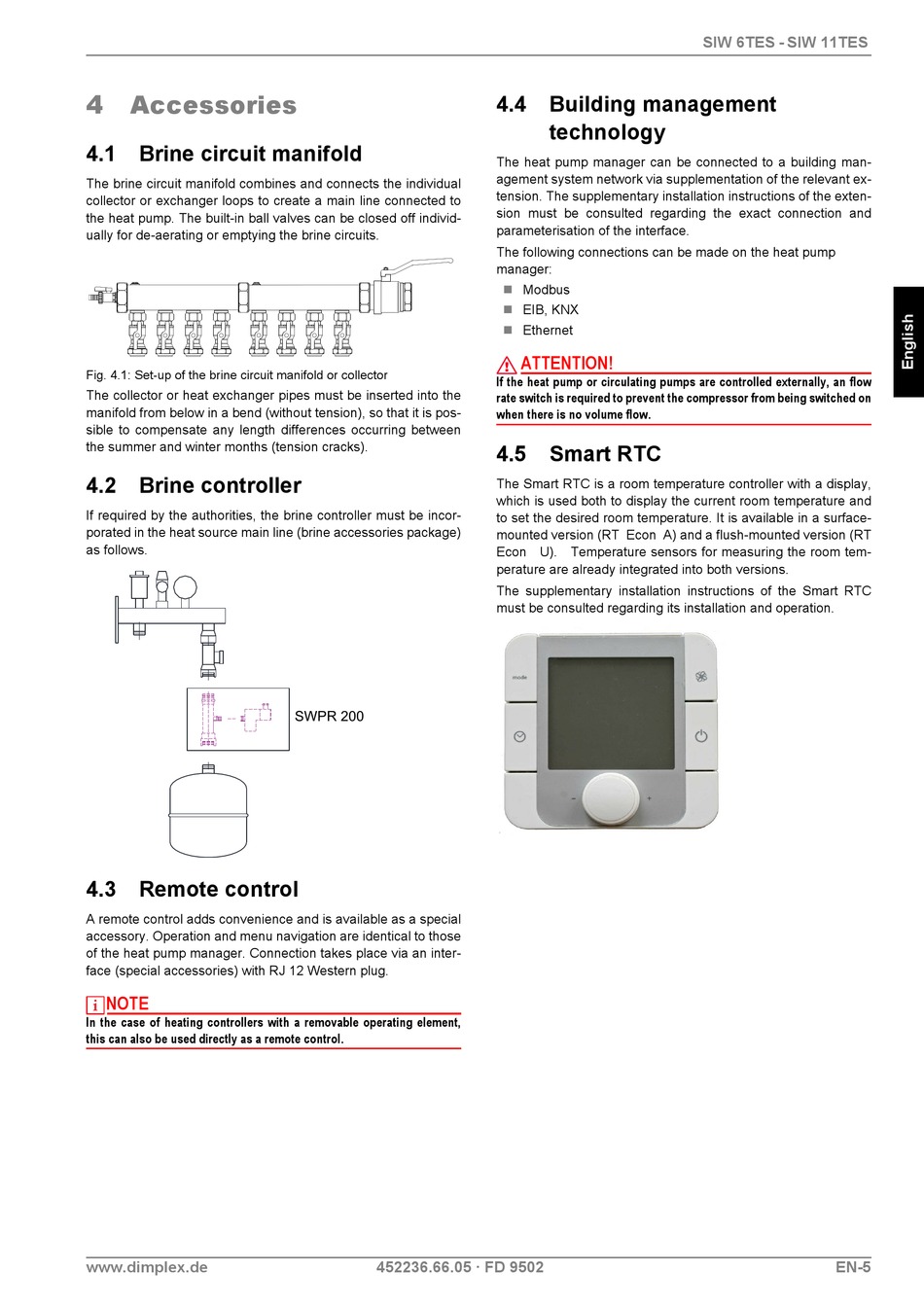

4

Accessories

4.1 Brine circuit manifold

The brine circuit manifold combines and connects the individual
collector or exchanger loops to create a main line connected to
the heat pump. The built-in ball valves can be closed off individ-
ually for de-aerating or emptying the brine circuits.
Fig. 4.1: Set-up of the brine circuit manifold or collector
The collector or heat exchanger pipes must be inserted into the
manifold from below in a bend (without tension), so that it is pos-
sible to compensate any length differences occurring between
the summer and winter months (tension cracks).

4.2 Brine controller

If required by the authorities, the brine controller must be incor-
porated in the heat source main line (brine accessories package)
as follows.

4.3 Remote control

A remote control adds convenience and is available as a special
accessory. Operation and menu navigation are identical to those
of the heat pump manager. Connection takes place via an inter-
face (special accessories) with RJ 12 Western plug.
NOTE
In the case of heating controllers with a removable operating element,
this can also be used directly as a remote control.
www.dimplex.de
4.4 Building management
technology
The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant ex-
tension. The supplementary installation instructions of the exten-
sion must be consulted regarding the exact connection and
parameterisation of the interface.
The following connections can be made on the heat pump
manager:
 Modbus
 EIB, KNX
 Ethernet
ATTENTION!
If the heat pump or circulating pumps are controlled externally, an flow
rate switch is required to prevent the compressor from being switched on
when there is no volume flow.

4.5 Smart RTC

The Smart RTC is a room temperature controller with a display,
which is used both to display the current room temperature and
to set the desired room temperature. It is available in a surface-
mounted version (RT Econ A) and a flush-mounted version (RT
Econ U). Temperature sensors for measuring the room tem-
perature are already integrated into both versions.
The supplementary installation instructions of the Smart RTC
must be consulted regarding its installation and operation.
