Scheppach PM1400 Originalbetriebsanleitung Seite 24

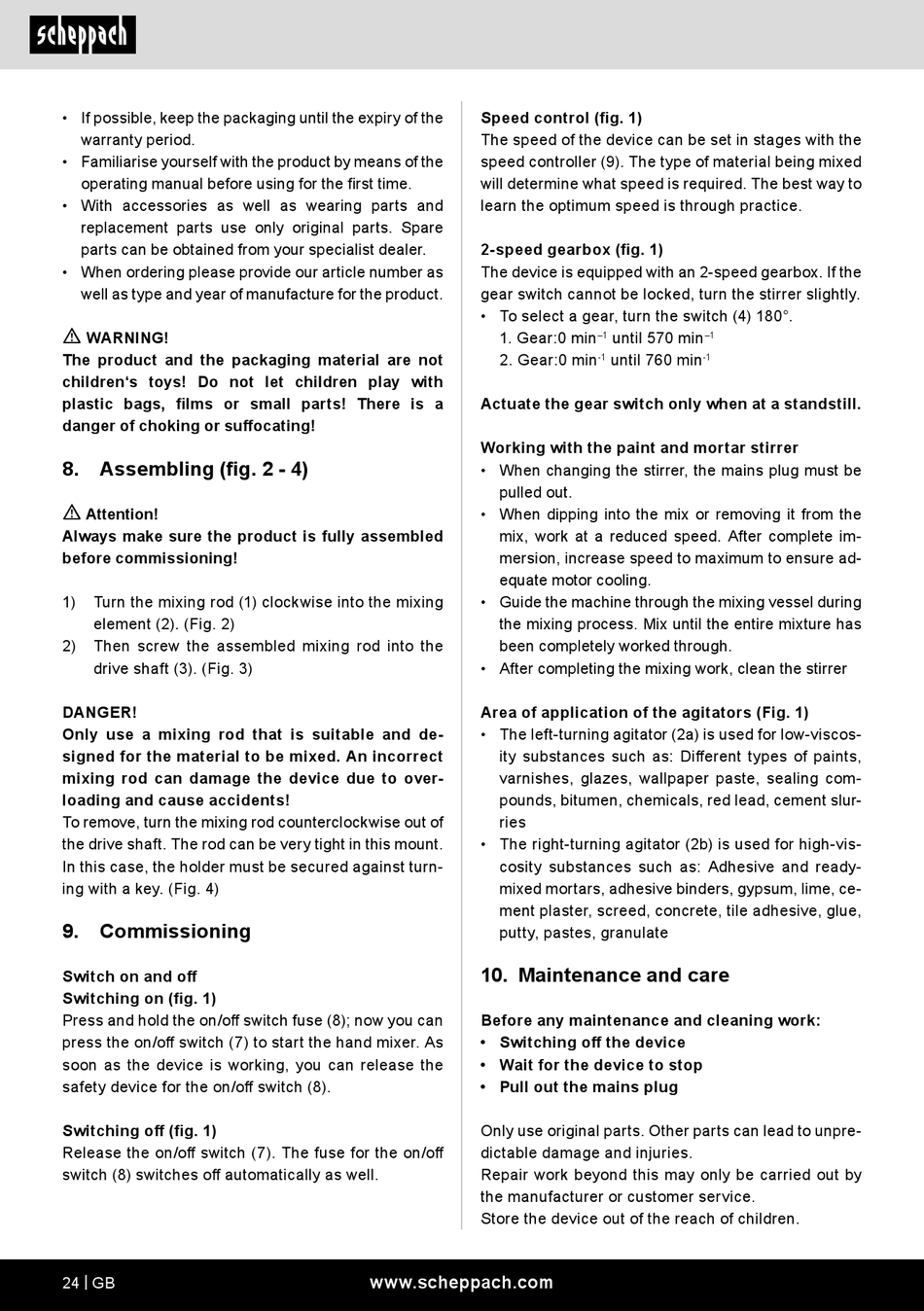

• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and
replacement parts use only original parts. Spare
parts can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m
WARNING!
The product and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a
danger of choking or suffocating!
8. Assembling (fig. 2 - 4)
m
Attention!
Always make sure the product is fully assembled
before commissioning!
1) Turn the mixing rod (1) clockwise into the mixing
element (2). (Fig. 2)
2) Then screw the assembled mixing rod into the
drive shaft (3). (Fig. 3)
DANGER!
Only use a mixing rod that is suitable and de-
signed for the material to be mixed. An incorrect
mixing rod can damage the device due to over-
loading and cause accidents!
To remove, turn the mixing rod counterclockwise out of
the drive shaft. The rod can be very tight in this mount.
In this case, the holder must be secured against turn-
ing with a key. (Fig. 4)
9. Commissioning
Switch on and off
Switching on (fig. 1)
Press and hold the on/off switch fuse (8); now you can
press the on/off switch (7) to start the hand mixer. As
soon as the device is working, you can release the
safety device for the on/off switch (8).
Switching off (fig. 1)
Release the on/off switch (7). The fuse for the on/off
switch (8) switches off automatically as well.
24 | GB
Speed control (fig. 1)
The speed of the device can be set in stages with the
speed controller (9). The type of material being mixed
will determine what speed is required. The best way to
learn the optimum speed is through practice.
2-speed gearbox (fig. 1)
The device is equipped with an 2-speed gearbox. If the
gear switch cannot be locked, turn the stirrer slightly.
• To select a gear, turn the switch (4) 180°.
1. Gear:0 min
2. Gear:0 min
Actuate the gear switch only when at a standstill.
Working with the paint and mortar stirrer
• When changing the stirrer, the mains plug must be
pulled out.
• When dipping into the mix or removing it from the
mix, work at a reduced speed. After complete im-
mersion, increase speed to maximum to ensure ad-
equate motor cooling.
• Guide the machine through the mixing vessel during
the mixing process. Mix until the entire mixture has
been completely worked through.
• After completing the mixing work, clean the stirrer
Area of application of the agitators (Fig. 1)
• The left-turning agitator (2a) is used for low-viscos-
ity substances such as: Different types of paints,
varnishes, glazes, wallpaper paste, sealing com-
pounds, bitumen, chemicals, red lead, cement slur-
ries
• The right-turning agitator (2b) is used for high-vis-
cosity substances such as: Adhesive and ready-
mixed mortars, adhesive binders, gypsum, lime, ce-
ment plaster, screed, concrete, tile adhesive, glue,
putty, pastes, granulate
10. Maintenance and care
Before any maintenance and cleaning work:
• Switching off the device
• Wait for the device to stop
• Pull out the mains plug
Only use original parts. Other parts can lead to unpre-
dictable damage and injuries.
Repair work beyond this may only be carried out by
the manufacturer or customer service.
Store the device out of the reach of children.
www.scheppach.com
until 570 min
–1 –1
until 760 min
-1 -1
