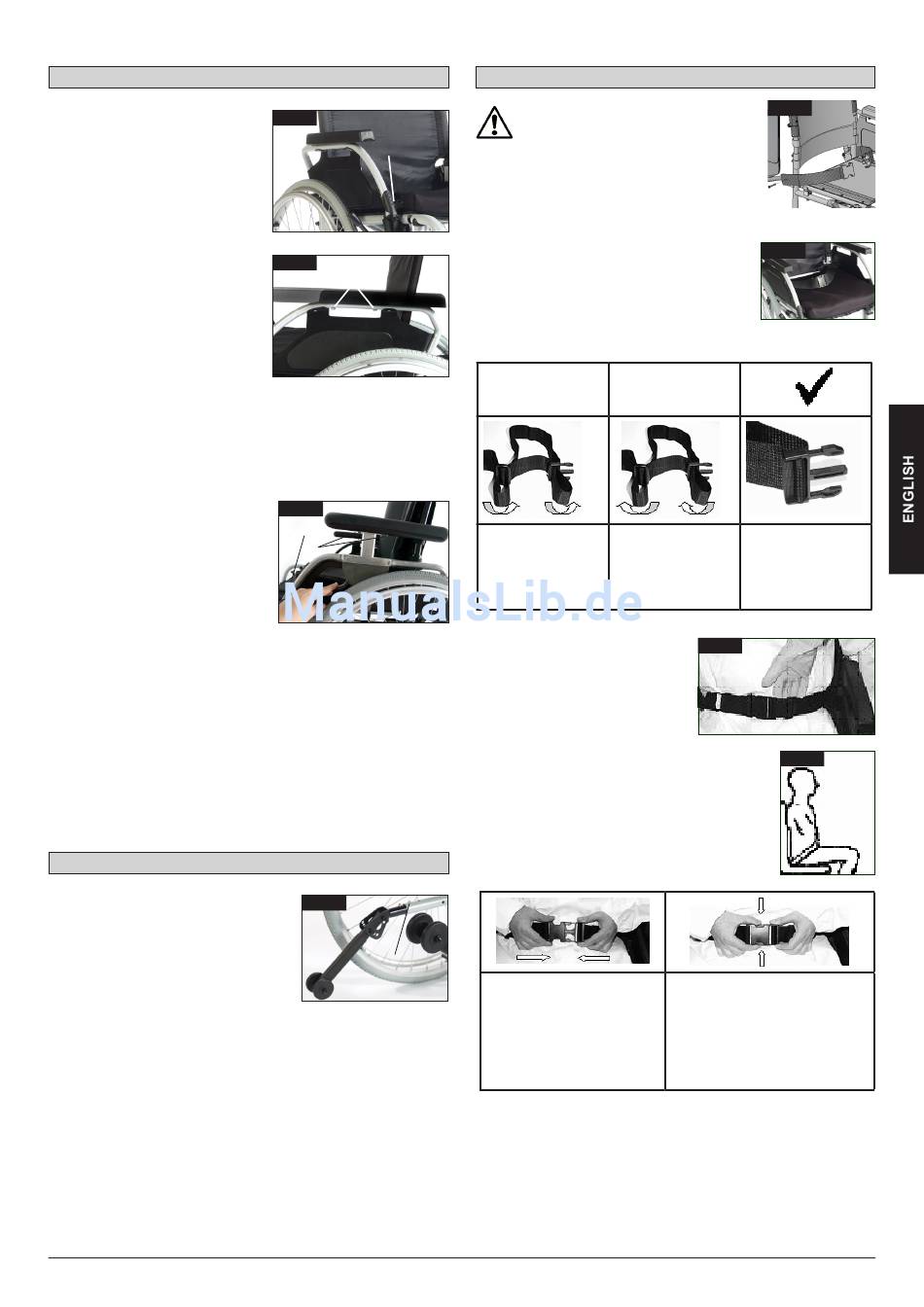

Options – Sideguard
Standard sideguard,
flip-up, with short or long
armrests
The sideguard with rounded off front
edges will allow you to get up close
to a table. To flip the armrest up,
push the lever (1), so that the
sideguard is released (Fig. 30).
The length of the armrest can be
adjusted by releasing the screws (2),
then move the armrest to the desired
position and re-tighten the screws
(Fig. 31).
CAUTION:
Neither the sideguards nor the armrests are to be used for
lifting or carrying the wheelchair.
Sideguard, flip-up, removable with short or long armrests,
height-adjustable
The armrest can be height-adjusted as follows.
Push the lever downwards and move
the armrest to the desired height.
Release the lever and press the
armrest downwards until you hear it
click into place. Always check that
the sideguards are correctly in
place.
To flip the armrest up, push the lever
(1) so that the sideguard is released.
You can adjust the length of the armrest by releasing the screws (2)
push the armrest to the desired position and then re-tighten the
screws (Fig. 32).
CAUTION:
Neither the sideguards nor the armrests are to be used for
lifting or carrying the wheelchair.
CAUTION:
When using a 24" rear wheel the armpad must be moved one
level up to avoid any finger trap.
Options – Anti-Tip Tubes
Anti-Tip Tubes
Anti-tip tubes provide additional safety
for inexperienced users when they are
still learning how to operate their
wheelchair. They prevent a wheelchair
from tipping over backwards.
By pushing on the release button (1), the
safety wheels can be set upwards or removed. There must always
be a gap of between 3 cm and 5 cm between the tube and the
ground.
You must swing the safety wheels upwards when going up and
down large obstacles (such as a kerb) to prevent them from
touching the ground. Then rotate the safety wheels back down to the
normal position (Fig. 34).
UniX Rev 1
Fig. 30
1
Fig. 31
2
Fig. 32
1
2
Fig. 34
1
Options – Lap belt
Before using your wheelchair ensure
the seat belt is worn and correctly
adjusted before use.
The lap belt is fitted to the wheelchair as shown
in the illustrations. The seat belt comprises 2
halves. They are fitted using the existing armrest
fixing bolt fitted through the eyelet on the belt.
The belt is routed under the rear of the side
panel. (Fig. 35)
Adjust the belt position so buckles are in the
centre of the seat. (Fig. 36)
Adjust lap belt to suit the user's needs as follows:
To increase the belt To reduce the belt
length
Feed free belt Feed free belt back
through slide adjust- through male buckle
ers and male buckle and slide adjusters.
to provide more belt
length.
When fastened check space
between the lap belt and user,
when correctly adjusted it should
not be possible to insert more than
the flat of the hand between the
lap belt and the user. (Fig. 37)
Generally the lap belt should be fixed so that the
straps sit at an angle of approximately 45°, and
when correctly adjusted should not allow user to
slip down in the seat.
(Fig. 38)
To fasten buckle:
Firmly push male buckle into
female buckle.
Fig. 35
Fig. 36
lenght
Ensure belt is not
looped at male
buckle.
Fig. 37
Fig. 38
To release belt:
Press exposed sides of male
buckle and push towards centre
/ push the press button of the
female buckle whilst gently pull-
ing apart.
UniX Rev 1
10
