HELMET VENT OPERATION

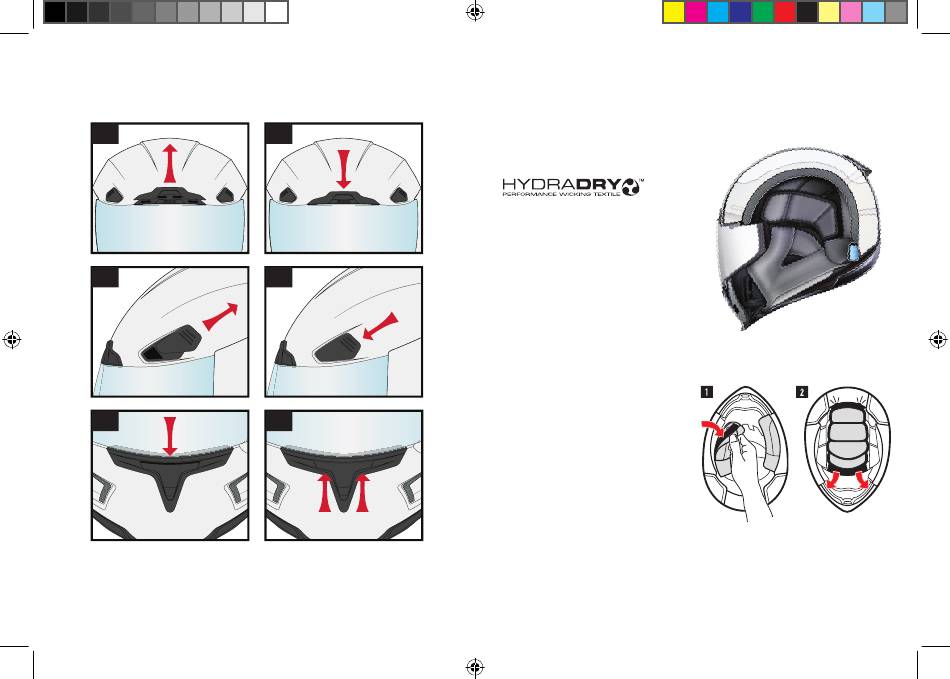

The Airframe Pro uses four simple switches to manage airflow to the interior of the helmet.
1
OPEN
3
OPEN
5
OPEN
9
AFPCarbonINTLInstructionManual 1-05-24.indd 9-10 AFPCarbonINTLInstructionManual 1-05-24.indd 9-10
2
CLOSE
4
CLOSE
6
CLOSE
INNER LINER AND CHEEK PADS
SAFETY WARNING: THE LINER AND CHEEKPADS ARE ESSENTIAL TO THE INTENDED PERFORMANCE OF THE HELMET; THEY MUST
BE PROPERLY INSTALLED WHEN USING THE HELMET. FAILURE TO PROPERLY INSTALL THE LINER AND CHEEKPADS MAY RESULT
IN SERIOUS INJURY OR DEATH.
The ICON ® AIRFRAME PRO™ helmet features a customizable interior
lined with Icon's exclusive moisture wicking material, HydraDry™.
The size of a helmet is based on a combination of three factors:
outer shell size, inner eps thickness, and interior component
thickness. The fit of the helmet can be customized by replacing
your existing cheekpads with thinner cheekpads (for a looser fit), or
thicker cheekpads (for a tighter fit). To order replacement interior
components visit your local dealer or www.rideicon.com.
REMOVAL AND INSTALLATION
How to remove your interior for cleaning or replacement:
1. With the helmet upside down and with the chin bar
facing away from you release each cheekpad from the
helmet by pulling inward, freeing it from the snap and hook
and loop fastening system. Note how the chin
straps thread through the cheekpads and how the cheekpad
plate slips between the helmet shell and EPS liner for
reassembly.
2. Remove inner liner by releasing it from the two snap
system on the back of the helmet. Then remove the two
snaps in the brow. Then remove the crown comfort liner
attachment point, taking note of how the crown plate
attachment slips into place between the shell and EPS
liner.
3. Reverse these steps to reinstall the inner liner and
cheekpads.
CARE OF LINING AND CHEEKPADS
ICON ® helmets come with an liner and or cheek pads to make cleaning and upkeep of your helmet interior easy. Remove the inner
liner and cheek pads according to the preceding instructions and gently HAND WASH with baby shampoo in cold water. Let air-dry.
DO NOT WASH IN MACHINE OR TUMBLE DRY. HAND WASH AND AIR-DRY ONLY.
