USING THE HELMET CONTINUED

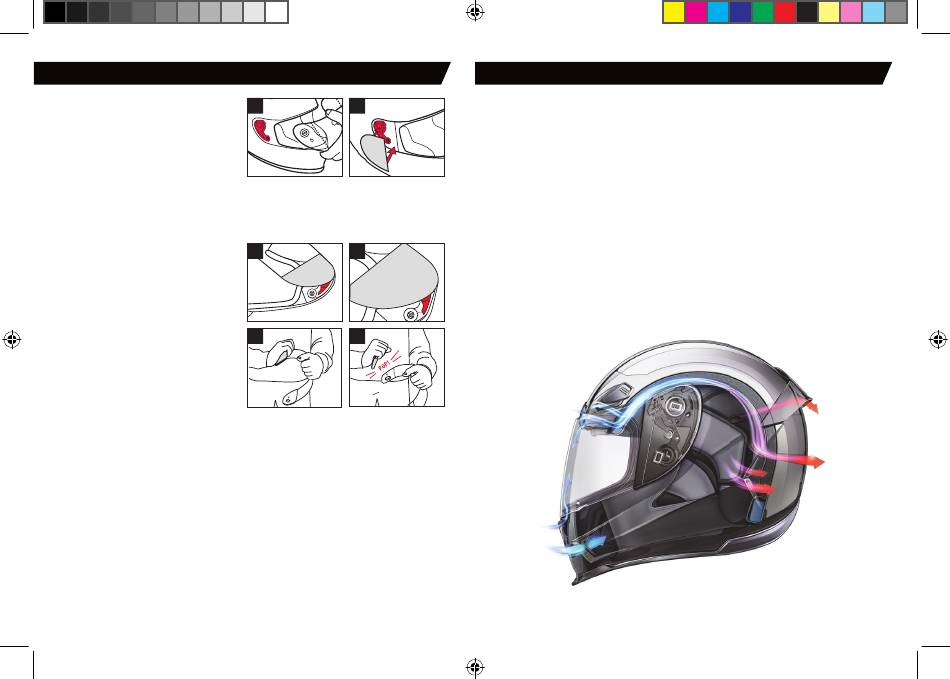

INSTALLING THE VISOR (FACE SHIELD).
1. Align the tabs on the visor (face shield) with the holes
on the mechanism plates and press in until secure.
2. To replace the side plates, align tabs on side plate with
holes in visor (face shield), and snap it into place.
Repeat for adjacent side plate.
3. Test out the opening and closing function of your visor
(face shield) before riding.
REMOVING THE VISOR (FACE SHIELD).
1. To remove the visor (face shield), open the visor
(face shield) completely.
2. Push both locking levers to the open position towards
the rear of the helmet and remove the visor
(face shield) from the mechanism.
3. Once removed, brace the visor (face shield) with one
hand, and use the other hand to pull the side plates
from the straight, long edge (the front of the side
plates).
4. Pull each side plate until they pop free from the visor
(face shield).
BEFORE EVERY USE VISOR (FACE SHIELD) INSPECTION
Inspect your visor (face shield). Check that the mechanisms of the visor (face shield) are working properly and that the visor (face
shield) will provide suffi ciently clear visibility. Any dirt, bugs, residues, or anything that would affect the visibility of the visor (face
shield) should be removed before riding. A dirty visor (face shield) will seriously impair visibility. For your own safety, clean it
immediately. Check the visor (face shield) for physical damage, cracks and scratches. A scratched or cracked or otherwise damaged
visor (face shield) will considerably impair your vision and must be replaced.
CARE, CLEANING, AND STORAGE INSTRUCTIONS OF THE VISOR (FACE SHIELD)
The surface of the visor (face shield) must be cleaned carefully to prevent scratching. Lay a clean, warm, wet, soft cloth on the
exterior of the visor (face shield) helmet for at least 5 minutes to help soften dried on bugs. (Do not skip this step!). Then clean gently
with clean, soft, cloth using mild soap and warm water. Rinse using a clean, soft cloth and clean water to remove any soap residue.
Then dry gently using a clean, soft cloth. Never use any solvent, window or glass cleaner or other cleaning agents on the visor (face
shield). Never attach labels, adhesive tape or stickers to the visor (face shield).
If your helmet has been supplied with an internal retractable solar shield, be sure to follow the instructions at BEFORE EVERY USE
VISOR (FACE SHIELD) INSPECTION and CARE, CLEANING, AND STORAGE INSTRUCTIONS OF THE VISOR (FACE SHIELD) also for the internal
retractable solar shield.
7
AFPCarbonINTLInstructionManual 1-05-24.indd 7-8 AFPCarbonINTLInstructionManual 1-05-24.indd 7-8
3 3 4
1 2
E E 5
6
1 2
1 2
3 4
4
3 3
E E 5 6
USING THE HELMET CONTINUED
HEARING
SAFETY WARNING: WEARING ANY HELMET REDUCES THE WEARER'S ABILITY TO HEAR. A WEARER NEEDS TO BE AWARE OF THIS
AUDIBLE REDUCTION AND THEIR SURROUNDINGS. NOT BEING AWARE THIS AUDIBLE REDUCTION MAY LEAD TO AN ACCIDENT THAT
COULD RESULT IN SERIOUS INJURY OR DEATH.
SAFETY WARNING: BEFORE OPERATING ANY HELMET COMMUNICATION SYSTEM BE AWARE OF AND UNDERSTAND THE LOCAL,
REGIONAL, AND NATIONAL AND INTERNATIONAL REQUIREMENTS REGARDING COMMUNICATION DEVICE USE WHEN OPERATING A
MOTOR VEHICLE, FOR ALL AREAS IN WHICH YOU INTEND TO TRAVEL.
VENTING SYSTEM
Ventilation is a premier aspect of the Airframe Pro, with a total of nine intake vents and fi ve exhaust vents. The forehead vents are angled to
provide linear venting at speed. A deep-channel EPS liner enhances this feature by routing air more effectively. The chin vent is designed for an
aggressive riding position, providing intake at the attack angle. The low-pressure exhaust vents round out the venting package.
COOL AIR IN WARM AIR OUT
