AIRFRAME PRO
HELMET
TM
OWNERS INSTRUCTION MANUAL
ANGLE OF ATTACK
The modern riding position - higher rear sets, lower clip-ons - has dramatically altered how a rider interacts with the modern
hypersport motorcycle. Compressed into an ever more compact shape, the rider's head positioning requires increased angle to
ICON
®
maintain visibility and stability. With this in mind,
Concentrating on this singular design focus allowed us to realize opportunities to decrease drag and weight by sculpting the
traditional neckline to avoid jacket or suit interference. Its aggressive geometry increases the line of sight while improving
aerodynamic attitude in a fully-tucked riding posture.
The dramatically reduced shell profile, comprised of aerospace-grade carbon fiber or FRP, features a track-recognized ECE
certification. Precision assembly techniques further this dedication to mass reduction, allowing Icon® to craft a helmet that is
exceptionally light and peerlessly outfitted.
Internally, the traditional three-piece liner has been upgraded to a five-piece liner, providing a greater amount of fitment
combinations for each unique head shape. Crown, lateral, fore and aft padding components allow for a possibility of 27 fitment
combinations in a single shell, double that of the AIRFRAME PRO's
Both internally and externally, the
ICON
®
AIRFRAME PRO
TM
Design-Develop-Deploy: We're setting the new asphault tech standards with the ICON
1
AFPCarbonINTLInstructionManual 1-05-24.indd 1-2
AFPCarbonINTLInstructionManual 1-05-24.indd 1-2
TM
designed the AIRFRAME PRO
.
TM
competitors.
is optimized for the Angle of Attack.
Airframe Pro
helmet.
®
TM
HELMET SAFETY STANDARDS
This helmet meets the following helmet safety standards.
- UNECE - UN Regulation R22.06
- DOT - FMVSS NO.218
- PSC and/or JIS and/or SG (Helmet does not ship with PSC and/or JIS and/or SG certification stickers unless
purchased from an authorized dealer in that country.)

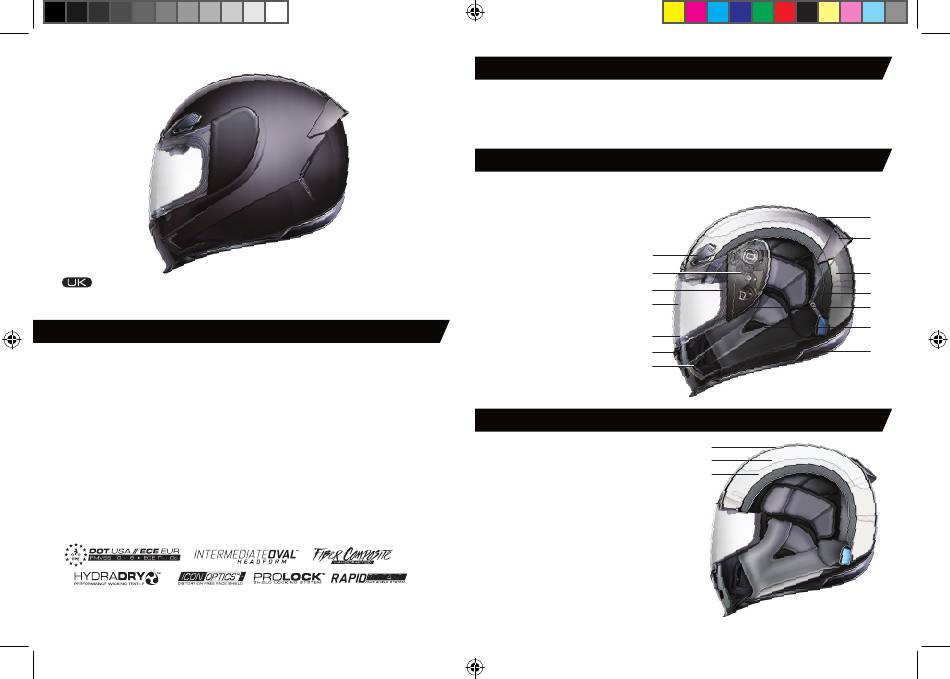

HELMET COMPONENTS
Refer to the diagram below to familiarize yourself with specific names and terms used on the helmet before attempting to repair
or replace parts on the helmet.
1
FOREHEAD VENTS
//
2
SHIELD RELEASE SYSTEM
//
3
EYEPORT GASKET
//
4
VISOR (FACE SHIELD) -
//
1
ICON OPTICS™ SHIELD
//
5
BREATH DEFLECTOR
//
2
//
6
MOUTH VENT
//
7
CHIN INTAKE VENTS
//
3
//
8
OUTER SHELL
//
9
REAR SPOILER
//
4
//
10
DUAL DENSITY EPS
//
11
EXHAUST VENTS
//
12
SIDEPLATE
//
5
13
COMFORT LINER
//
//
14
BASE GASKET
//
6
//
7
//
SHELL & EPS
The handcrafted composite shell of the ICON
®
AIRFRAME PRO
helmet is manufactured under
TM
stringent quality control standards.
The ICON
AIRFRAME PRO's dual-density Expanded
®
Polystyrene liners are engineered to offer maximum
impact absorption and force dissipation.
Additionally, both liners are channeled with an
extensive series of directional air ducts to distribute
airflow from the outer ventilation system.
AIRFRAME PRO
1 // FIRBERGLASS COMPOSITE SHELL
2 // EPS DENSITY 2
3 // EPS DENSITY 1
AIRFRAME PRO CARBON
1 // CARBON FIBER SHELL
2 // EPS DENSITY 2
3 // EPS DENSITY 1
8
//
9
//
10
//
11
//
12
//
13
//
14
//
1
//
2
//
3
//
1/5/24 2:18 PM
1/5/24 2:18 PM
2
