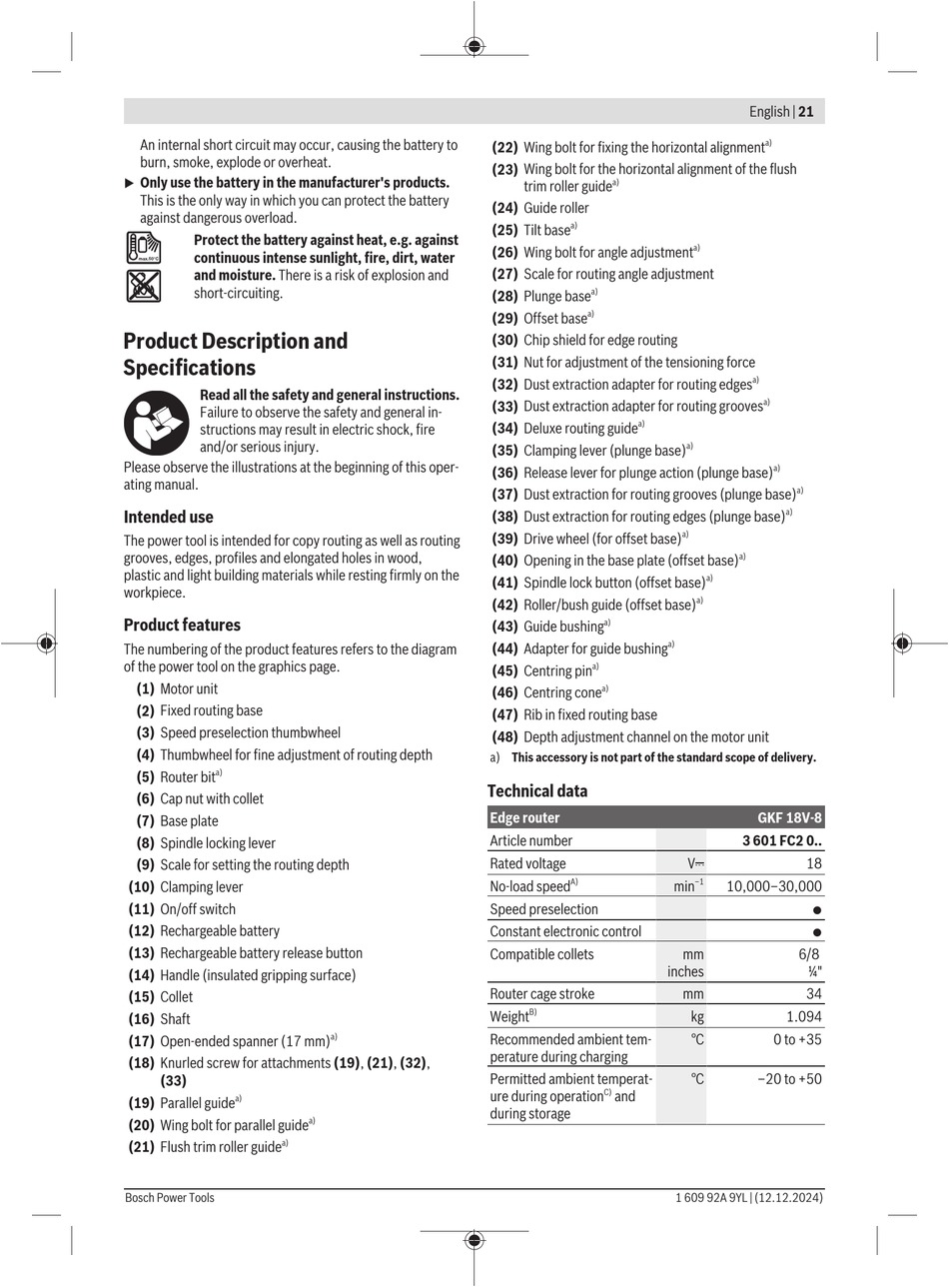

An internal short circuit may occur, causing the battery to
burn, smoke, explode or overheat.
Only use the battery in the manufacturer's products.
u
This is the only way in which you can protect the battery
against dangerous overload.
Protect the battery against heat, e.g. against
continuous intense sunlight, fire, dirt, water
and moisture. There is a risk of explosion and
short-circuiting.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended use
The power tool is intended for copy routing as well as routing
grooves, edges, profiles and elongated holes in wood,
plastic and light building materials while resting firmly on the
workpiece.
Product features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) Motor unit
(2) Fixed routing base
(3) Speed preselection thumbwheel
(4) Thumbwheel for fine adjustment of routing depth
a)
(5) Router bit
(6) Cap nut with collet
(7) Base plate
(8) Spindle locking lever
(9) Scale for setting the routing depth
(10) Clamping lever
(11) On/off switch
(12) Rechargeable battery
(13) Rechargeable battery release button
(14) Handle (insulated gripping surface)
(15) Collet
(16) Shaft
(17) Open-ended spanner (17 mm)
(18) Knurled screw for attachments (19), (21), (32),
(33)
a)
(19) Parallel guide
(20) Wing bolt for parallel guide
a)
(21) Flush trim roller guide
Bosch Power Tools
Technical data
a)
a)
(22) Wing bolt for fixing the horizontal alignment
(23) Wing bolt for the horizontal alignment of the flush
a)
trim roller guide
(24) Guide roller
a)
(25) Tilt base
(26) Wing bolt for angle adjustment
(27) Scale for routing angle adjustment
a)
(28) Plunge base
a)
(29) Offset base
(30) Chip shield for edge routing
(31) Nut for adjustment of the tensioning force
(32) Dust extraction adapter for routing edges
(33) Dust extraction adapter for routing grooves
a)
(34) Deluxe routing guide
(35) Clamping lever (plunge base)
(36) Release lever for plunge action (plunge base)
(37) Dust extraction for routing grooves (plunge base)
(38) Dust extraction for routing edges (plunge base)
(39) Drive wheel (for offset base)
(40) Opening in the base plate (offset base)
(41) Spindle lock button (offset base)
(42) Roller/bush guide (offset base)
a)
(43) Guide bushing
a)
(44) Adapter for guide bushing
a)
(45) Centring pin
a)
(46) Centring cone
(47) Rib in fixed routing base
(48) Depth adjustment channel on the motor unit
a) This accessory is not part of the standard scope of delivery.
Edge router
Article number
Rated voltage
A)
No-load speed
Speed preselection
Constant electronic control
Compatible collets
inches
Router cage stroke
B)
Weight
Recommended ambient tem-
perature during charging
Permitted ambient temperat-
C)
ure during operation and
during storage
English | 21
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
GKF 18V-8
3 601 FC2 0..
V 18
–1
min 10,000–30,000
●
●
mm 6/8
¼"
mm 34
kg 1.094
°C 0 to +35
°C –20 to +50
