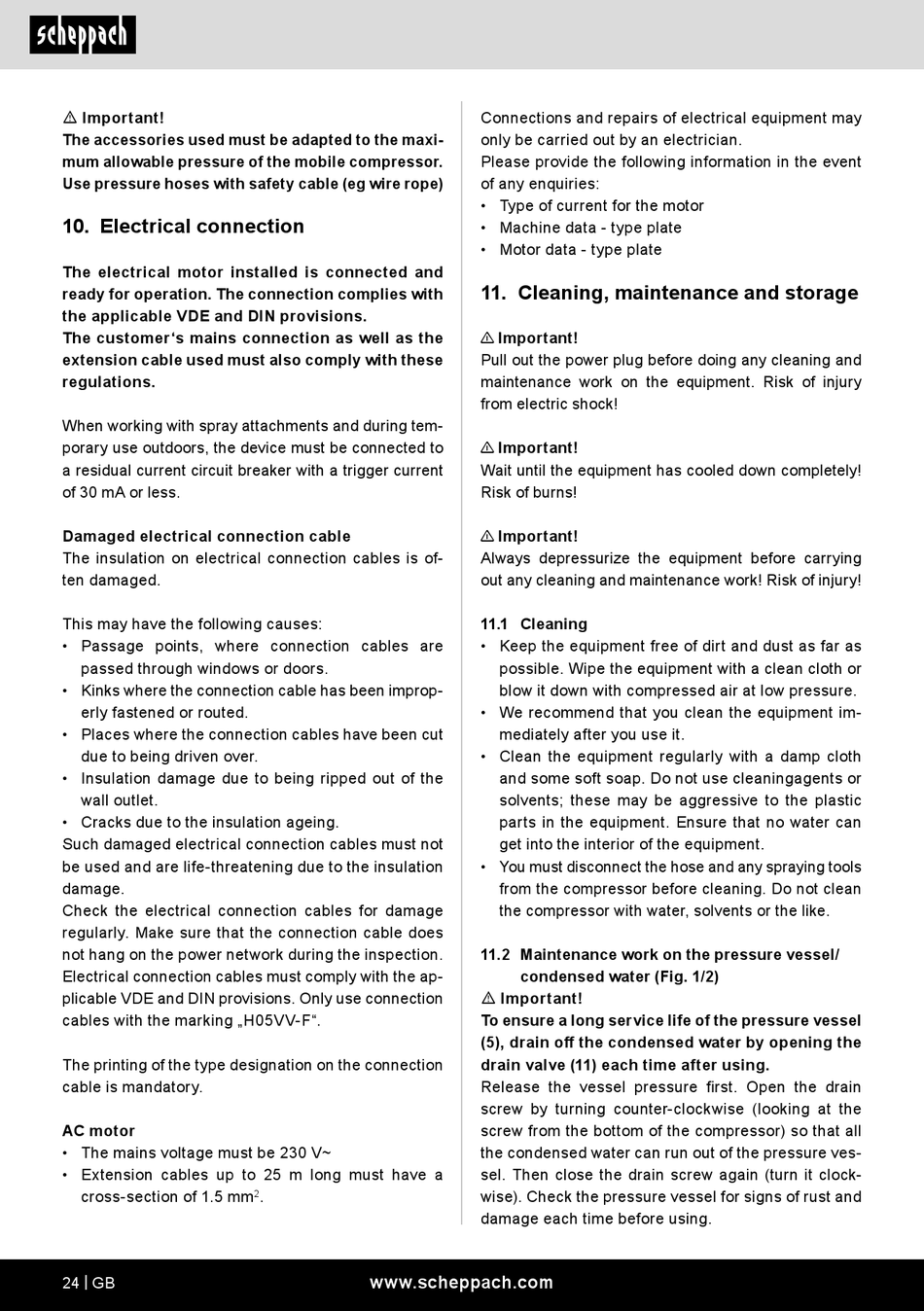

Scheppach Air Case Original Bedienungsanleitung Seite 24

m Important!
The accessories used must be adapted to the maxi-
mum allowable pressure of the mobile compressor.
Use pressure hoses with safety cable (eg wire rope)
10. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions.
The customer's mains connection as well as the
extension cable used must also comply with these
regulations.
When working with spray attachments and during tem-
porary use outdoors, the device must be connected to
a residual current circuit breaker with a trigger current
of 30 mA or less.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Make sure that the connection cable does
not hang on the power network during the inspection.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the marking „H05VV-F".
The printing of the type designation on the connection
cable is mandatory.
AC motor
• The mains voltage must be 230 V~
• Extension cables up to 25 m long must have a
cross-section of 1.5 mm
24 | GB
.
2
www.scheppach.com
Connections and repairs of electrical equipment may
only be carried out by an electrician.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
11. Cleaning, maintenance and storage
n Important!
Pull out the power plug before doing any cleaning and
maintenance work on the equipment. Risk of injury
from electric shock!
n Important!
Wait until the equipment has cooled down completely!
Risk of burns!
n Important!
Always depressurize the equipment before carrying
out any cleaning and maintenance work! Risk of injury!
11.1 Cleaning
• Keep the equipment free of dirt and dust as far as
possible. Wipe the equipment with a clean cloth or
blow it down with compressed air at low pressure.
• We recommend that you clean the equipment im-
mediately after you use it.
• Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaningagents or
solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
• You must disconnect the hose and any spraying tools
from the compressor before cleaning. Do not clean
the compressor with water, solvents or the like.
11.2 Maintenance work on the pressure vessel/
condensed water (Fig. 1/2)
m Important!
To ensure a long service life of the pressure vessel
(5), drain off the condensed water by opening the
drain valve (11) each time after using.
Release the vessel pressure first. Open the drain
screw by turning counter-clockwise (looking at the
screw from the bottom of the compressor) so that all
the condensed water can run out of the pressure ves-
sel. Then close the drain screw again (turn it clock-
wise). Check the pressure vessel for signs of rust and
damage each time before using.
