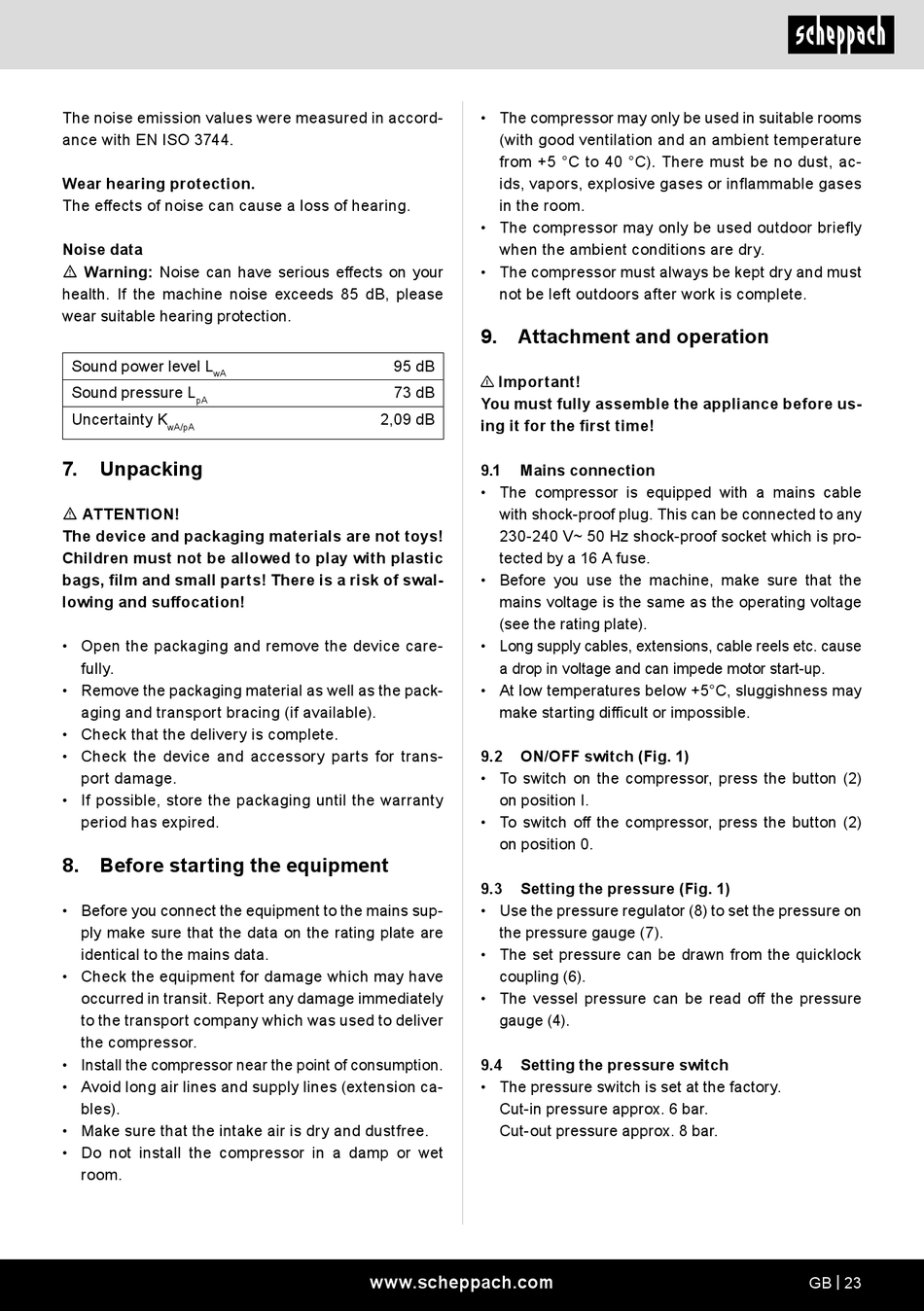

The noise emission values were measured in accord-
ance with EN ISO 3744.
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Noise data
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure L
pA
Uncertainty K
wA/pA
7. Unpacking
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
8. Before starting the equipment
• Before you connect the equipment to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
• Check the equipment for damage which may have
occurred in transit. Report any damage immediately
to the transport company which was used to deliver
the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension ca-
bles).
• Make sure that the intake air is dry and dustfree.
• Do not install the compressor in a damp or wet
room.
• The compressor may only be used in suitable rooms
(with good ventilation and an ambient temperature
from +5 °C to 40 °C). There must be no dust, ac-
ids, vapors, explosive gases or inflammable gases
in the room.
• The compressor may only be used outdoor briefly
when the ambient conditions are dry.
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
9. Attachment and operation
95 dB
n Important!
73 dB
You must fully assemble the appliance before us-
2,09 dB
ing it for the first time!
9.1 Mains connection
• The compressor is equipped with a mains cable
with shock-proof plug. This can be connected to any
230-240 V~ 50 Hz shock-proof socket which is pro-
tected by a 16 A fuse.
• Before you use the machine, make sure that the
mains voltage is the same as the operating voltage
(see the rating plate).
• Long supply cables, extensions, cable reels etc. cause
a drop in voltage and can impede motor start-up.
• At low temperatures below +5°C, sluggishness may
make starting difficult or impossible.
9.2 ON/OFF switch (Fig. 1)
• To switch on the compressor, press the button (2)
on position I.
• To switch off the compressor, press the button (2)
on position 0.
9.3 Setting the pressure (Fig. 1)
• Use the pressure regulator (8) to set the pressure on
the pressure gauge (7).
• The set pressure can be drawn from the quicklock
coupling (6).
• The vessel pressure can be read off the pressure
gauge (4).
9.4 Setting the pressure switch
• The pressure switch is set at the factory.
Cut-in pressure approx. 6 bar.
Cut-out pressure approx. 8 bar.
