INSTALLATION GUIDE
Step 2:

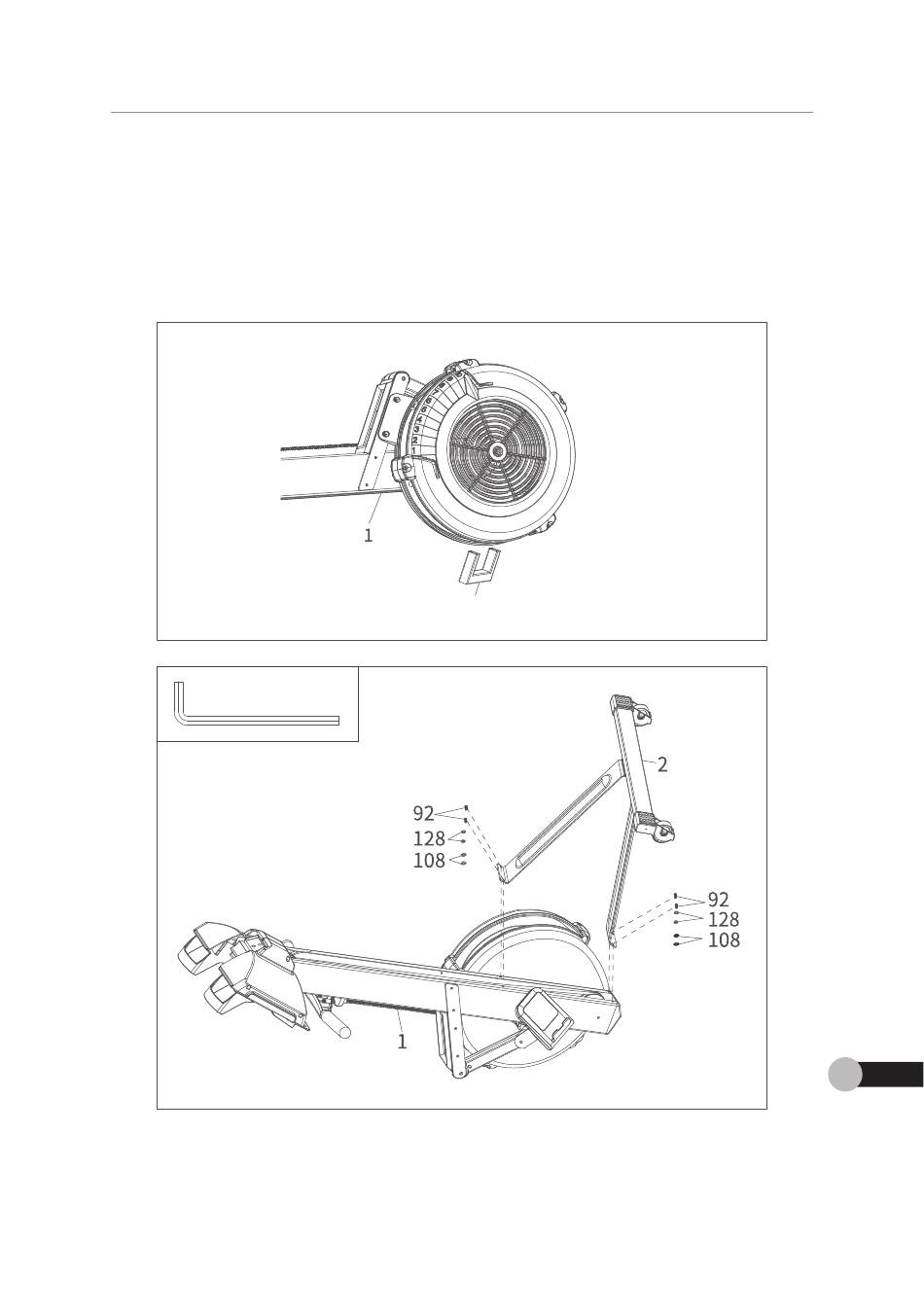

A. As shown in Figure A, remove the packaging auxiliaries tube from the fan of Main
Frame(#1).
B. Assemble the Front Foot Tube(#2) on the Main Frame(#1) with four Flat Head
Hexagon Socket Screws(#92), Flat Waser(#108) and Spring Washer(#128).
NOTE: The wheel of front foot tube is forward.
Figure A
#125 Allen Key4*4 x1
Figure B
Packaging auxiliaries tube
EN
08
