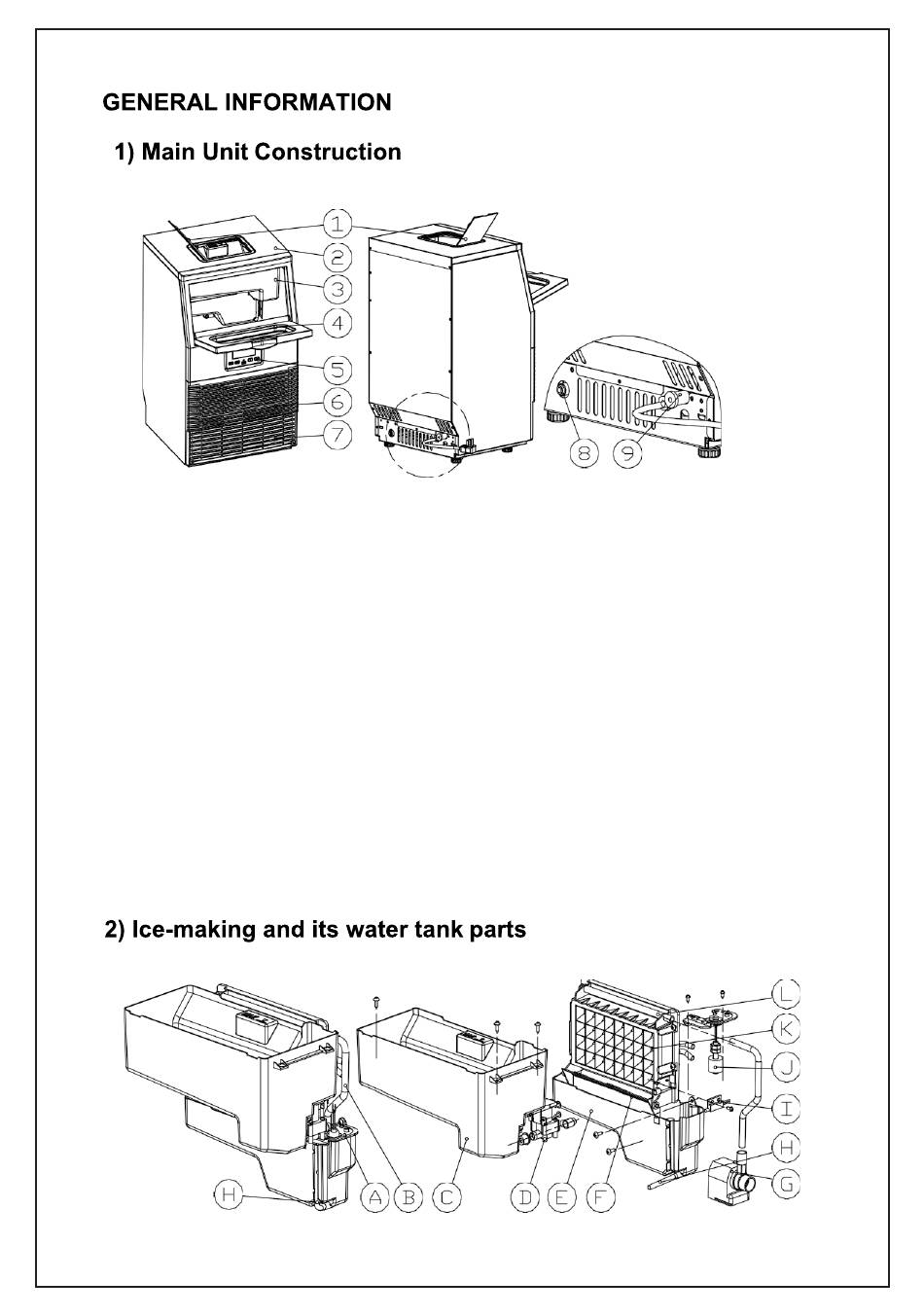

Water filler cap on top
1.
2.Top cover
Ice-making & its water tank assembly: Including ice-making evaporator,
3.
water tank, water charging tank, water control valve,
some detecting parts
Door for ice taking
4.
Operation panel
5.
Air outlet: Must keep the air circulate smoothly, hot air will blow out when
6.
unit running.
Air inlet
7.
Main Water supplying inlet: For connecting the main water supplying pipe
8.
Water draining port: Normal plugged with the cap. When need to drain the
9.
water, unplug the cap. And connect the white drain pipe.
Accessory:
About 2 meters long and white color water drain pipe、
1/4 inches to 1/2 inches water quick connector of the water faucet, ice spoon
¢6.35mm diameter and white color water supplying hose
water pump and
6
