23 Replace table inserts when worn!
24 Avoid overheating the saw teeth.
25 When sawing plastic, avoid melting of the plastic.
Use the appropriate saw blades for this purpose.
Replace damaged or worn saw blades immediately.
When the saw blade overheats, stop the machine.
Allow the saw blade to cool down before using the
machine again.

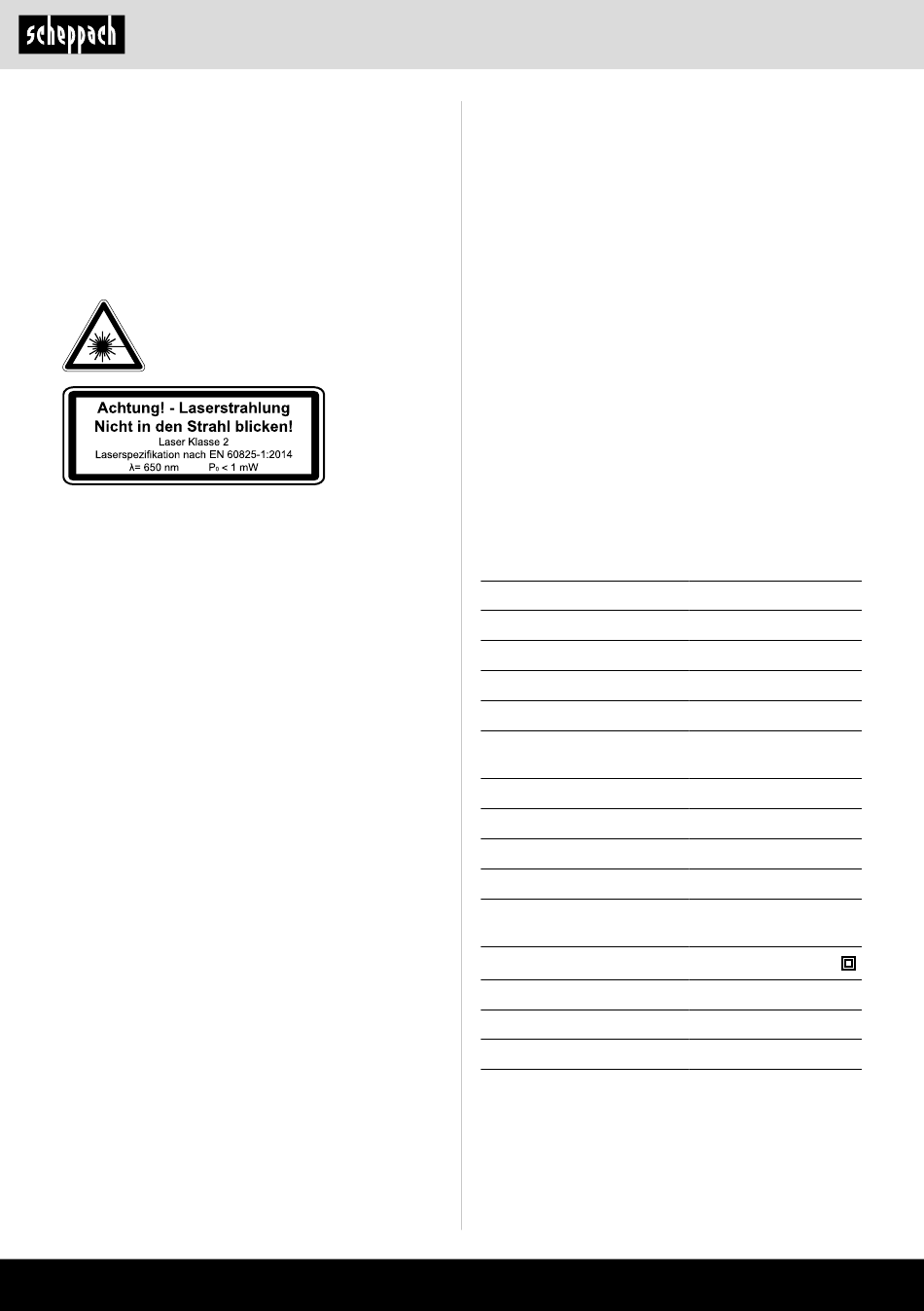

Attention: Laser beam
Do not stare into beam
Laser class 2
Protect yourself and your environment from ac-
cidents using suitable precautionary measures!
• Do not look directly into the laser beam with un-
protected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• If the device is not used for an extended period of
time, the batteries should be removed.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Residual risks
The electric tool has been built according to state-
of-the-art and the recognised technical safety
rules. However, individual residual risks can arise
during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Important in-
formation" and the "Proper use" are observed along
with the whole of the operating instructions.
30 | GB
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the start
button may not be pressed when inserting the plug
in an outlet.
• Use the tool that is recommended in this manual.
This is how to ensure that your machine provides
optimum performance.
• Keep your hands away from the work area, when the
machine is in operation.
• Before performing setting or maintenance work, re-
lease the start button and pull out the power plug.
6. Technical data
AC motor
Nominal power S1
Operating mode
Idle speed n
Carbide saw blade
Number of teeth
Maximum tooth width of the
saw blade
Pivot range
Mitre cut
Saw width at 90°
Saw width at 45°
Saw width at 2 x 45° (dou-
ble mitre cut)
Protection class
Laser class
Laser wavelength
Power of laser
* Operating mode S6, uninterrupted, periodic opera-
tion. The mode comprises of a start-up period, a time
with constant load and an idle time. The operating time
is 10 mins, the relative duty cycle is 25% of the oper-
ating time.
www.scheppach.com
220 - 240 V~ 50Hz
0
ø 210 x ø 30 x 2.6 mm
-45 ° / 0° / +45 °
0° to 45° to the left
1200 Watts
S1: 1200 W
4900 min
-1
24
3 mm
115 x 60 mm
115 x 25 mm
80 x 25 mm
II /
2
650 nm
< 1 mW
