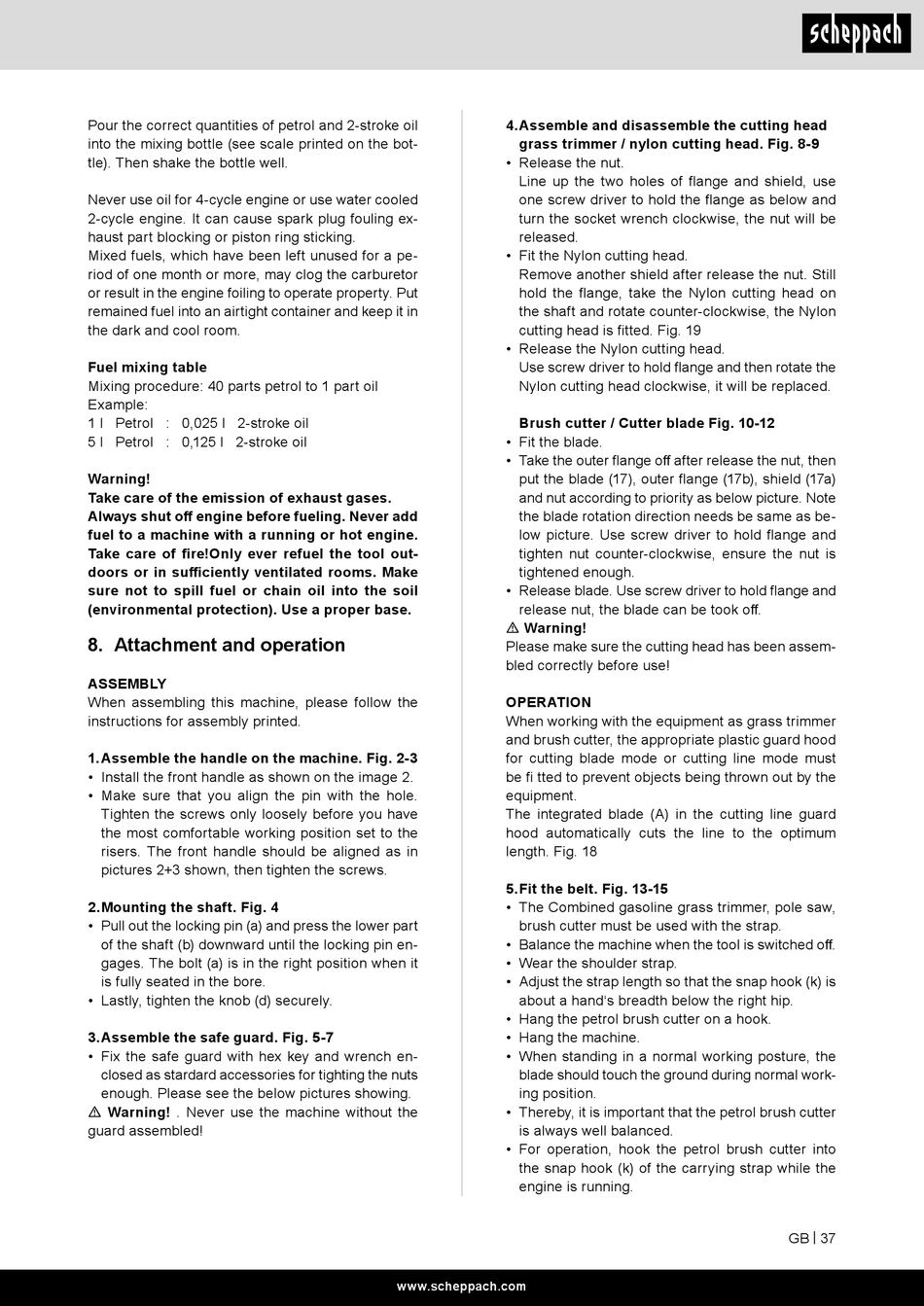

Pour the correct quantities of petrol and 2-stroke oil
into the mixing bottle (see scale printed on the bot-
tle). Then shake the bottle well.
Never use oil for 4-cycle engine or use water cooled
2-cycle engine. It can cause spark plug fouling ex-
haust part blocking or piston ring sticking.
Mixed fuels, which have been left unused for a pe-
riod of one month or more, may clog the carburetor
or result in the engine foiling to operate property. Put
remained fuel into an airtight container and keep it in
the dark and cool room.
Fuel mixing table
Mixing procedure: 40 parts petrol to 1 part oil
Example:
1 l Petrol : 0,025 l 2-stroke oil
5 l Petrol : 0,125 l 2-stroke oil
Warning!
Take care of the emission of exhaust gases.
Always shut off engine before fueling. Never add
fuel to a machine with a running or hot engine.
Take care of fire!Only ever refuel the tool out-
doors or in sufficiently ventilated rooms. Make
sure not to spill fuel or chain oil into the soil
(environmental protection). Use a proper base.
8. Attachment and operation
ASSEMBLY
When assembling this machine, please follow the
instructions for assembly printed.
1. Assemble the handle on the machine. Fig. 2-3
• Install the front handle as shown on the image 2.
• Make sure that you align the pin with the hole.
Tighten the screws only loosely before you have
the most comfortable working position set to the
risers. The front handle should be aligned as in
pictures 2+3 shown, then tighten the screws.
2. Mounting the shaft. Fig. 4
• Pull out the locking pin (a) and press the lower part
of the shaft (b) downward until the locking pin en-
gages. The bolt (a) is in the right position when it
is fully seated in the bore.
• Lastly, tighten the knob (d) securely.
3. Assemble the safe guard. Fig. 5-7
• Fix the safe guard with hex key and wrench en-
closed as stardard accessories for tighting the nuts
enough. Please see the below pictures showing.
m Warning! . Never use the machine without the
guard assembled!
4. Assemble and disassemble the cutting head
grass trimmer / nylon cutting head. Fig. 8-9
• Release the nut.
Line up the two holes of flange and shield, use
one screw driver to hold the flange as below and
turn the socket wrench clockwise, the nut will be
released.
• Fit the Nylon cutting head.
Remove another shield after release the nut. Still
hold the flange, take the Nylon cutting head on
the shaft and rotate counter-clockwise, the Nylon
cutting head is fitted. Fig. 19
• Release the Nylon cutting head.
Use screw driver to hold flange and then rotate the
Nylon cutting head clockwise, it will be replaced.
Brush cutter / Cutter blade Fig. 10-12
• Fit the blade.
• Take the outer flange off after release the nut, then
put the blade (17), outer flange (17b), shield (17a)
and nut according to priority as below picture. Note
the blade rotation direction needs be same as be-
low picture. Use screw driver to hold flange and
tighten nut counter-clockwise, ensure the nut is
tightened enough.
• Release blade. Use screw driver to hold flange and
release nut, the blade can be took off.
m Warning!
Please make sure the cutting head has been assem-
bled correctly before use!
OPERATION
When working with the equipment as grass trimmer
and brush cutter, the appropriate plastic guard hood
for cutting blade mode or cutting line mode must
be fi tted to prevent objects being thrown out by the
equipment.
The integrated blade (A) in the cutting line guard
hood automatically cuts the line to the optimum
length. Fig. 18
5. Fit the belt. Fig. 13-15
• The Combined gasoline grass trimmer, pole saw,
brush cutter must be used with the strap.
• Balance the machine when the tool is switched off.
• Wear the shoulder strap.
• Adjust the strap length so that the snap hook (k) is
about a hand's breadth below the right hip.
• Hang the petrol brush cutter on a hook.
• Hang the machine.
• When standing in a normal working posture, the
blade should touch the ground during normal work-
ing position.
• Thereby, it is important that the petrol brush cutter
is always well balanced.
• For operation, hook the petrol brush cutter into
the snap hook (k) of the carrying strap while the
engine is running.
