4
5
6
1.
IMPORTANT!
When plugging in the gas sensor cable,
ensure that the plug locking mecha-
nism points in the direction of the PC
board edge.
1.
1.
2.
3.
Englisch (US)

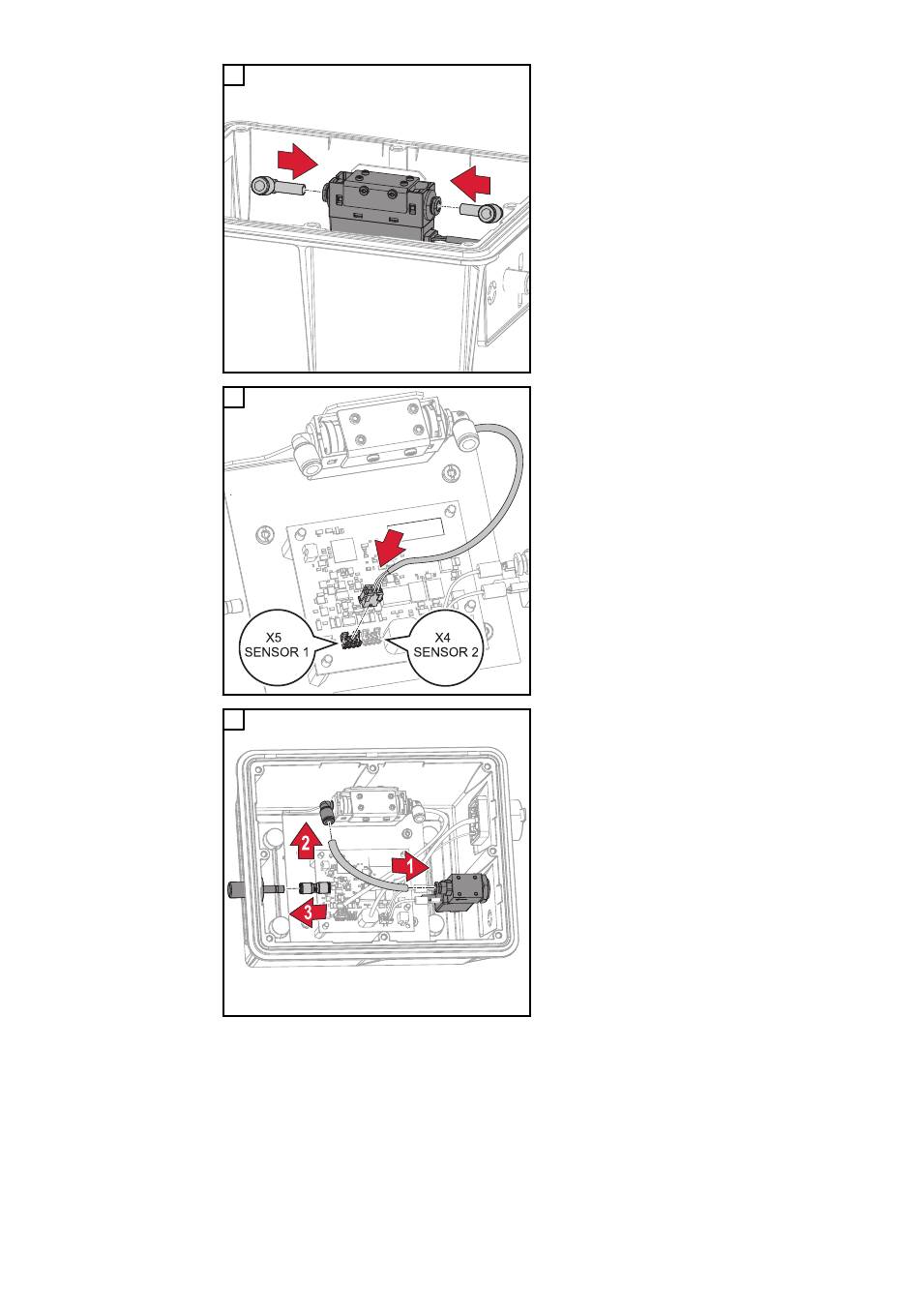

Connect 2 angled connections to
the gas sensor.
Connect the gas sensor cable to
the PC board at "X5 SENSOR 1".
Connect the gas hose to the con-
trol valve.
Connect the gas hose to the gas
sensor.
Connect the plug-in coupling to
the shielding gas connection.
37
