IMPORTANT!
When plugging in the gas sensor cable,
ensure that the plug locking mecha-
nism points in the direction of the PC
board edge.
1.
1.
2.
3.
1.
2.
Englisch (US)

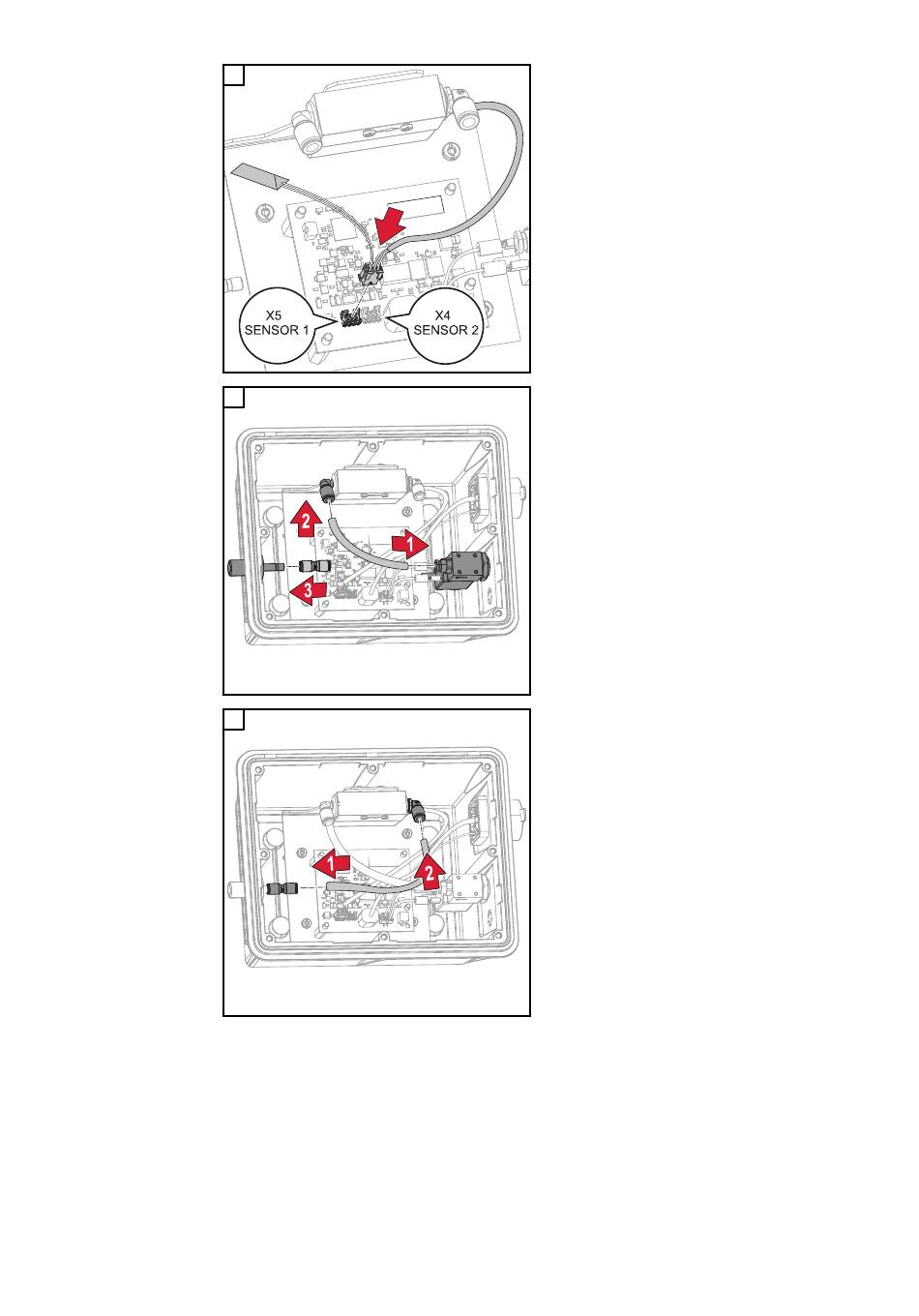

Connect the gas sensor cable to
the PC board at "X5 SENSOR 1".
Connect the gas hose to the con-
trol valve.
Connect the gas hose to the gas
sensor.
Connect the plug-in coupling to
the shielding gas connection.
Plug the second gas hose into the
shielding gas connection.
Connect the second gas hose to
the gas sensor.
