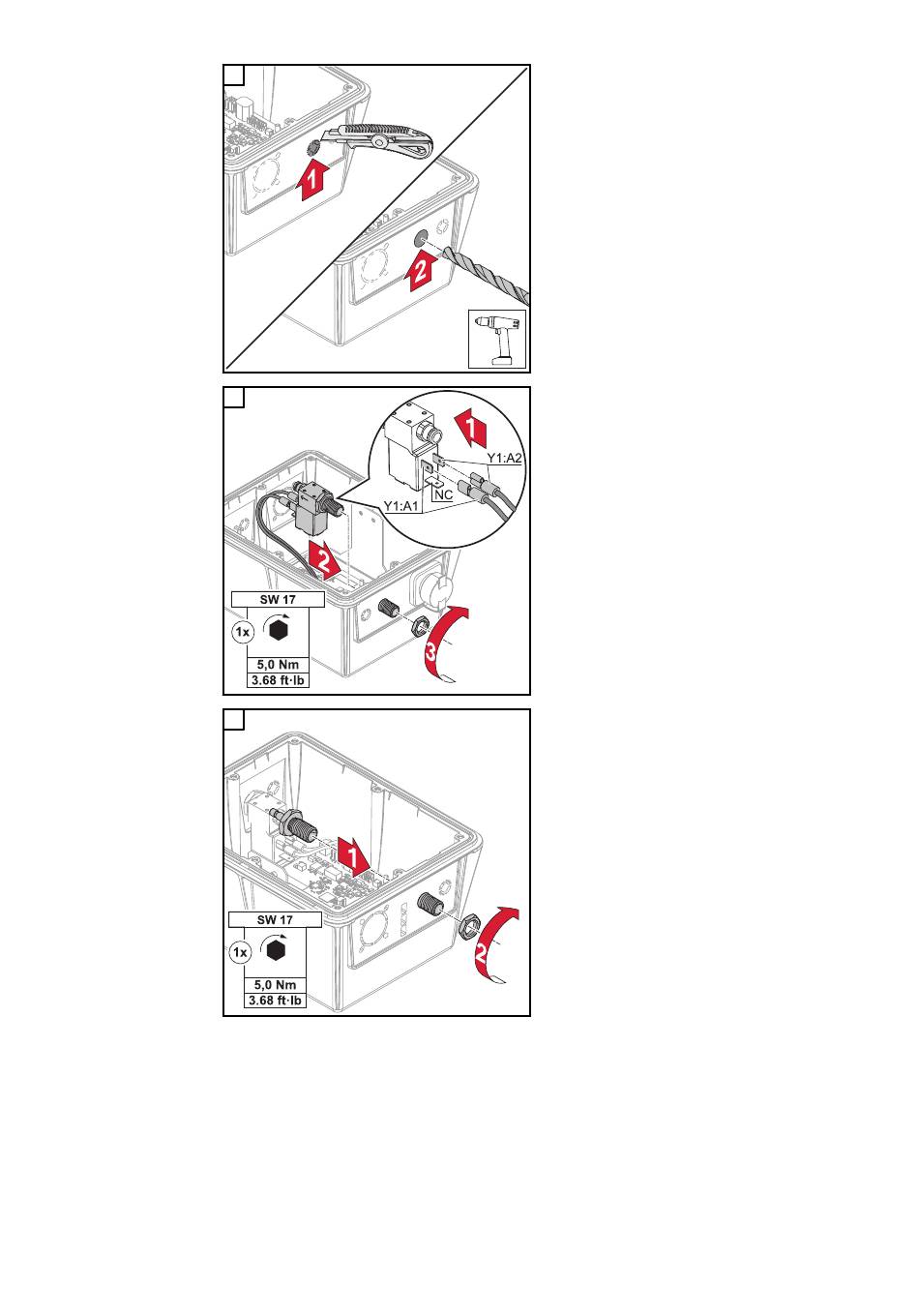

Cut film at position GAS 1 OUT.
Drill a bore with a Ø 14 mm drill.
Connect cable Y1:A1 and Y1:A2 to
the control valve as per the lette-
ring on the cable.
Insert the control valve from insi-
de to outside into the bore at
GAS 1 IN.
Secure the control valve with the
17 mm hexagonal nut.
Insert the shielding gas connection
from inside to outside into the bo-
re at GAS 1 OUT.
Secure the shielding gas connec-
tion with the 17 mm hexagonal
nut.
