o

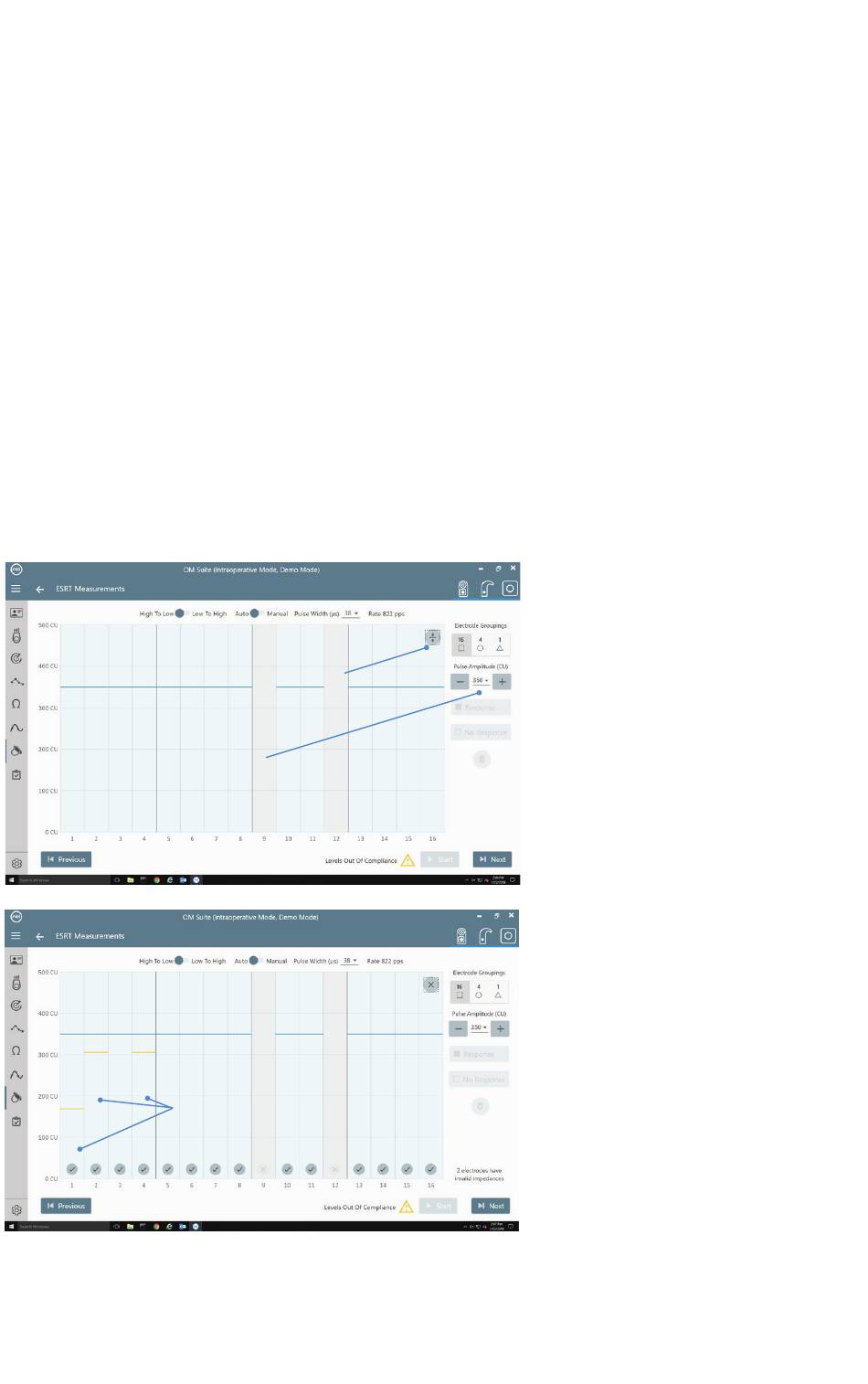

To emphasize which contacts have been selected, the blue line indication the Pulse Am-
plitude only appears for the active Electrode Group. The area on the graph correspond-
ing to the active Electrode Group is also shaded.
o
Clicking on the graph enables the user to change the active Electrode Group, e.g., con-
tacts 1-4 to 5-8.
•
Deleting marked Response/No Response:
o
Response/No Response symbols can be deleted by placing the blue line, current pulse
amplitude line over the symbols that the user desires to delete.
o
The user then clicks on the "trash" button and this opens a list of the Response/No
Response symbols that are covered by the blue line. Clicking on the desired symbol will
result in its deletion.
o
Note, it is possible to partially delete a set of symbols, e.g., deleting 1 of 16 symbols or 4
of 16 symbols. This is due to the fact that the blue line only covers the active Electrode
Group. If it is desired to delete more symbols the line can be moved by changing active
groups or extended by clicking on a larger Electrode Grouping.
•
Click "Next" to advance to Summary if using or use the navigation panel to select the
desired function.
Current
pulse amplitude
View button
Compliance limit
Check
Grayed out contact
symbol to
select contact
19
