Safety Information
RoHS and WEEE
Information concerning Restriction of Hazardous Sub-
stances (RoHS):
This product and its information, meets the requirements of
the RoHS Directive (2011/65/EU).
Information concerning Waste of Electrical and Electronic
Equipment (WEEE):
This product and its information, meets the requirements of
the WEEE Directive (2012/19/EU), and must be handled ac-
cording to the directive.
The product and/or its battery are marked with a crossed
trashcan, see figure below.
The symbol indicates that parts within the product must be
handled in accordance with the WEEE Directive. These parts
are indicated as "WEEE" in the Spare part list, see under Re-
marks.
The entire product, or the WEEE parts, can be sent to your
"Customer Centre" for handling.
For more information, consult the website
http://www.atlascopco.com/.
Choose Products - Links and downloads, and click EU
RoHS and WEEE directives (ENGLISH only).
Installation
Installation
The tool should, via its correct drive unit, be connected to the
mains, 230V/ 50Hz alternatively 115V/ 60Hz, single phase.
See instructions for your drive unit.
Fitting of the tool cable:
• Security check that the cable type is correct
• Align the cable connector using the two asymmetrically
positioned slots on the connector to fit in the heads in the
tool
• Tighten the lock nut
• Security check that the connection is correct by pulling,
pushing and turning the cable connector (there should be
no movement).
Handling
Operating
Make sure that the tool is in correct working order and that
the controller is correctly programmed to avoid unexpected
behaviour from the tool, which may result in operator injury.
Check that the tool is in the correct running direction by
looking at the function light situated above the tool handle.
The soft-start function facilitates entering the screw head and
thread.
The duration of the soft start is adjustable, see the manual for
the drive unit.
4 © Atlas Copco Industrial Technique AB - 9836 2813 00
The tool is equipped with signal lights,
• Green = OK tightening.
• Yellow = Warning – low torque.
• Red = Warning – high torque.
• Orange = Function indicator
• Blue = Function indicator

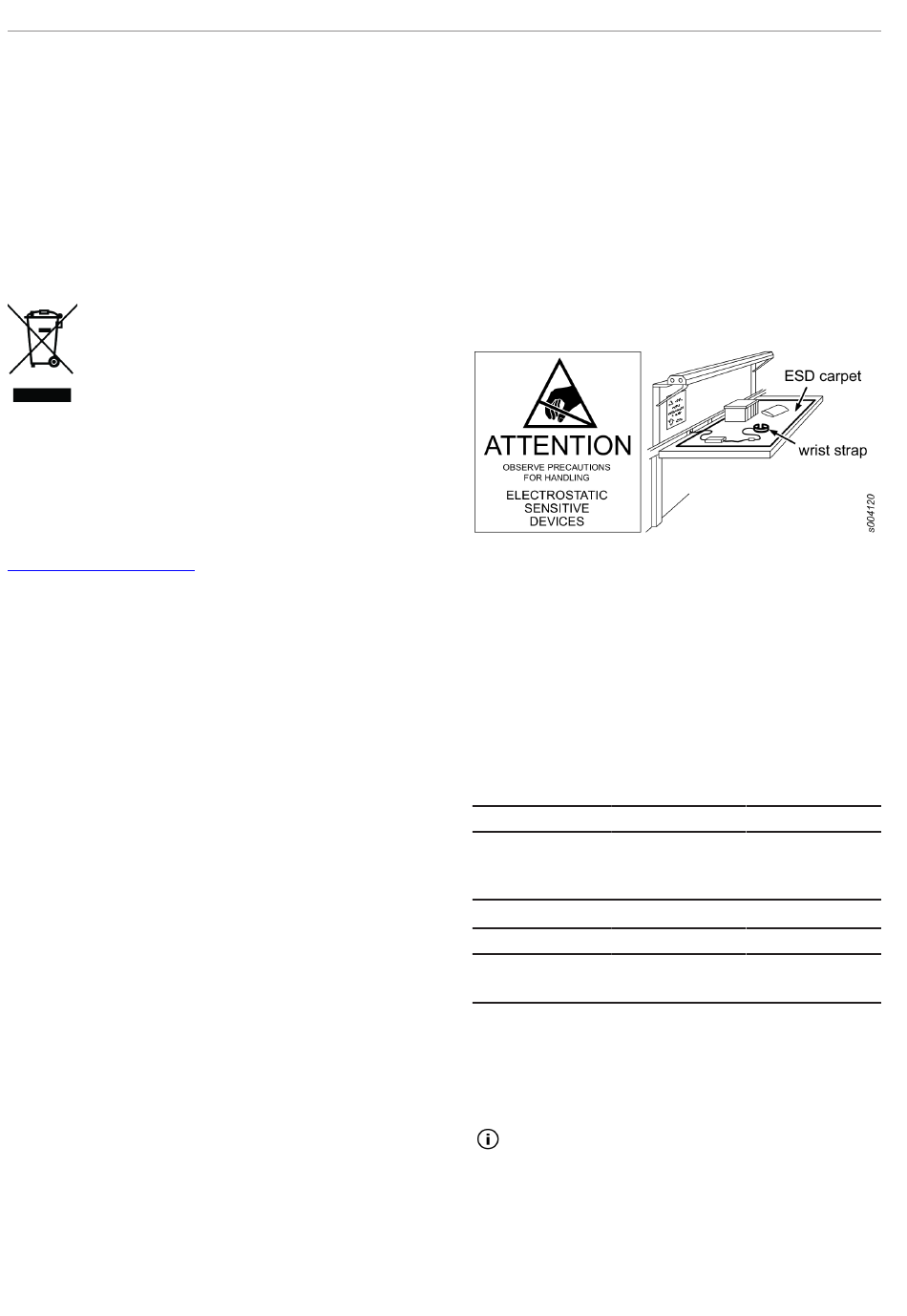

Preventing ESD problems
The components inside the tool and controller are sensitive to
electrostatic discharge. To avoid future malfunction, make
sure that service and maintenance is carried out in an ESD
approved work environment. The figure below shows an ex-
ample of an appropriate service work station.
Maintenance
Lubrication
Planetary gears, needle bearings and ball bearings must be
lubricated with soft grease containing molybdenumdisul-
phide at the regular overhaul of the tool. For maximum ser-
vice life, Molykote BR 2 Plus is recommended.
Take care to use specified quantity. Too little as well as too
much will cause problems.
Lubricating guide
Brand Cable nut
Molycote
CRC Litium grease No.
3020
Brand Angle gears
Molycote Longterm 2 plus
Almagard
Overhaul
Service must only be carried out by qualified personnel who
have access to the Service instruction and/or have been
trained for service on Tensor tools.
The electric motor is a sealed unit and may under no cir-
cumstances be opened by anyone else than Atlas Copco
Industrial Technique AB!
If you decide that the electric motor is defect or in need of
service, return the complete motor unit to Atlas Copco Indus-
trial Technique for replacement.
ETP SL21-01-i06-PS
Gears
BR2 Plus
General purpose
LE 3751
