Start-up

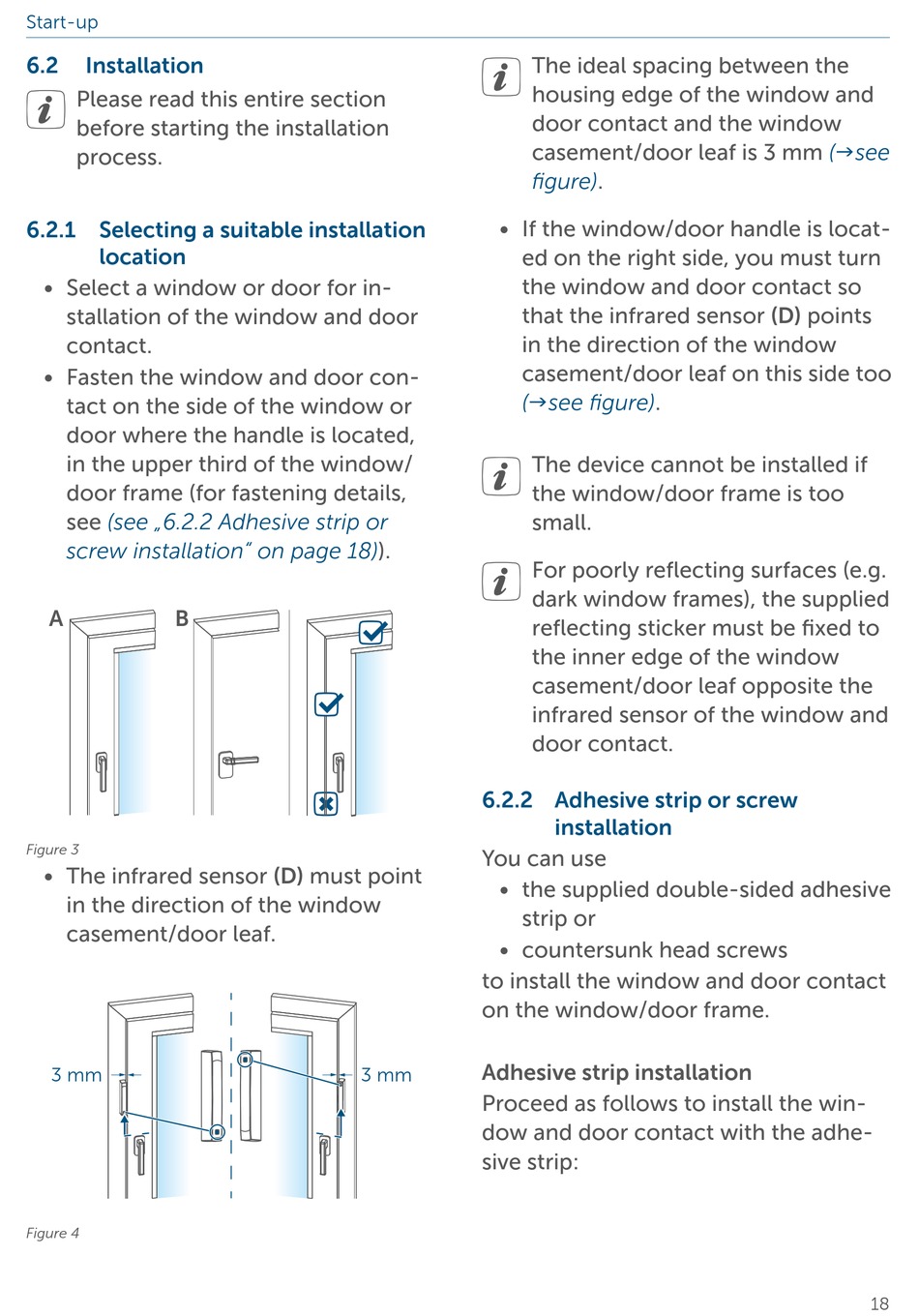

6.2 Installation
Please read this entire section
before starting the installation
process.
6.2.1 Selecting a suitable installation
location
• Select a window or door for in-
stallation of the window and door
contact.
• Fasten the window and door con-
tact on the side of the window or
door where the handle is located,
in the upper third of the window/
door frame (for fastening details,
see
(see „6.2.2 Adhesive strip or
screw installation" on page
A B
Figure 3
• The infrared sensor (D) must point
in the direction of the window
casement/door leaf.
3 mm
Figure 4
• If the window/door handle is locat-
18)).
6.2.2 Adhesive strip or screw
You can use
• the supplied double-sided adhesive
• countersunk head screws
to install the window and door contact
on the window/door frame.
Adhesive strip installation
3 mm
Proceed as follows to install the win-
dow and door contact with the adhe-
sive strip:
The ideal spacing between the
housing edge of the window and
door contact and the window
casement/door leaf is 3 mm
figure).
ed on the right side, you must turn
the window and door contact so
that the infrared sensor (D) points
in the direction of the window
casement/door leaf on this side too
(see figure).
The device cannot be installed if
the window/door frame is too
small.
For poorly reflecting surfaces (e.g.
dark window frames), the supplied
reflecting sticker must be fixed to
the inner edge of the window
casement/door leaf opposite the
infrared sensor of the window and
door contact.
installation
strip or
(see
18
