Coupling the device and bed
1 Lock the castors on the bed.
2 Bring the device-side coupling part and the bed-side coupling
part to the same height. Adjust the height of the bed or
reposition the device-side coupling part on the trolley column
for this purpose.
The height compensation mechanism can only compensate small
differences during transportation if the device-side coupling part
and the bed-side coupling part are at the same height.
A

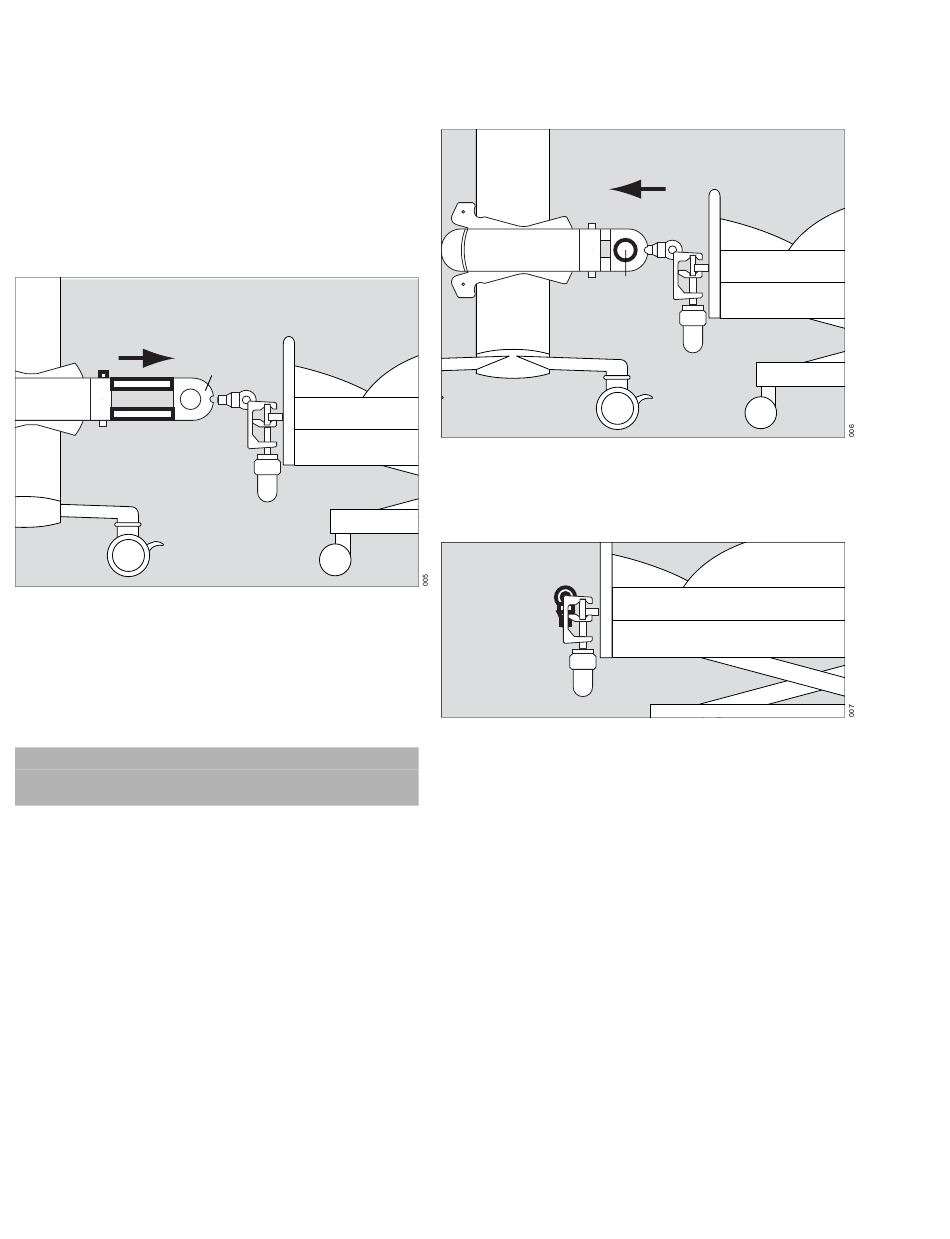

3 Adjust the distance between the device and the bed. To do
this, press the release button (A) and set the distance. Ensure
free movement of the castors on the bed.
4 Push the device towards the bed until the coupling connector
(B) engages audibly in the coupling head (C) of the device-
side coupling part.
5 Ensure that the two coupling parts are firmly attached by gently
pulling apart.
WARNING
Risk of tipping over
Do not adjust the height of the bed following coupling!
8
C
B
Uncoupling the device and bed
A
1 Press and hold the release button (A) on the device-side
coupling part.
2 Detach the device from the bed.
In uncoupled state
B
3 Fold the coupling connector of the bed-side coupling part (B)
upwards or downwards in order to prevent injuries caused by
projecting parts.
