The following instructions are intended for a qualified fitter
to guide him/her along the installation, adjustment and tech-
nical maintenance procedures as correctly as possible and
in full compliance with the applicable norms in force.
Important : unplug the hob before all operations.
Installation
• This hob can be built into a worktop simply by cut-
ting out the corresponding slot.
• The worktop must be made with a material designed
to withstand a temperature of approximately 100°C.
• The hob must be positioned at a minimum distance
of 40 mm from the back wall and 600 mm from any
other vertical surfaces, in order to allow adequate ven-
tilation and to prevent the surfaces around the appli-
ance from overheating.
• If you wish to install the hob on top of an oven, the
latter must be fitted with a cooling fan.
• Try to avoid installing the hob on top of a dishwasher;
if this is unavoidable, place a watertight separating el-
ement between the two appliances.
Installation and fastening
Fastening
Very important: It is vital that you ensure the glass ce-
ramic hob is built into a perfectly flat supporting surface.
Deformations due to improper fastening could alter the
characteristics of the hob and compromise its perform-
ance.

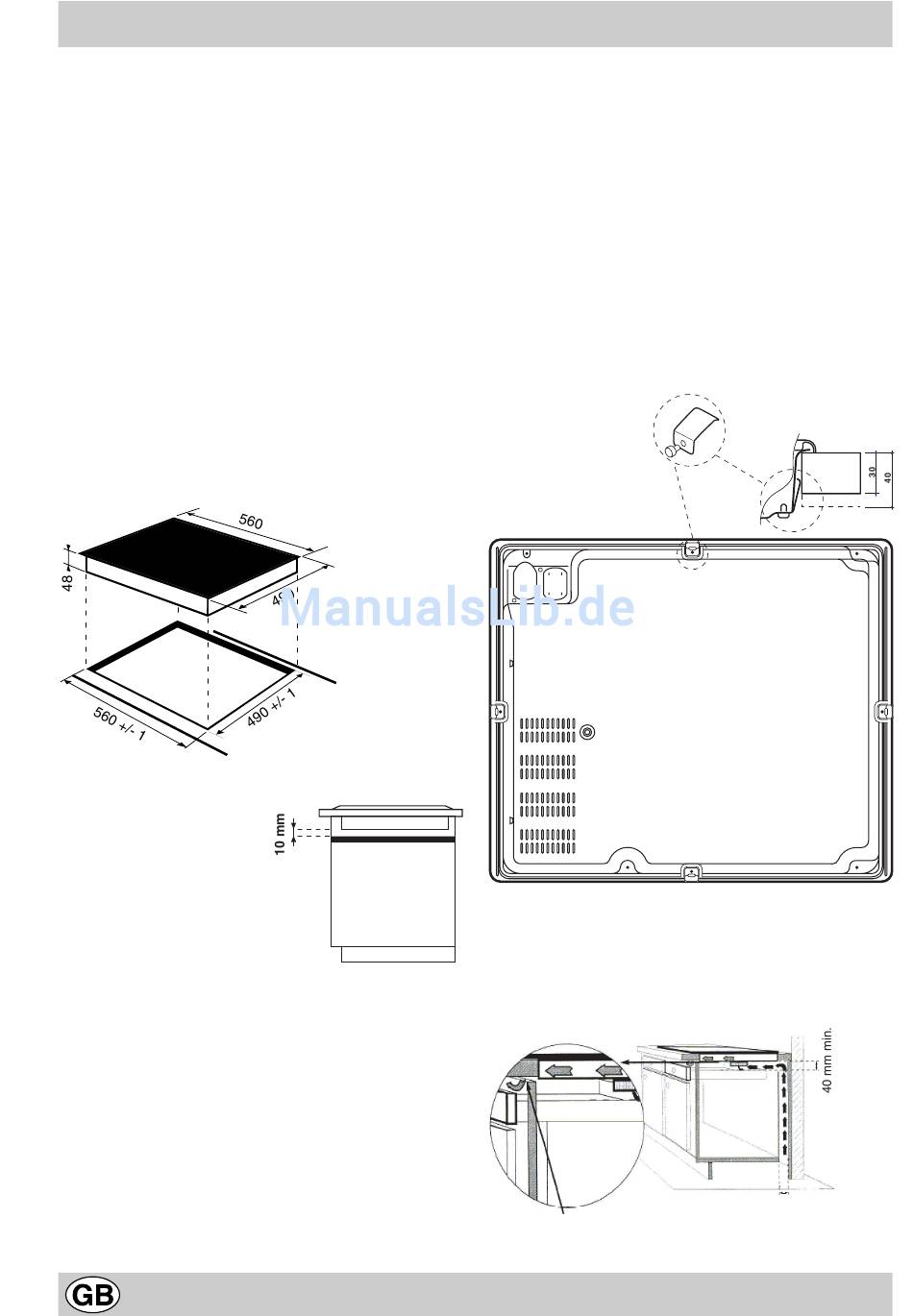

The fastening springs are fastened by screws (see dia-
gram).
It is vital that these screws be kept accessible at all
times.
Insert the hob into the cut-out slot, applying pressure all
along the perimeter of the hob frame so that the latter
adheres fully to the worktop.
Distance to
keep between the
cut-out slot and
the cabinet
Above an empty cabinet or a drawer
A space of at least 40 mm, or an opening of 5 mm on
the width measurement of the cabinet, should be created.
28
REAR SPRING ASSEMBLY
HOB FROM BELOW
Opening of at least 5 mm
on the overall width
measurement of the surface.
FRONT OF HOB
KITCHEN
WORKTOP
40mm
