Electrical connection
• The electrical safety of this appliance can only be
guaranteed if the latter is correctly and efficiently
earthed, in compliance with regulations on electrical
safety. Always ensure that this vital safety measure
has been taken. If you have any doubts, call in a quali-
fied technician to check the electrical system thoroughly.
• The manufacturer denies all responsibility for dam-
age resulting from a system which has not been earthed
correctly.
• Before powering the appliance, check whether the
technical characteristics featured on the appliance data
plate correspond with those of the mains electrical sys-
tem.
• Check that the current load of the mains supply and
of the power sockets is suitable for the maximum power
of the appliance, indicated on the appliance data plate.
If in doubt, contact a qualified professional.
Disconnect the appliance from the electricity supply
before all operations.
Connect your hob to the electrical system by means of a
junction box: if the appliance is connected permanently
to the mains, an omnipolar circuit breaker, accessible if
necessary, with a minimum contact opening of 3 mm should
be installed.
Valid only for models with a power supply cable
Some models are supplied with a single-phase power sup-
ply cable, and should consequently only be connected to
the single-phase mains. Observe the wire colours, as indi-
cated in the diagram attached.
Electrical connections
FR-BE-AT-DE-GR-ES-IL-
IT-NZ-PT-GP-CH-MA-LU-
N L
IE-FI-SE-IS-GB-NL-DK
230V - 1+N~ 50Hz
BL BR
CY-MT-AU-NZ-KW
240V - 1+N~ 50Hz
N L
FR-BE-NO
230V - 2 ~ 50Hz
BL BR
BR=BRUN,BL=BLEU BR=BRAUN, BL=BLAU
BR=BRUIN, BL=BLAUW BR=BROWN, BL=BLUE
* Application of the simultaneity coefficient in accordance with
cei 60335-2-6 norm
Valid only for models without a power supply cable
Some models are not fitted with a power supply cable, as
the cable should be sized according to the type of electrical
connection in use (see connection table below). To connect
the cable, proceed as follows:

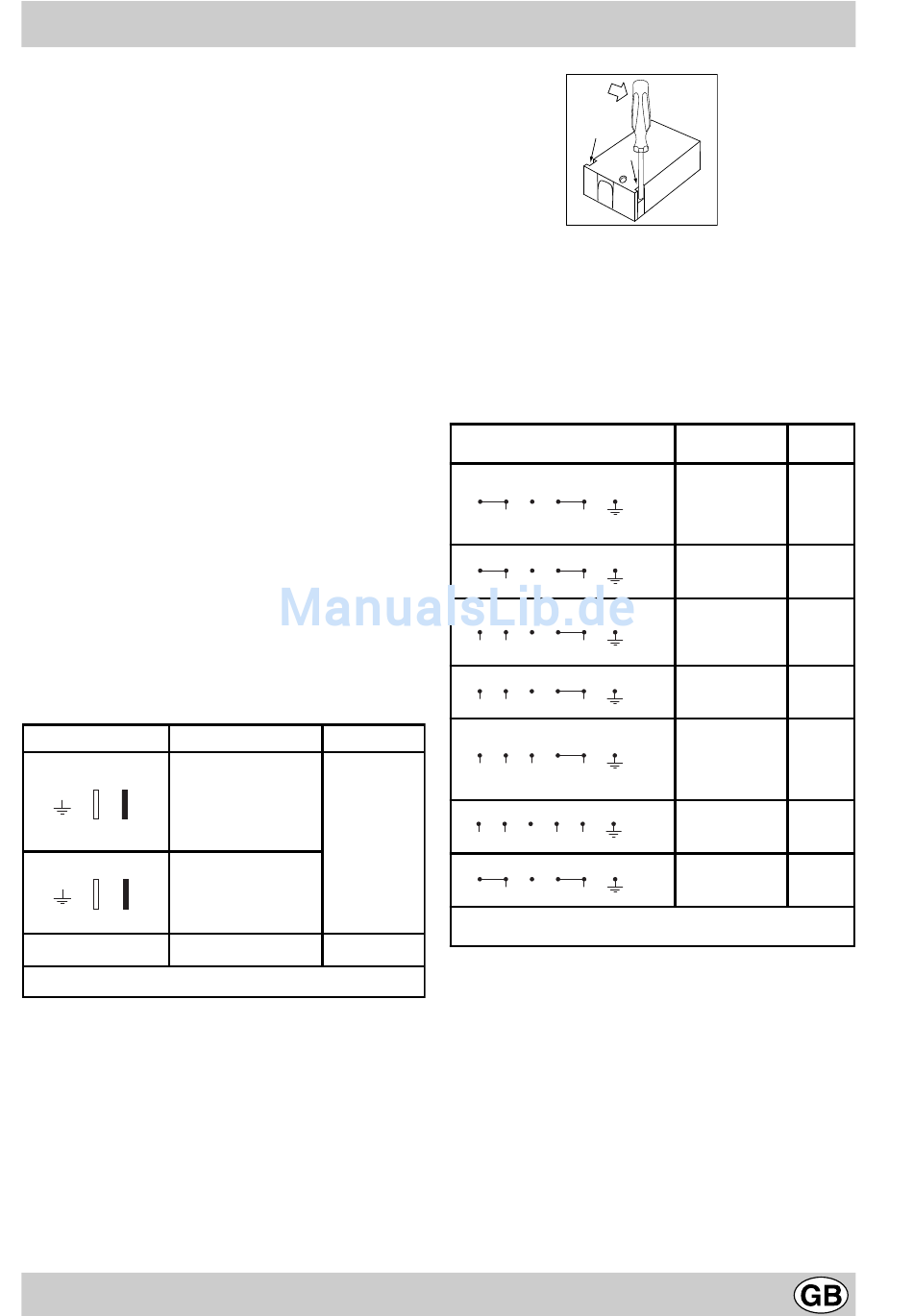

• Using a screwdriver, prise on the side tabs of the terminal
board cover;
• Pull open the cover of the terminal board.
To install the cable, proceed as follows:
• unscrew the wire clamp screw and the contact screws.
• to make the desired electrical connection (see table),

Technical characteristics

Voltage, Frequency Fuses, Sections
25A *
2,5 mm²
use the jumpers housed inside the box. Position the
power supply cable wires according to the indications
in the table.
• once the connections have been made, tighten all the
terminal screws fully.
• Fasten the supply cable in place with the clamp and
close the cover of the terminal board.
Electrical connections
1 2 3 4 5
L N
1 2 3 4 5
L1 L2
1 2 3 4 5
L1 L2 N
1 2 3 4 5
L1 L2 L3
1 2 3 4 5
L1 L2 L3 N
1 2 3 4 5
L1 L2 N1 N2
1 2 3 4 5
L N
* Application of the simultaneity coefficient in accordance with
cei 60335-2-6 norm
Voltage, Fuses,
Frequency Sections
FR-AT-BE-DE-GP--
ES-IE-IL-IS-IT-LU-
25 A*
RE-FI-GB-GR-PT--
2,5 mm²
SE-MA-NZ
230V-1+N~50 Hz
FR-BE-NO
25 A*
2,5 mm²
230V-2~50/60 Hz
FR-BE-CH-DE-AT--
ES-IL-IT-NZ-PT- 16 A*
MA- LU-SE-IS-NL 1,5 mm²
400V2-N~50 Hz
FR-BE-NO
16 A*
1,5 mm²
230V3~50 Hz
FR-AT-BE-DE-ES-
IL-IS-IT-LU-PT-SE
16 A*
-MA-NZ-CH-DK-N-
1,5 mm²
L
400V3+N~50 Hz
NL
16 A*
1,5 mm²
230V2+2-N~50 Hz
CY-AU-NZ-KW-MT
25 A*
2,5 mm²
240V-1+N~50 Hz
