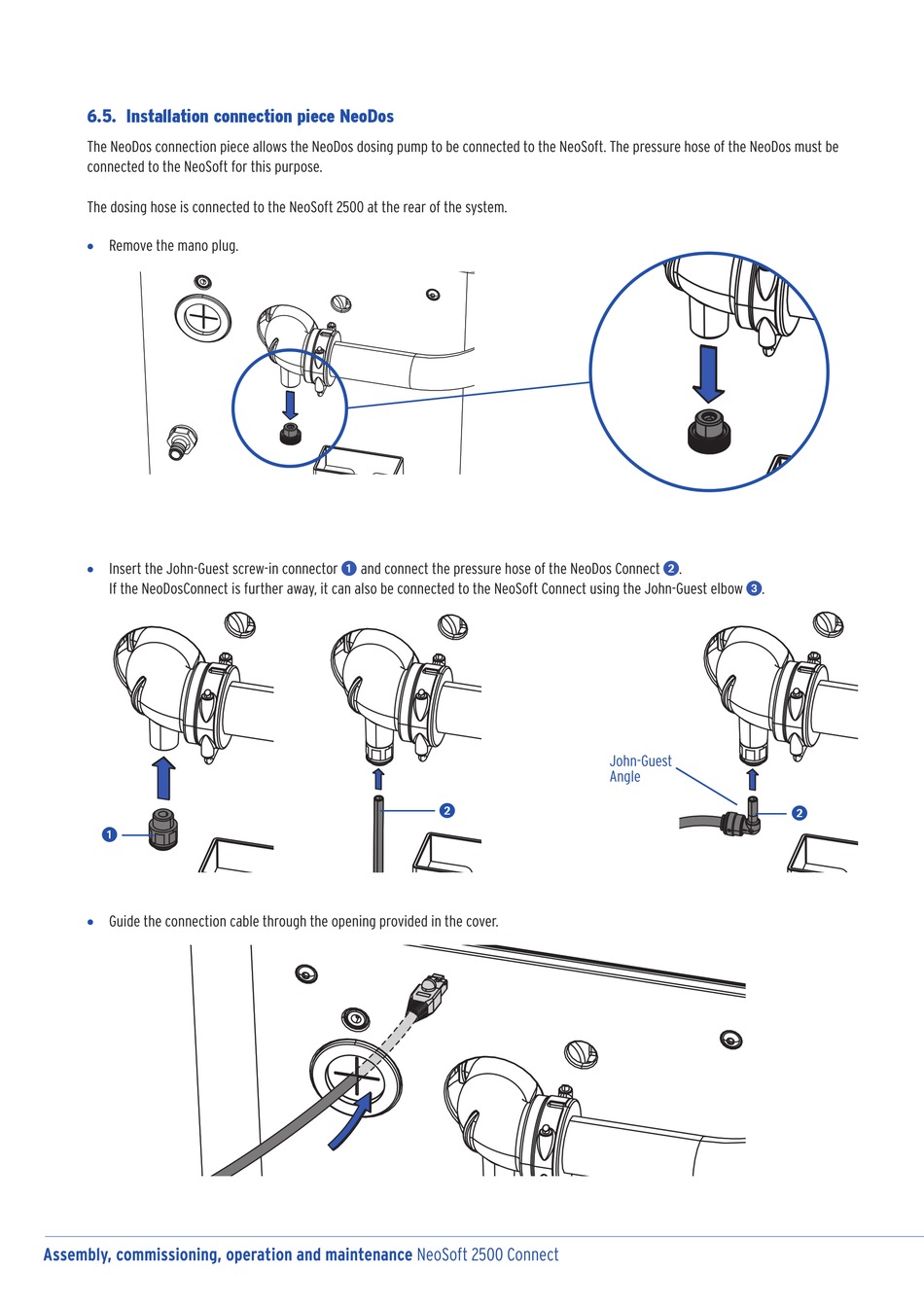

6.5. Installation connection piece NeoDos
The NeoDos connection piece allows the NeoDos dosing pump to be connected to the NeoSoft. The pressure hose of the NeoDos must be
connected to the NeoSoft for this purpose.
The dosing hose is connected to the NeoSoft 2500 at the rear of the system.
•
Remove the mano plug.
•
Insert the John-Guest screw-in connector
If the NeoDosConnect is further away, it can also be connected to the NeoSoft Connect using the John-Guest elbow
1
•
Guide the connection cable through the opening provided in the cover.
Assembly, commissioning, operation and maintenance NeoSoft 2500 Connect
1
and connect the pressure hose of the NeoDos Connect
2
2
.
.
3
John-Guest
Angle
2
