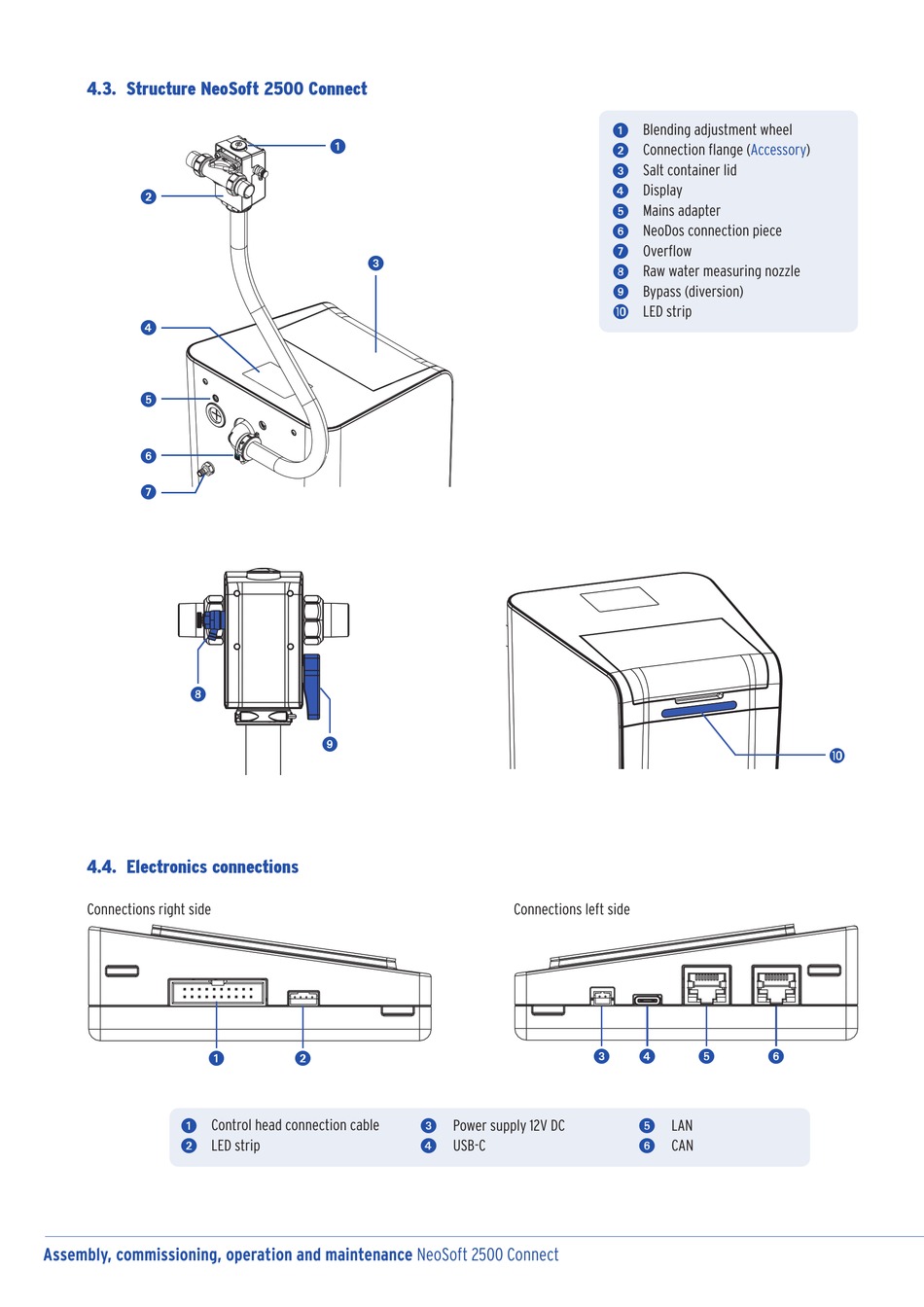

4.3. Structure NeoSoft 2500 Connect
2
4
5
6
7
8
4.4. Electronics connections
Connections right side
1
Control head connection cable
1
LED strip
2
Assembly, commissioning, operation and maintenance NeoSoft 2500 Connect
1
3
9
2
Power supply 12V DC
3
USB-C
4
Blending adjustment wheel
1
Connection flange (Accessory)
2
Salt container lid
3
Display
4
Mains adapter
5
NeoDos connection piece
6
Overflow
7
Raw water measuring nozzle
8
Bypass (diversion)
9
LED strip
J
Connections left side
3
4
LAN
5
CAN
6
J
5
6
