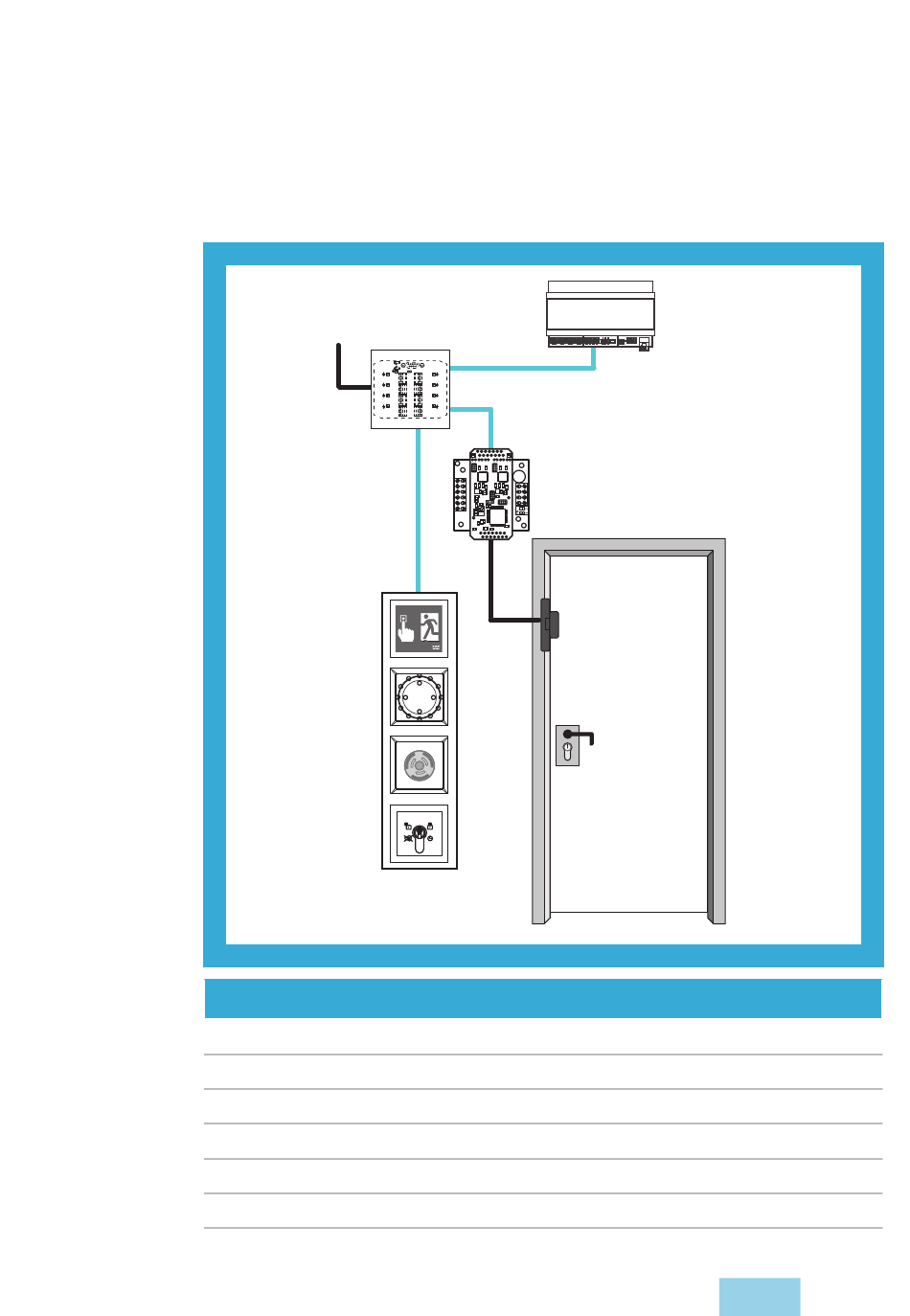

Fig. 4 :
Hi-O Technology™
door wiring with
distributor
Tab. 9 :
Hi-O Technology™
door wiring with
distributor
24 VDC
Hi-O Technology™ – Door wiring with distributor
Maximum total line length
Maximum single line length
Maximum branch connection line length 10 m
Minimum cable cross-section
Terminating resistor
Topology
50 m
10 m
0.5 mm²
120 Ω, activate at distributor
Star form to distributor
