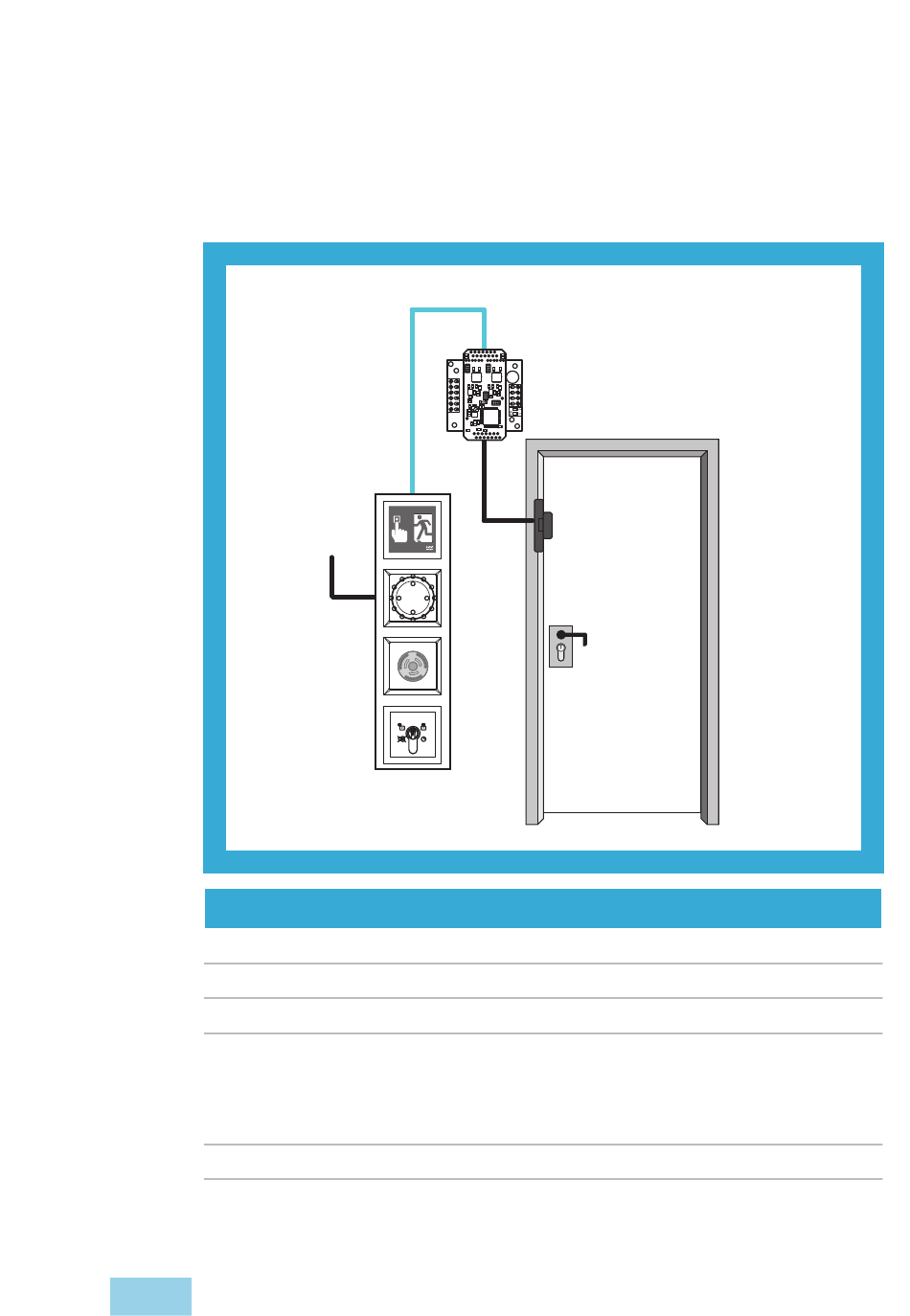

Fig. 3 :
Hi-O Technology™
door wiring
Tab. 8 :
Hi-O Technology™
door wiring
EN
28
24 VDC
Hi-O Technology™ – Door wiring
Maximum single line length
Maximum branch connection line length 10 m
Minimum cable cross-section
Terminating resistor
Topology
10 m
0.5 mm²
120 Ω, activate as close to centre as
possible,
in this example on
ePED ® emergency opening module
Star or linear topology
