effeff ePED Hi-O Technology Bus Installationsanleitung Seite 26

I
Tab. 6 :
Colour codes for
wiring
Tab. 7 :
Maximum number
of addresses and
devices
EN
26

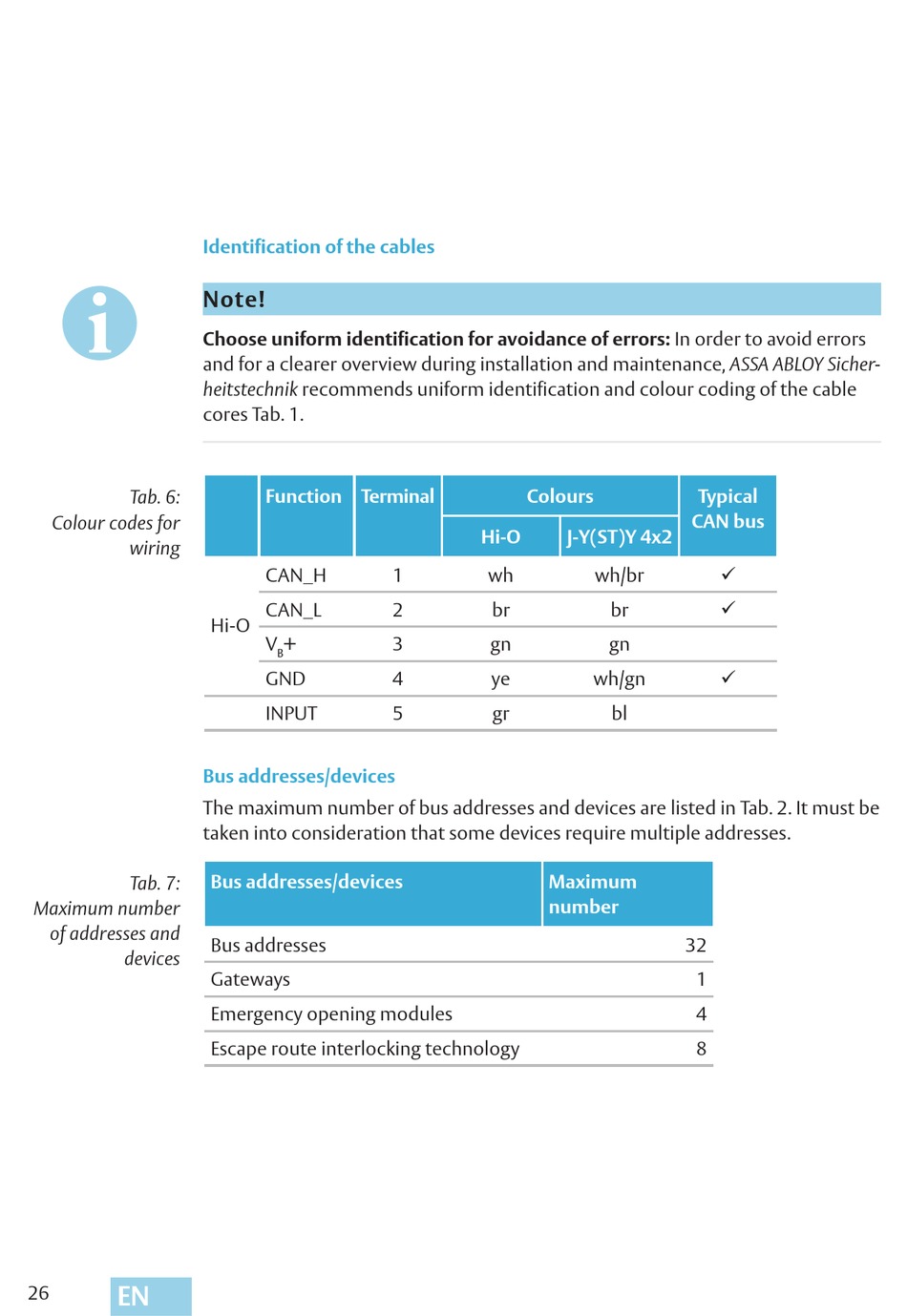

Identification of the cables
Note!
Choose uniform identification for avoidance of errors: In order to avoid errors
and for a clearer overview during installation and maintenance, ASSA ABLOY Sicher-
heitstechnik recommends uniform identification and colour coding of the cable
cores Tab. 1.
Function Terminal
CAN_H
CAN_L
Hi-O
V +
B
GND
INPUT
Bus addresses/devices
The maximum number of bus addresses and devices are listed in Tab. 2. It must be
taken into consideration that some devices require multiple addresses.
Bus addresses/devices
Bus addresses
Gateways
Emergency opening modules
Escape route interlocking technology
Colours
Hi-O
1 wh
2 br
3 gn
4 ye
5 gr
Maximum
number
Typical
CAN bus
J-Y(ST)Y 4x2

wh/br

br
gn

wh/gn
bl
32
1
4
8
