MaxiDisplay 3
Installation
Installation requirements
The unit should be mounted vertically (±20°) on a surface that can withstand its weight.
Installation instructions
Mounting the display
Mount the display using the four screw insets at the back panel. Any Vesa holder or equivalent with 100
mm between the holes can be used.
NOTICE Make sure the screws do not protrude more then 5 mm from the mount, to avoid damaging the
electronics.
NOTICE Make sure to leave sufficient space for the WLAN antenna when mounting the dispaly against a
wall.

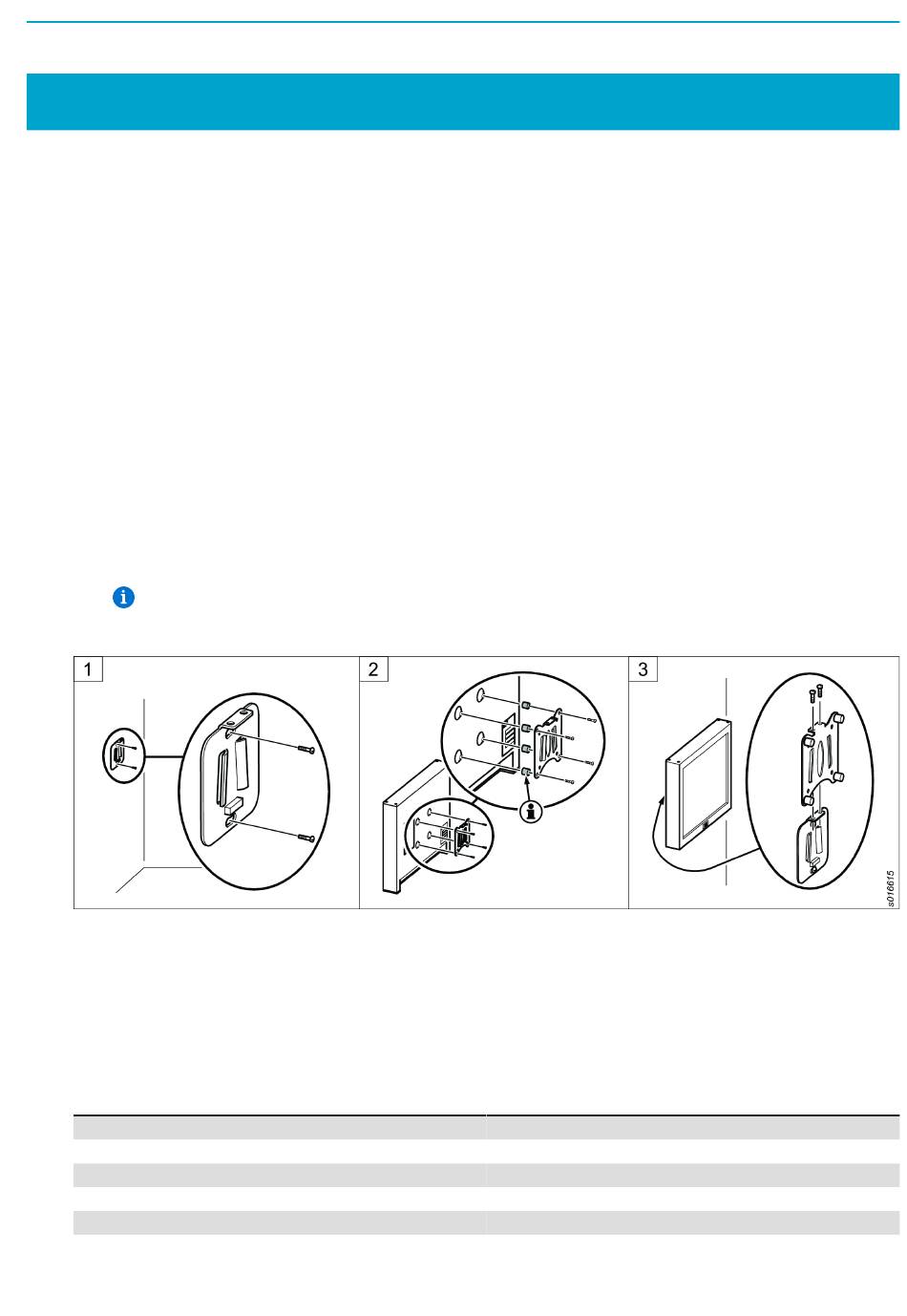

The supplied holder is mounted as follows:
1.
Mount the wall part on a suitable wall.
2.
Mount the display part to the inserts at the back panel using the supplied screws and spacers. Do not
use any washers.
Make sure to use the spacers, to avoid damaging the electronics.
3.
Hang the display on the wall part and secure it using the supplied screws..
Connecting the display
1.
Mount the WLAN antenna to connector (A).
2.
Connect the power supply to connector (C).
3.
Connect other requipment as desired.
4.
Secure all cables with the cable clamps provided.
The following connectors are available:
A
B
C
D
E
F
EN
© Atlas Copco Industrial Technique AB - 9836 7057 00
WLAN antenna
Microphone in
Power supply
Gigabit LAN ports
Line out
COM ports
Installation
