MSA213C-SA02
20
Commissioning
WARNING
NOTICE
NOTICE

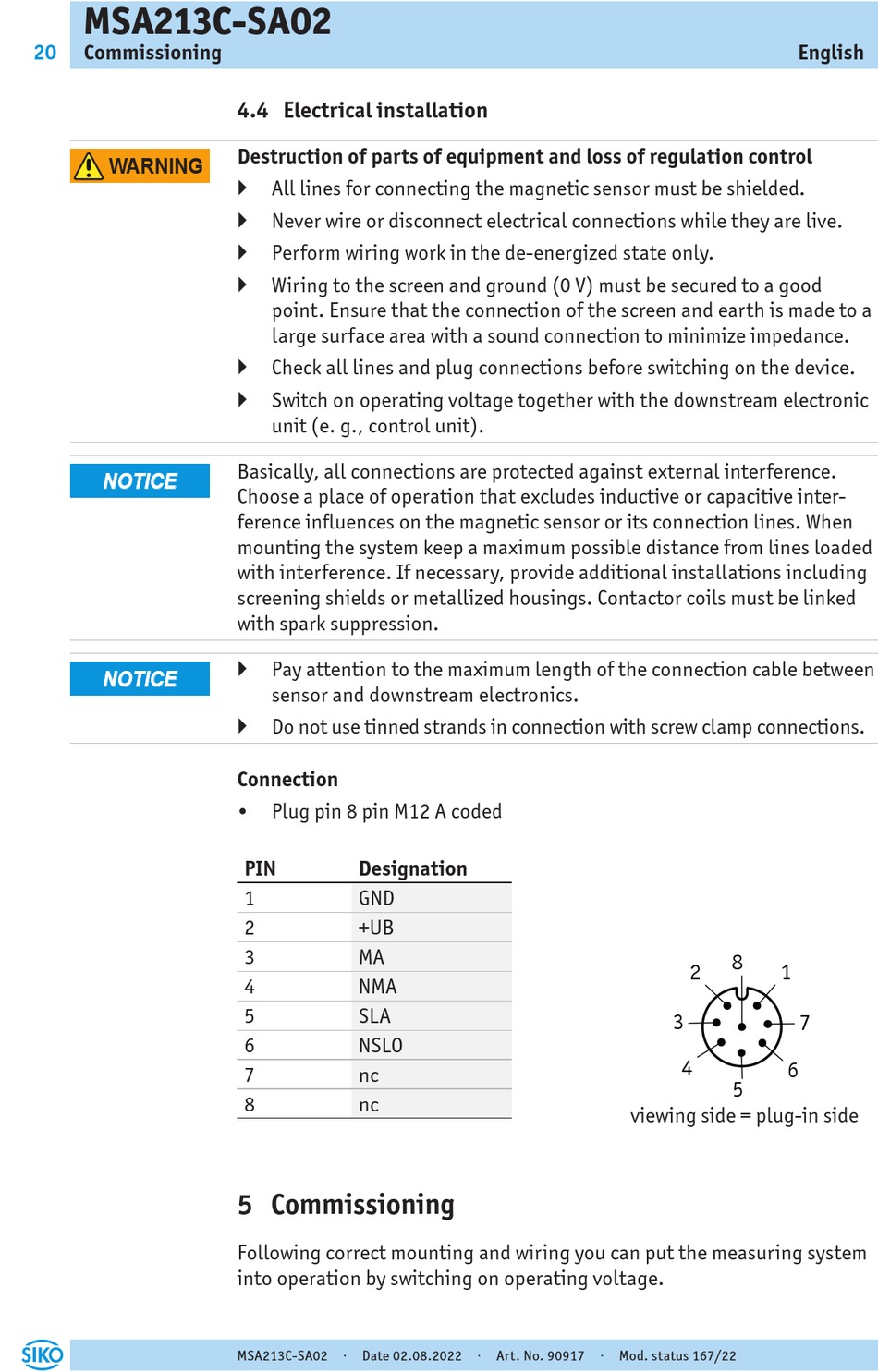

4.4 Electrical installation
Destruction of parts of equipment and loss of regulation control
` All lines for connecting the magnetic sensor must be shielded.
` Never wire or disconnect electrical connections while they are live.
` Perform wiring work in the de-energized state only.
` Wiring to the screen and ground (0 V) must be secured to a good
point. Ensure that the connection of the screen and earth is made to a
large surface area with a sound connection to minimize impedance.
` Check all lines and plug connections before switching on the device.
` Switch on operating voltage together with the downstream electronic
unit (e. g., control unit).
Basically, all connections are protected against external interference.
Choose a place of operation that excludes inductive or capacitive inter-
ference influences on the magnetic sensor or its connection lines. When
mounting the system keep a maximum possible distance from lines loaded
with interference. If necessary, provide additional installations including
screening shields or metallized housings. Contactor coils must be linked
with spark suppression.
` Pay attention to the maximum length of the connection cable between
sensor and downstream electronics.
` Do not use tinned strands in connection with screw clamp connections.
Connection
•
Plug pin 8 pin M12 A coded
PIN
Designation
1
GND
2
+UB
3
MA
4
NMA
5
SLA
6
NSLO
7
nc
8
nc
5 Commissioning
Following correct mounting and wiring you can put the measuring system
into operation by switching on operating voltage.
MSA213C-SA02 · Date 02.08.2022 · Art. No. 90917 · Mod. status 167/22
5
2
1
English
3
4
M16 A-Codiert 7-pol.
Stecker
7
1
6
2
5
4
3
M12 A-Codiert 8-pol.
Stecker
8
2
1
3
7
4
6
5
viewing side = plug-in side
