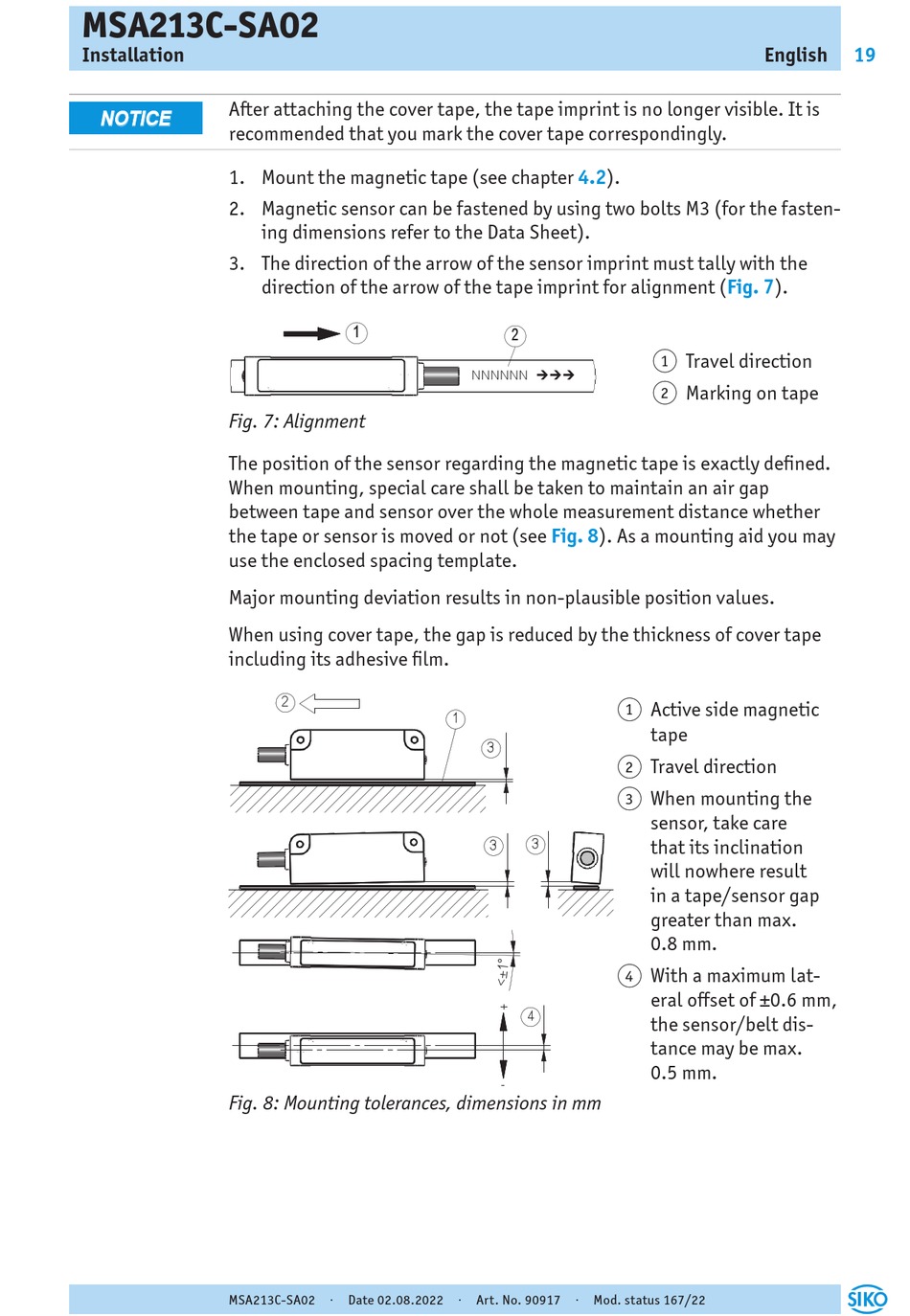

MSA213C-SA02
Installation
After attaching the cover tape, the tape imprint is no longer visible. It is
NOTICE
recommended that you mark the cover tape correspondingly.
1. Mount the magnetic tape (see chapter 4.2).
2. Magnetic sensor can be fastened by using two bolts M3 (for the fasten-
3. The direction of the arrow of the sensor imprint must tally with the
Fig. 7: Alignment
The position of the sensor regarding the magnetic tape is exactly defined.
When mounting, special care shall be taken to maintain an air gap
between tape and sensor over the whole measurement distance whether
the tape or sensor is moved or not (see
use the enclosed spacing template.
Major mounting deviation results in non-plausible position values.
When using cover tape, the gap is reduced by the thickness of cover tape
including its adhesive film.
Fig. 8: Mounting tolerances, dimensions in mm
MSA213C-SA02 · Date 02.08.2022 · Art. No. 90917 · Mod. status 167/22
ing dimensions refer to the Data Sheet).
direction of the arrow of the tape imprint for alignment
1
2
2
NNNNNN
èèè
Fig.
8). As a mounting aid you may
1
3
3
3
+
4
-
English
7).
(Fig.
Travel direction
1
Marking on tape
2
Active side magnetic
1
tape
Travel direction
2
When mounting the
3
sensor, take care
that its inclination
will nowhere result
in a tape/sensor gap
greater than max.
0.8 mm.
With a maximum lat-
4
eral offset of ±0.6 mm,
the sensor/belt dis-
tance may be max.
0.5 mm.
19
