Start-up

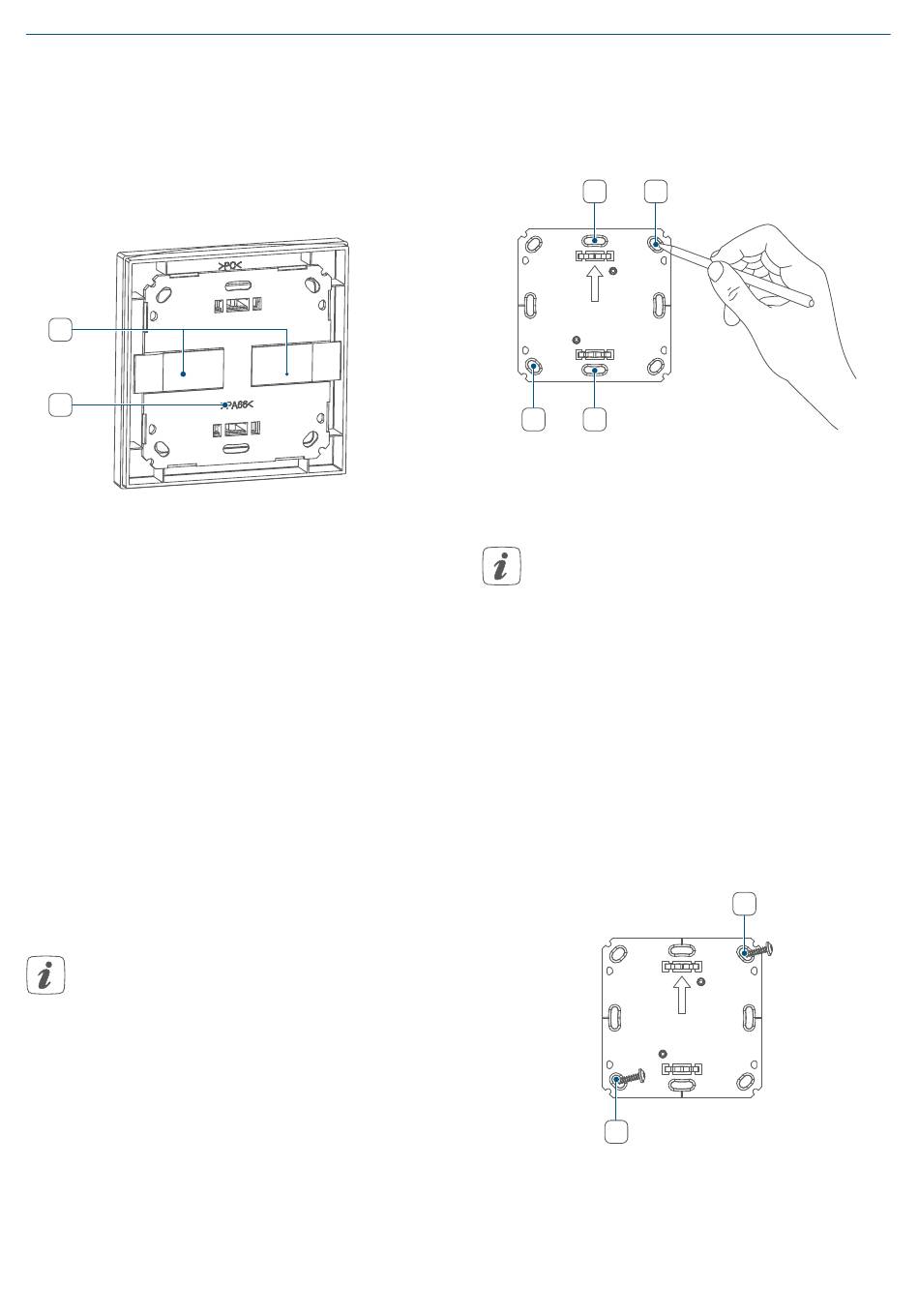

• Fix the adhesive strips (F) on the
back side of the mounting plate (G)
in the provided area. You should be
able to read the letters on the back
side.
F
G
Figure 5
• Remove the protective film from
the adhesive strips.
• Press the assembled temperature
and humidity sensor with the back
side to the wall in the position
where it should subsequently be
attached.
6.2.2 Screw mounting
For mounting the temperature and hu-
midity sensor with the supplied screws,
please proceed as follows:
• Choose a site for installation.
Make sure that no electricity or
similar lines run in the wall at this
location!
• Position the mounting plate (G) on
the desired site on the wall. Make
sure that the arrow on the moun-
ting plate is pointing upwards.
• Use a pen to mark the positions of
bore holes (I) (diagonally opposite)
in the mounting plate on the wall.
H
I
I
H
Figure 6
• Now drill the bore holes.
If you are working with a stone
wall, drill the marked two 5 mm
holes and insert the plugs sup-
plied. If you are working with a
wooden wall, you can pre-drill
1.5 mm holes to make screws
easier to insert.
• Use the supplied screws and plugs
(J) to fasten the mounting plate to
the wall.
J
Figure 7
• Attach the clip-on frame (A) to the
mounting plate.
J
