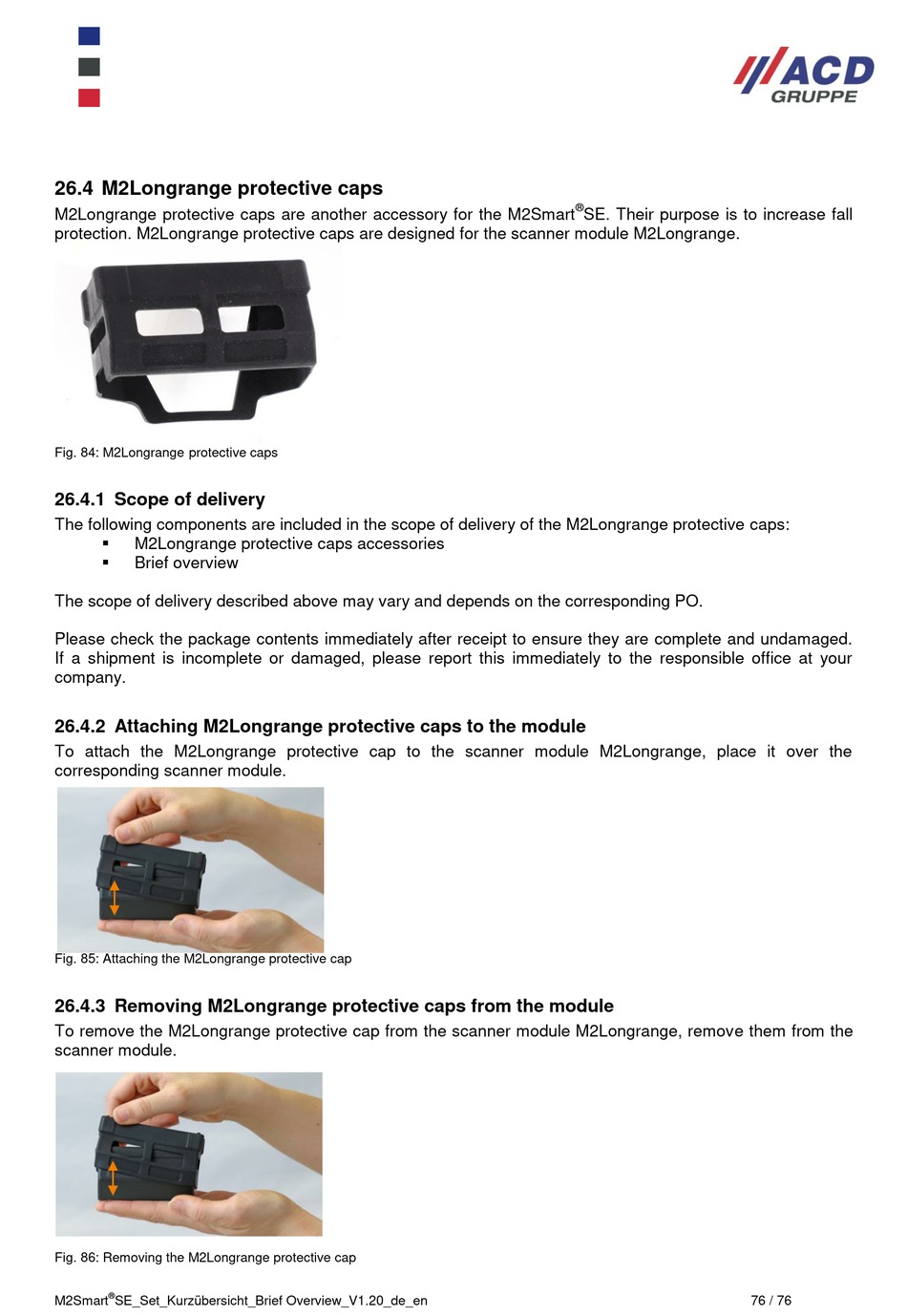

26.4 M2Longrange protective caps

M2Longrange protective caps are another accessory for the M2Smart
protection. M2Longrange protective caps are designed for the scanner module M2Longrange.
Fig. 84: M2Longrange protective caps

26.4.1 Scope of delivery

The following components are included in the scope of delivery of the M2Longrange protective caps:
 M2Longrange protective caps accessories
 Brief overview
The scope of delivery described above may vary and depends on the corresponding PO.
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.

26.4.2 Attaching M2Longrange protective caps to the module

To attach the M2Longrange protective cap to the scanner module M2Longrange, place it over the
corresponding scanner module.
Fig. 85: Attaching the M2Longrange protective cap

26.4.3 Removing M2Longrange protective caps from the module

To remove the M2Longrange protective cap from the scanner module M2Longrange, remove them from the
scanner module.
Fig. 86: Removing the M2Longrange protective cap
®
