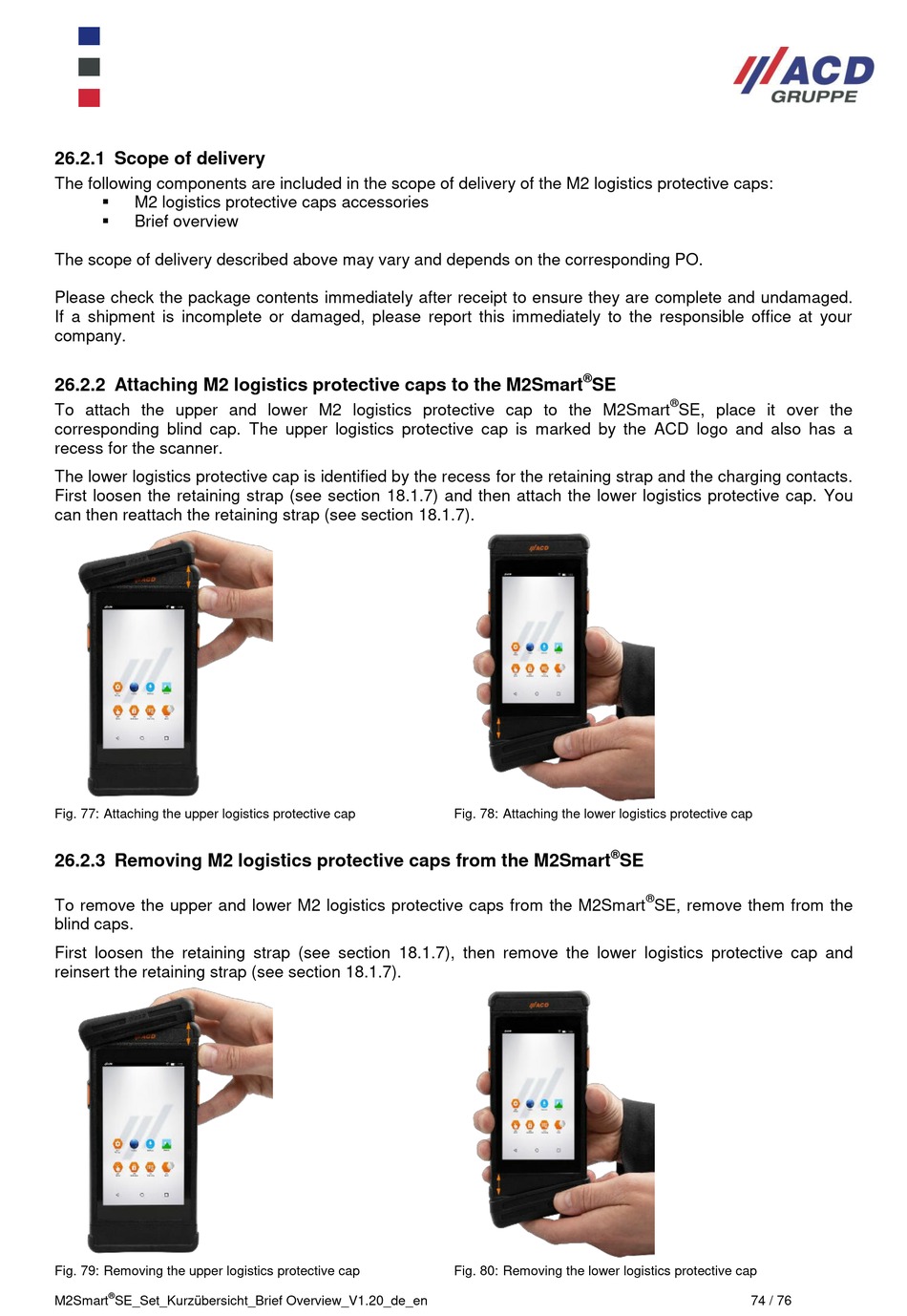

26.2.1 Scope of delivery
The following components are included in the scope of delivery of the M2 logistics protective caps:
 M2 logistics protective caps accessories
Brief overview

The scope of delivery described above may vary and depends on the corresponding PO.
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
26.2.2 Attaching M2 logistics protective caps to the M2Smart
To attach the upper and lower M2 logistics protective cap to the M2Smart
corresponding blind cap. The upper logistics protective cap is marked by the ACD logo and also has a
recess for the scanner.
The lower logistics protective cap is identified by the recess for the retaining strap and the charging contacts.
First loosen the retaining strap (see section 18.1.7) and then attach the lower logistics protective cap. You
can then reattach the retaining strap (see section 18.1.7).
Fig. 77: Attaching the upper logistics protective cap
26.2.3 Removing M2 logistics protective caps from the M2Smart
To remove the upper and lower M2 logistics protective caps from the M2Smart
blind caps.
First loosen the retaining strap (see section 18.1.7), then remove the lower logistics protective cap and
reinsert the retaining strap (see section 18.1.7).
Fig. 79: Removing the upper logistics protective cap
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
®
SE
Fig. 78: Attaching the lower logistics protective cap
®
SE
Fig. 80: Removing the lower logistics protective cap
®
SE, place it over the
®
SE, remove them from the
