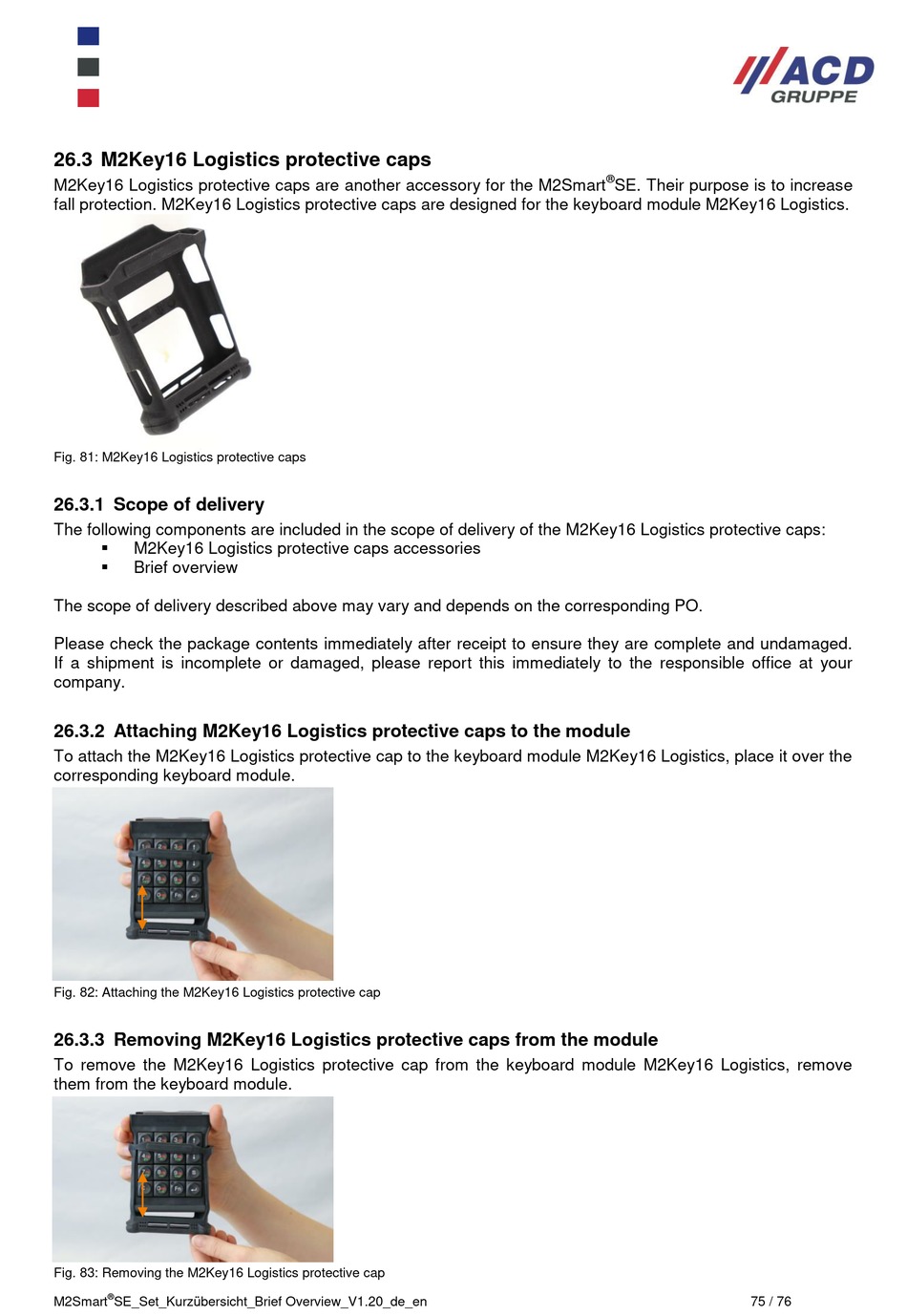

26.3 M2Key16 Logistics protective caps

M2Key16 Logistics protective caps are another accessory for the M2Smart
fall protection. M2Key16 Logistics protective caps are designed for the keyboard module M2Key16 Logistics.
Fig. 81: M2Key16 Logistics protective caps

26.3.1 Scope of delivery

The following components are included in the scope of delivery of the M2Key16 Logistics protective caps:
M2Key16 Logistics protective caps accessories

Brief overview

The scope of delivery described above may vary and depends on the corresponding PO.
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.

26.3.2 Attaching M2Key16 Logistics protective caps to the module

To attach the M2Key16 Logistics protective cap to the keyboard module M2Key16 Logistics, place it over the
corresponding keyboard module.
Fig. 82: Attaching the M2Key16 Logistics protective cap

26.3.3 Removing M2Key16 Logistics protective caps from the module

To remove the M2Key16 Logistics protective cap from the keyboard module M2Key16 Logistics, remove
them from the keyboard module.
Fig. 83: Removing the M2Key16 Logistics protective cap
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
®
SE. Their purpose is to increase
