19.4 RFID/NFC reader
The device has a RFID/NFC reader PN7150 with integrated firmware as option, which supports the following
operating modes or protocols.
NFC-IP Modes:
Reader NFC-Forum Tag-Type 1 to 5, P2P activ Initiator and Target, P2P passiv Initiator and Target,
Reader/Writer mode, Peer to Peer mode and Card emulation.
Reader (PCD-VCD):
ISO/IEC 14443A/B, ISO/IEC15693, MIFARE Classic/DESFire, Sony FeliCa.
CARD (PICC):
T4T-ISO/IEC14443A, ISO/IEC14443B, NFC FORUM T3T.
The reading area of the reader is located in the front part of the device and is represented by the orange
area. The range depends on the position, size and technology of the transponder and ranges from a few
millimeters to several centimeters.

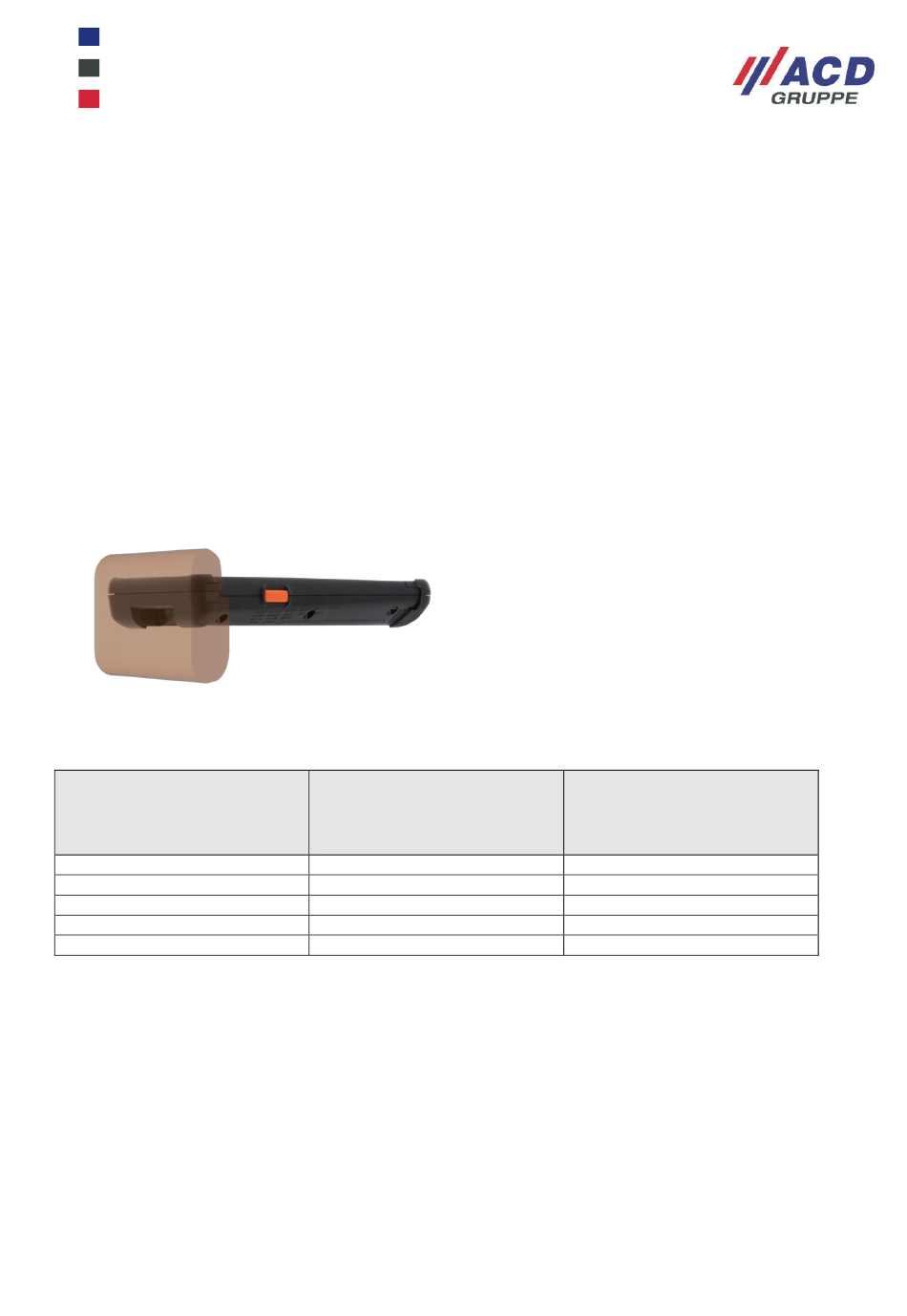

Fig. 65: Range of the reader
The following table contains the transponder in format 85 mm x 45 mm and the typical reading range
Transponder
MIFARE Ultralight
MIFARE Plus 2k „S"
MIFARE DESFire
NFC Sample Card
ICODE
®
M2Smart
SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
Range of the
RFID-/NFC-Reader
®
For the M2Smart
SE without Imager
®
and for the M2Smart
SE with
2D shortrange Imager (SE4770)
Approx. 40 mm
Approx. 28 mm
Approx. 32 mm
Approx. 54 mm
Approx. 75 mm
Range of the
RFID-/NFC-Reader
®
For the M2Smart
SE with
2D midrange Imager (SE4750MR)
Approx. 29 mm
Approx. 20 mm
Approx. 18 mm
Approx. 47 mm
Approx. 67 mm
