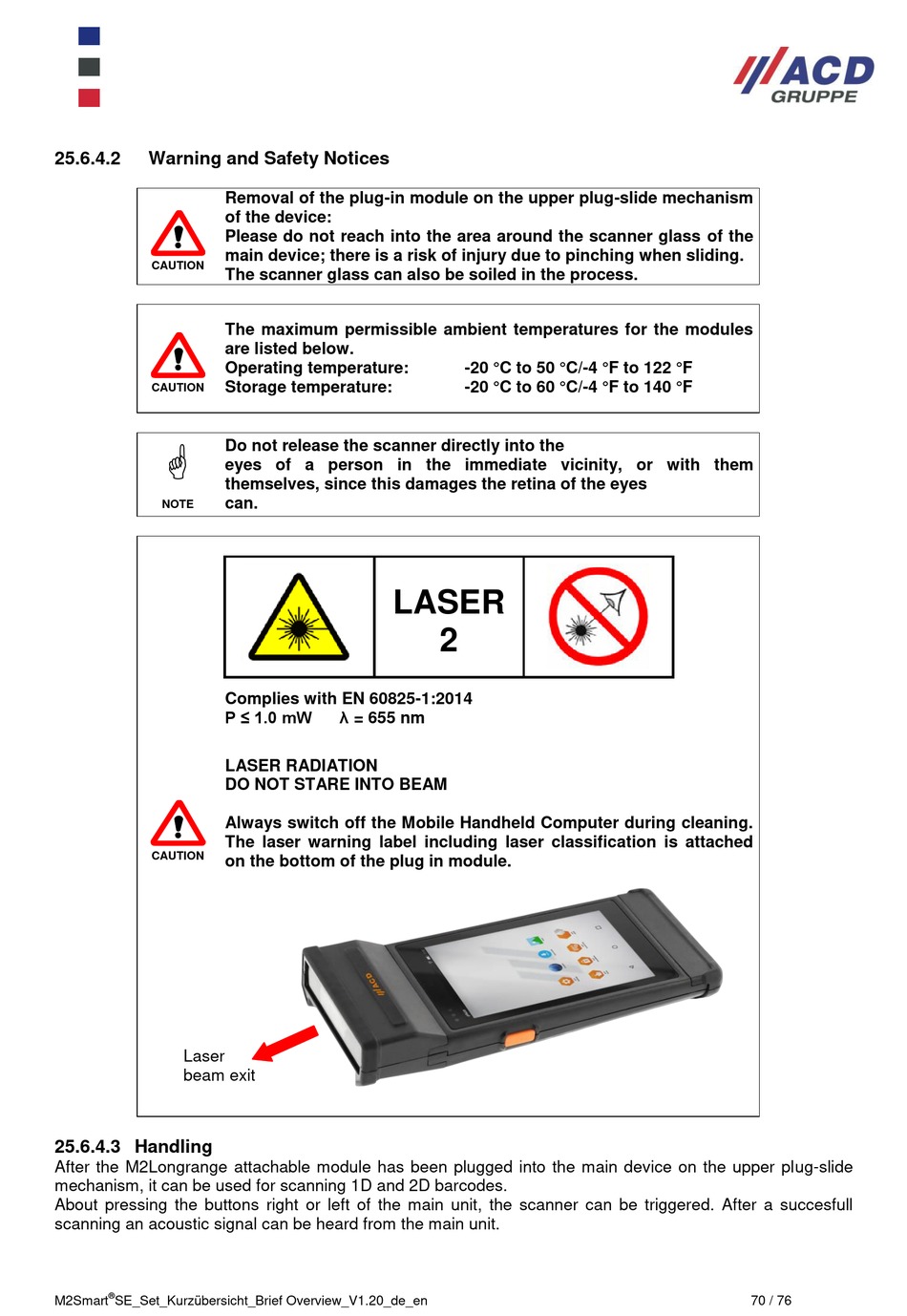

25.6.4.2 Warning and Safety Notices
Removal of the plug-in module on the upper plug-slide mechanism
of the device:
Please do not reach into the area around the scanner glass of the
main device; there is a risk of injury due to pinching when sliding.
CAUTION
The scanner glass can also be soiled in the process.
The maximum permissible ambient temperatures for the modules
are listed below.
Operating temperature:
Storage temperature:
CAUTION
Do not release the scanner directly into the

eyes of a person in the immediate vicinity, or with them
themselves, since this damages the retina of the eyes
can.
NOTE
Complies with EN 60825-1:2014
P ≤ 1.0 mW
LASER RADIATION
DO NOT STARE INTO BEAM
Always switch off the Mobile Handheld Computer during cleaning.
The laser warning label including laser classification is attached
CAUTION
on the bottom of the plug in module.
Laser
beam exit
25.6.4.3 Handling
After the M2Longrange attachable module has been plugged into the main device on the upper plug-slide
mechanism, it can be used for scanning 1D and 2D barcodes.
About pressing the buttons right or left of the main unit, the scanner can be triggered. After a succesfull
scanning an acoustic signal can be heard from the main unit.
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
-20 °C to 50 °C/-4 °F to 122 °F
-20 °C to 60 °C/-4 °F to 140 °F
LASER
2
λ = 655 nm
