18.1.8 Status LEDs
The Status LEDs of the M2Smart

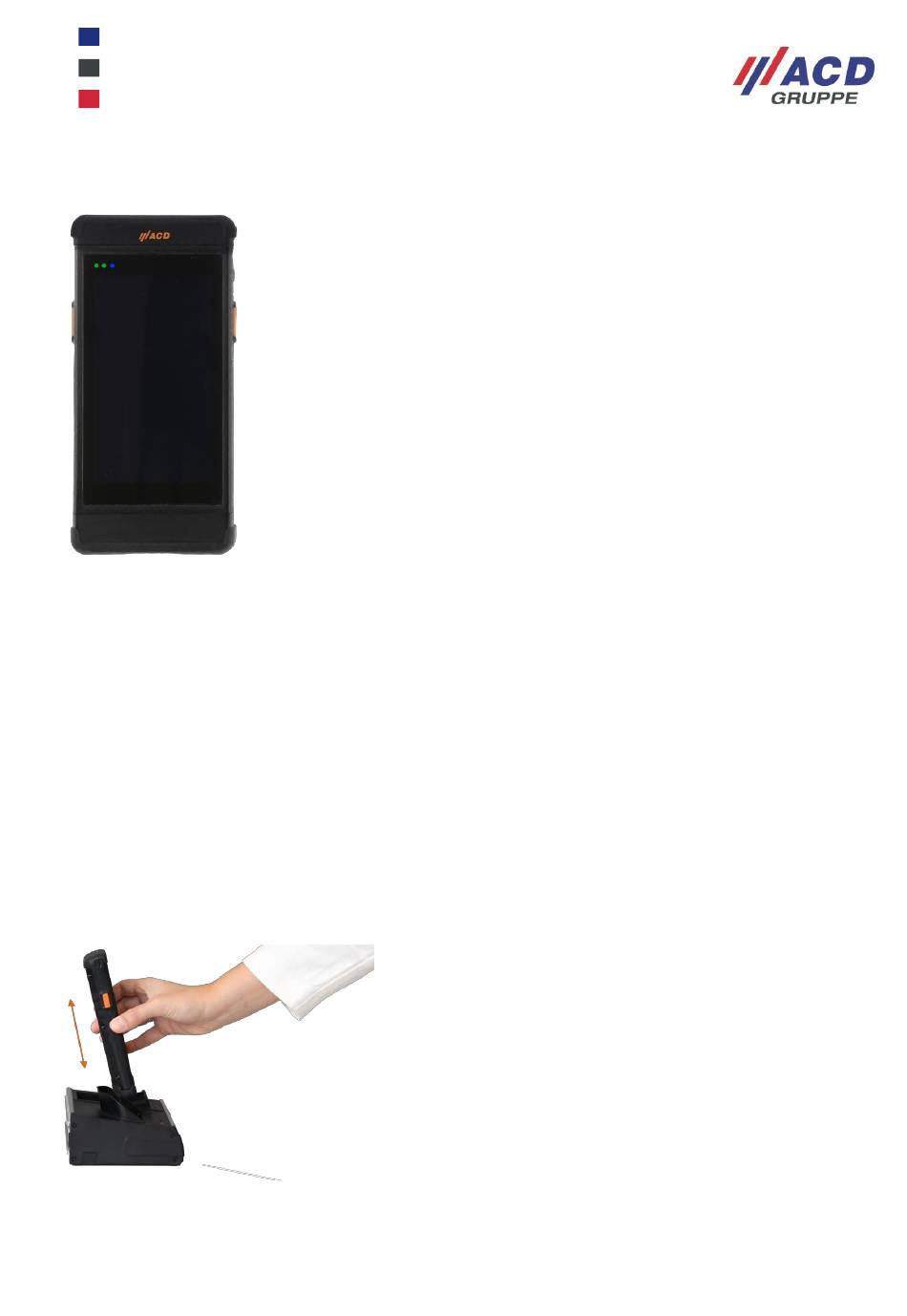

Fig. 52: Status LEDs of the M2Smart
The LEDs are arranged as follows from left to right: On LED, charge LED, application LED
On LED lit green:
Charge LED lit green:
Charge LED flashing:
Application LED:
18.1.9 Inserting the Mobil Handheld Computer in and removing it from the docking station
To insert the Mobile Handheld Computer in the docking station, put it in vertically downward. To remove the
Mobile Handheld Computer from the docking station, pull it vertically upward out of the docking station.
Fig. 53: Inserting Mobile Handheld Computer in and removing it from the docking station
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
®
SE Mobile Handheld Computer will be described below.
®
SE
The On LED lights up green when the device is turned on or is just starting.
The charge LED lights up green while the device is being charged.
The charge LED flashes slowly in the colour yellow when no battery is
detected.
The charge LED flashes quickly in the colour red when the battery is low.
The application LED can be controlled by any application on the device and
its function can be freely defined.
