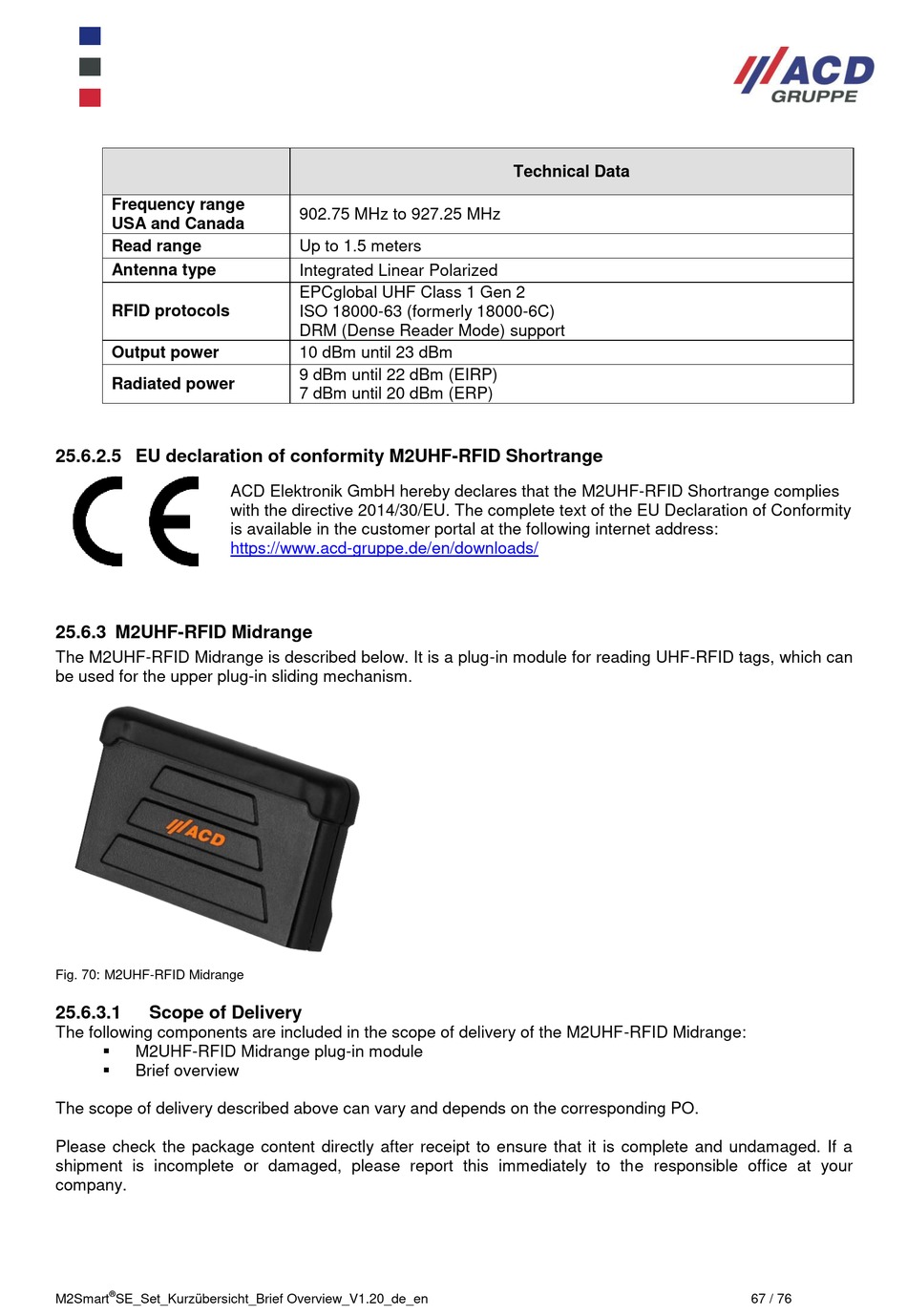

ACD M2Smart SE Set Kurzübersicht Seite 67

Frequency range
USA and Canada
Read range
Antenna type
RFID protocols
Output power
Radiated power
25.6.2.5 EU declaration of conformity M2UHF-RFID Shortrange
25.6.3 M2UHF-RFID Midrange
The M2UHF-RFID Midrange is described below. It is a plug-in module for reading UHF-RFID tags, which can
be used for the upper plug-in sliding mechanism.
Fig. 70: M2UHF-RFID Midrange
25.6.3.1 Scope of Delivery
The following components are included in the scope of delivery of the M2UHF-RFID Midrange:
 M2UHF-RFID Midrange plug-in module
 Brief overview
The scope of delivery described above can vary and depends on the corresponding PO.
Please check the package content directly after receipt to ensure that it is complete and undamaged. If a
shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
®
M2Smart SE_Set_Kurzübersicht_Brief Overview_V1.20_de_en
902.75 MHz to 927.25 MHz
Up to 1.5 meters
Integrated Linear Polarized
EPCglobal UHF Class 1 Gen 2
ISO 18000-63 (formerly 18000-6C)
DRM (Dense Reader Mode) support
10 dBm until 23 dBm
9 dBm until 22 dBm (EIRP)
7 dBm until 20 dBm (ERP)
ACD Elektronik GmbH hereby declares that the M2UHF-RFID Shortrange complies
with the directive 2014/30/EU. The complete text of the EU Declaration of Conformity
is available in the customer portal at the following internet address:
https://www.acd-gruppe.de/en/downloads/
Technical Data
67 / 76
