7. Calibrate the temperature, refer to

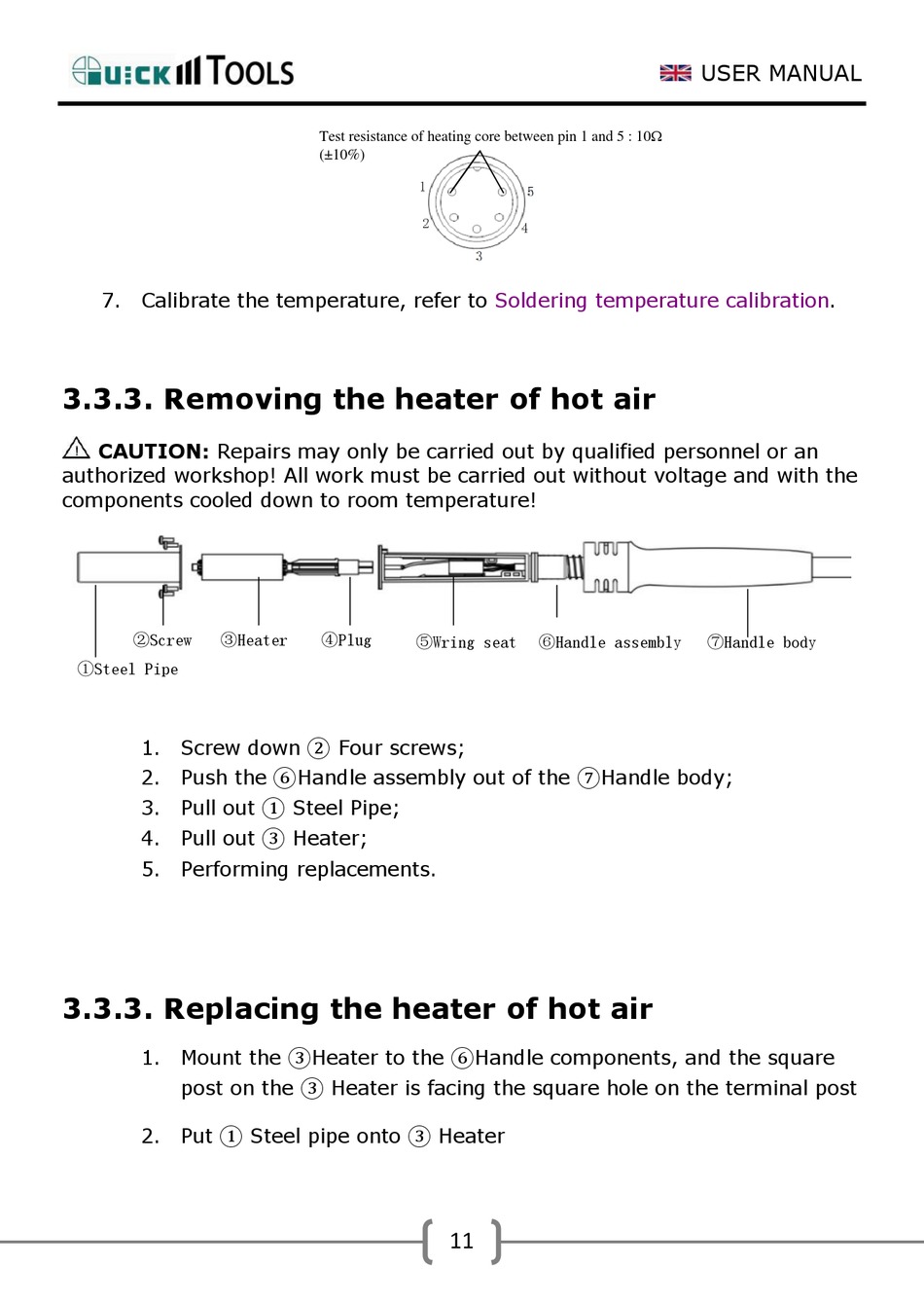

3.3.3. Removing the heater of hot air
CAUTION: Repairs may only be carried out by qualified personnel or an
authorized workshop! All work must be carried out without voltage and with the
components cooled down to room temperature!
②Screw ③Heater
①Steel Pipe
1. Screw down ② Four screws;
2. Push the ⑥Handle assembly out of the ⑦Handle body;
3. Pull out ① Steel Pipe;
4. Pull out ③ Heater;
5. Performing replacements.
3.3.3. Replacing the heater of hot air
1. Mount the ③Heater to the ⑥Handle components, and the square
post on the ③ Heater is facing the square hole on the terminal post
2. Put ① Steel pipe onto ③ Heater
Test resistance of heating core between pin 1 and 5 : 10Ω
(±10%)
④Plug
⑤Wring seat
11
Soldering temperature
⑥Handle assembly
USER MANUAL
calibration.
The square
te the termi
⑦Handle body

