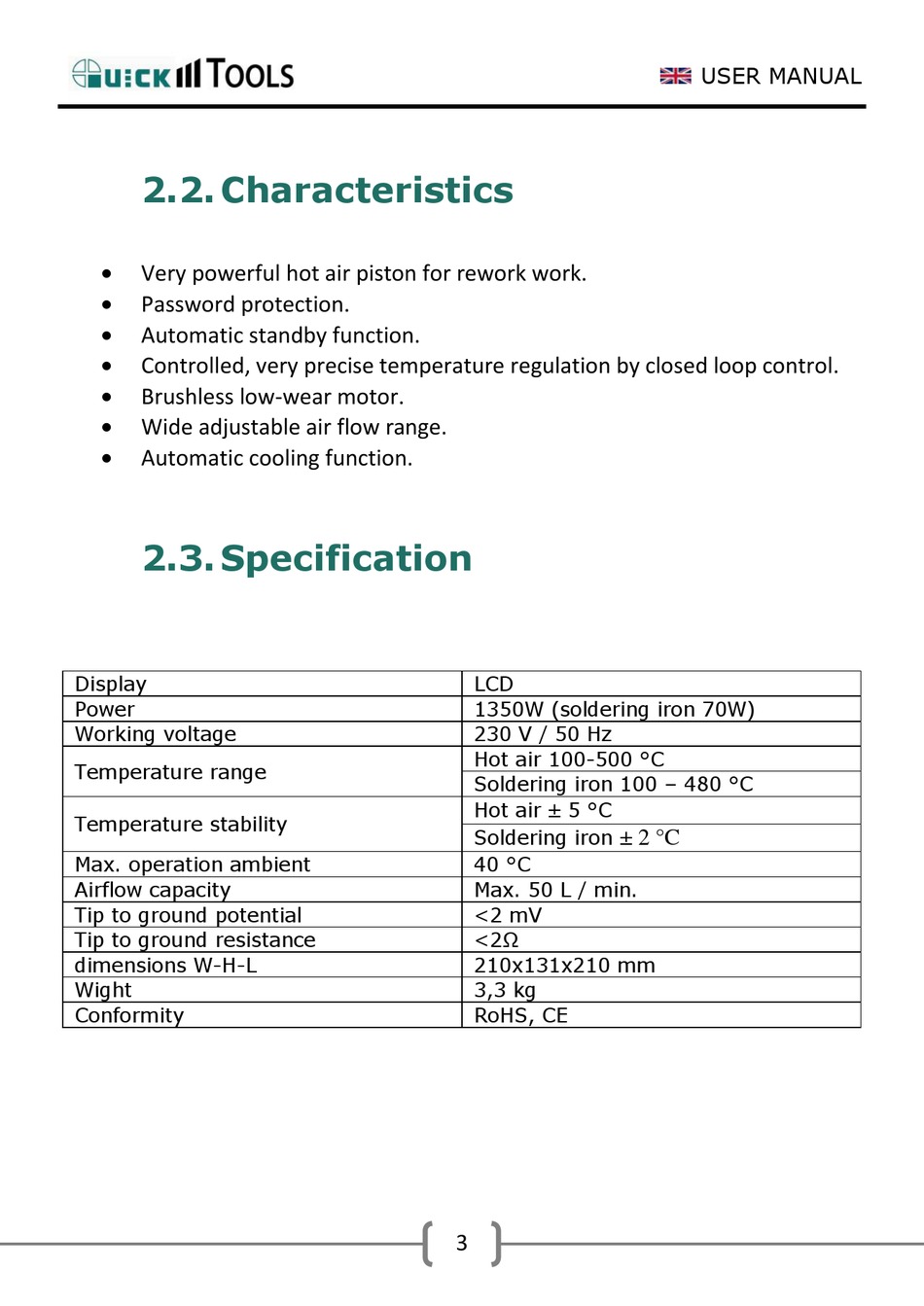

2.2. Characteristics


Very powerful hot air piston for rework work.

Password protection.

Automatic standby function.

Controlled, very precise temperature regulation by closed loop control.

Brushless low-wear motor.

Wide adjustable air flow range.

Automatic cooling function.

2.3. Specification

Display
Power
Working voltage
Temperature range
Temperature stability
Max. operation ambient
Airflow capacity
Tip to ground potential
Tip to ground resistance
dimensions W-H-L
Wight
Conformity
LCD
1350W (soldering iron 70W)
230 V / 50 Hz
Hot air 100-500 °C
Soldering iron 100 – 480 °C
Hot air 5 °C
±
Soldering iron
± 2 °C
40 °C
Max. 50 L / min.
<2 mV
<2Ω
210x131x210 mm
3,3 kg
RoHS, CE
