3.3.1. Removing the heater of soldering iron
CAUTION: Repairs may only be carried out by qualified personnel or an
authorized workshop! All work must be carried out without voltage and with the
components cooled down to room temperature!

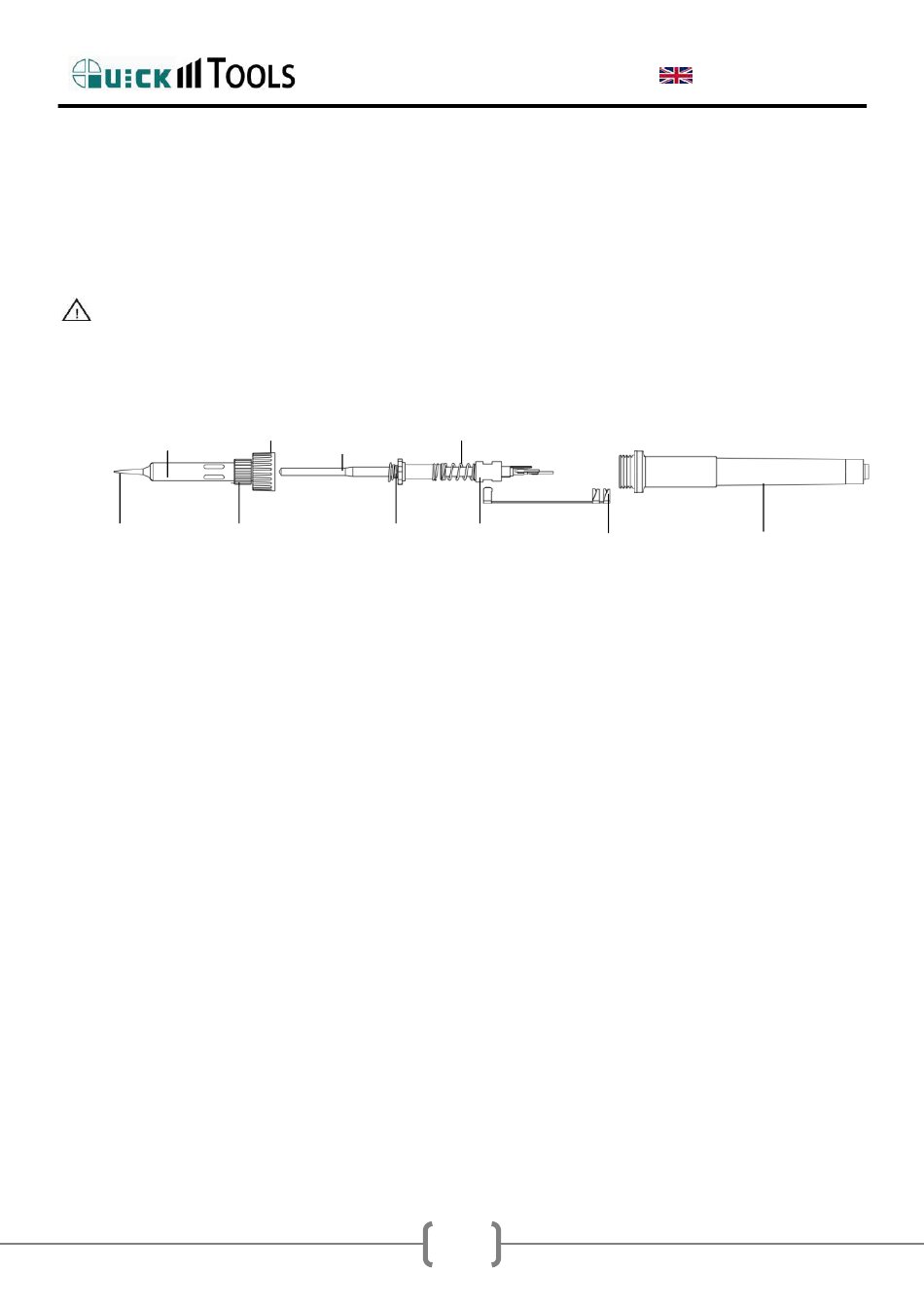

④insert
②outer cover
①
③outer cover nut
soldering tip
1. Pull out the ①Soldering tip and screw down the ⑤Nipple
2. Pull out the ⑥Heater from the ⑪Handle body
3. Pull out the ⑩Wire clamp from the ⑨Plastic part upward
4. Unplug the three leads plugged into the heater pin
5. Remove the ⑨Plastic part, ⑧Spring and ⑦Grounding spring
3.3.2. Replacing the heater of soldering iron
1. Plug the three wires into the ⑥Heater pins
2. Install the ⑧Spring and the ⑦ Grounding spring, and snap the ⑩Wire
clamp into the ⑨ Plastic part
3. Put ⑥ Heater into ⑪ Handle body
4. Screw on ⑤Nipple and Install ①Soldering tip
5. Put ② Tip enclosure and ③ Nut on ⑤Nipple and screw them tightly
6. After replacing the heater, the following measurements are
recommended:

Heating Element

⑤
⑩spring
heater
⑥
Grounding spring
10
⑦plastic part
⑧Wire clamp
