Rotel RB-5000 Technische Anleitung Seite 7

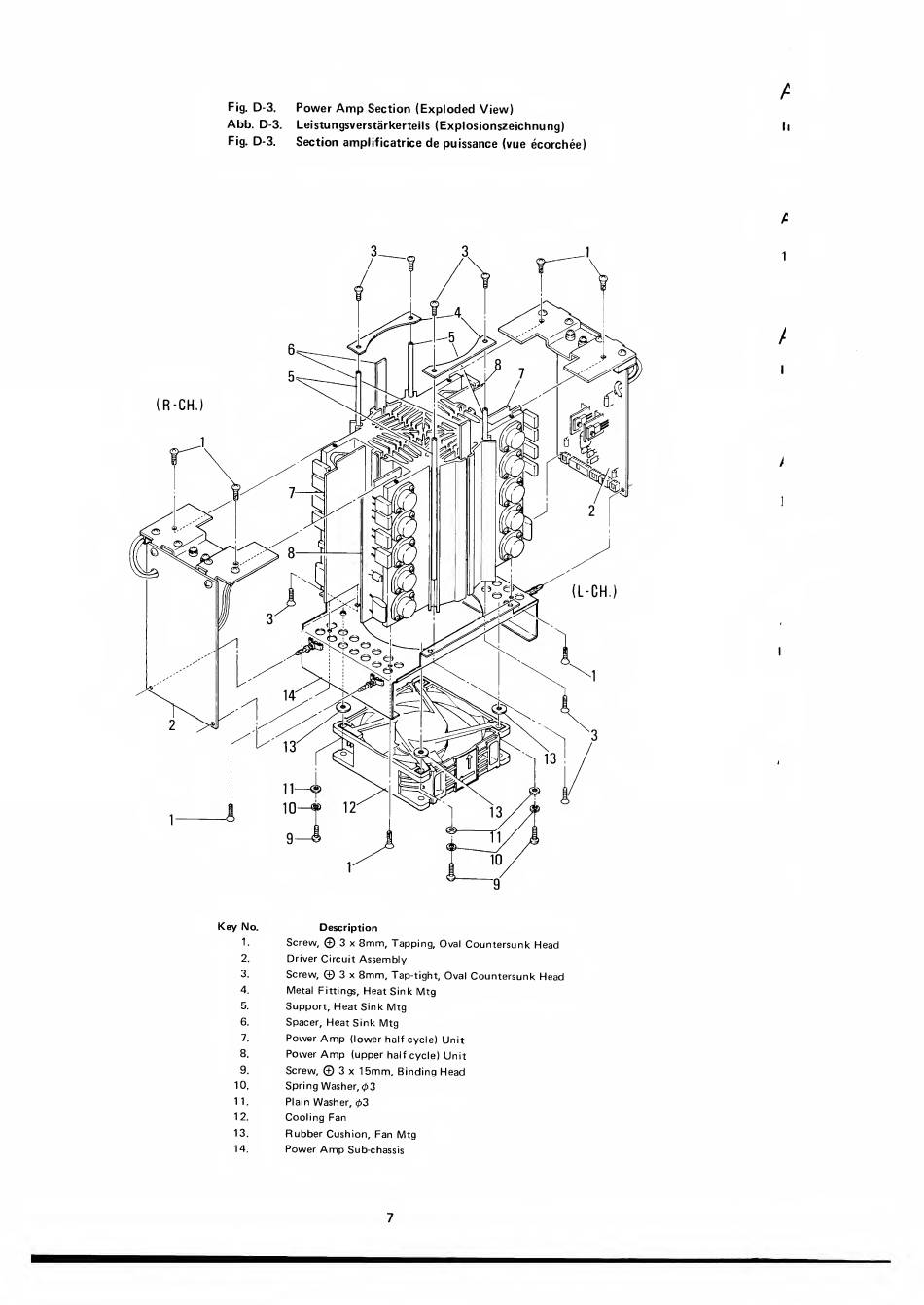

Fig. D-3.
Power
Amp
Section (Exploded View)
Abb.
D-3. Leistungsverstarkerteils
(Explosionszeichnung)
Fig. D-3. Section
amplificatrice de
puissance (vue
ecorchee)
Key
No.
Description
1.
Screw,
©
3 x
8mm,
Tapping, Oval
Countersunk Head
2.
Driver Circuit Assembly
3.
Screw,
©
3 x
8mm,
Tap-tight,
Oval
Countersunk Head
4.
Metal
Fittings,
Heat Sink Mtg
5.
Support, Heat Sink Mtg
6.
Spacer, Heat Sink Mtg
7.
Power
Amp
(lower
half cycle) Unit
8.
Power
Amp
(upper
half cycle) Unit
9.
Screw,
©
3 x
15mm,
Binding Head
10.
Spring Washer, 03
11. Plain Washer, 03
12.
Cooling Fan
13.
Rubber
Cushion, Fan Mtg
14.
Power
Amp
Sub-chassis
