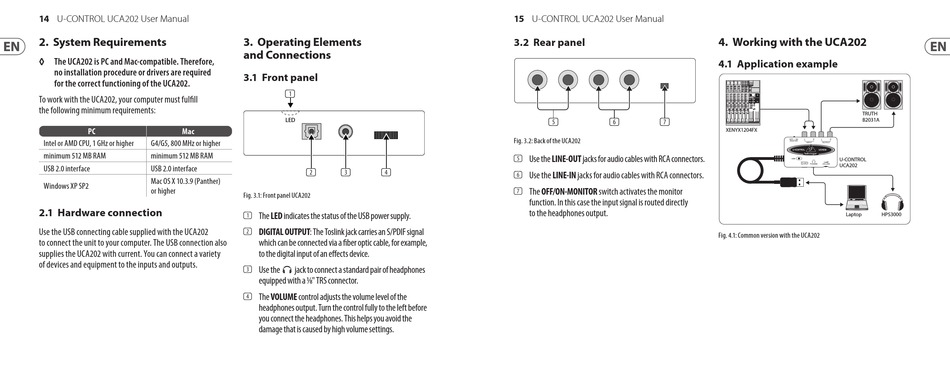

14 U-CONTROL UCA202 User Manual
2. System Requirements
◊ ◊ The UCA202 is PC and Mac-compatible. Therefore,
no installation procedure or drivers are required
for the correct functioning of the UCA202.
To work with the UCA202, your computer must fulfill
the following minimum requirements:
PC PC Mac
Intel or AMD CPU, 1 GHz or higher G4/G5, 800 MHz or higher
minimum 512 MB RAM minimum 512 MB RAM
USB 2.0 interface USB 2.0 interface
Mac OS X 10.3.9 (Panther)
Windows XP SP2
or higher
2.1 Hardware connection
Use the USB connecting cable supplied with the UCA202
to connect the unit to your computer. The USB connection also
supplies the UCA202 with current. You can connect a variety
of devices and equipment to the inputs and outputs.
3. Operating Elements
(1)
and Connections
LED
3.1 Front panel
(1)
LED
(2) (3)
(2) (3) (4)
Fig. 3.1: Front panel UCA202
(1) The LED indicates the status of the USB power supply.
(2) DIGITAL OUTPUT: The Toslink jack carries an S/PDIF signal
which can be connected via a fiber optic cable, for example,
to the digital input of an effects device.
(3) Use the jack to connect a standard pair of headphones
equipped with a 1/8" TRS connector.
(4) The VOLUME control adjusts the volume level of the
headphones output. Turn the control fully to the left before
you connect the headphones. This helps you avoid the
damage that is caused by high volume settings.
15 U-CONTROL UCA202 User Manual
3.2 Rear panel
(4) (5) (6)
Fig. 3.2: Back of the UCA202
(5) Use the LINE-OUT jacks for audio cables with RCA connectors.
(5) (6) (7)
(6) Use the LINE-IN jacks for audio cables with RCA connectors.
(7) The OFF/ON-MONITOR switch activates the monitor
function. In this case the input signal is routed directly
to the headphones output.
4. Working with the UCA202
4.1 Application example
(7)
XENYX1204FX
Fig. 4.1: Common version with the UCA202
TRUTH
B2031A
U-CONTROL
UCA202
Laptop HPS3000
