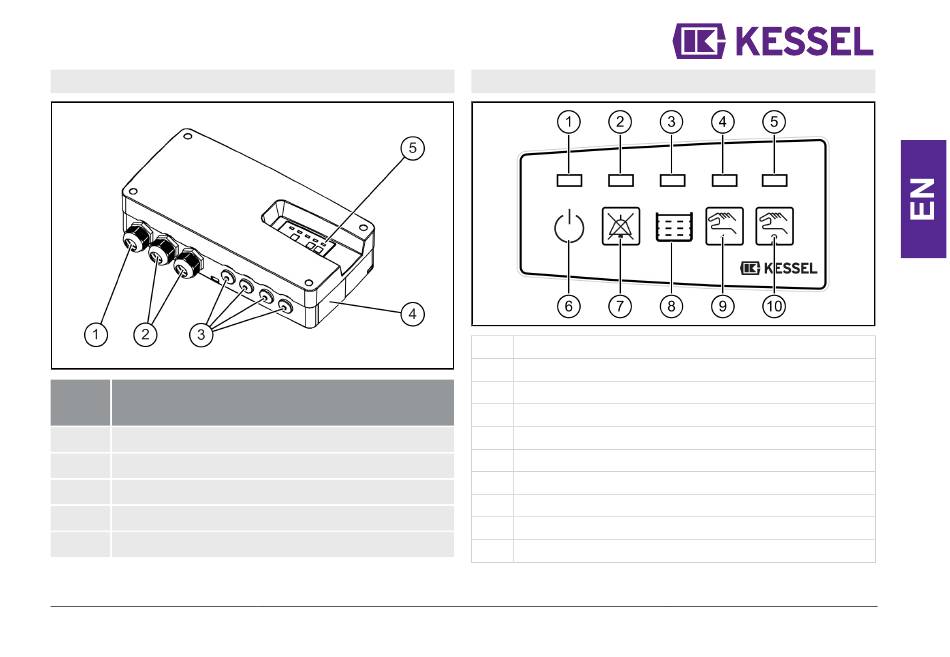

2.4 Assemblies and functional overview
Item Assembly/functional element
no.
(1) Mains cable
(2) Connections for pump(s)
(3) Blind plug, optional connections
(4) Type plate
(5) LEDs and control panel
016-306
2.5
(1)
(2)
(3)
(4)
(5) LED wastewater pump running (orange), (Duo only)
(6)
(7)
(8)
(9)
(10) Wastewater pump on (manual) button, (Duo only)
Installation and operating instructions
Displays, operating keys and their functions
Ready for operation LED (green)
Alarm LED (red)
LED switch-on level reached (orange)
LED wastewater pump running (orange)
Operation symbol
Switch off (acknowledge) alarm button
System tank symbol
Wastewater pump on (manual) button
