Translation (by kind permission of: UGA System-Technik GmbH)
Hotline: +49 7324 9696-33

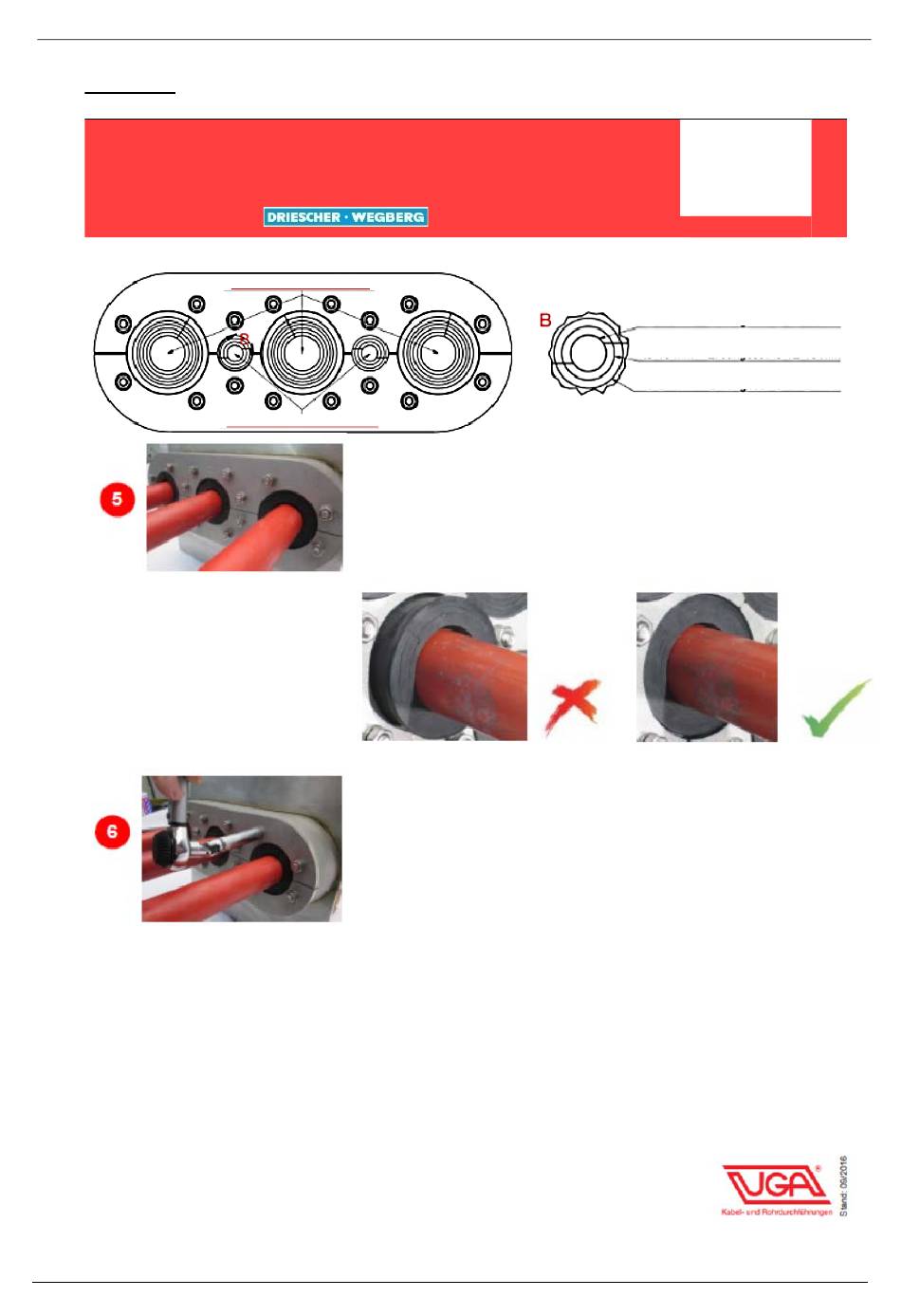

Rubber-press-seals with onion ring technology
GPD (A1)x(A2)-ZS/g/f/1/(Z)x(22-54)+(Z)x(10-21)
Developed for Company
Onion-ring insert ZS 22-54
Onion-rings drilled 11+16+21
Hints:
•
The GPD (A1)x(A2)... is not a fixed point or bearing, and therefore can not withstand
mechanical forces!
•
Lay the cables according to the valid regulations.
•
Do not tighten with electric or impact screw driver!
•
The GPD (A1)x(A2)... is to secure at site against moving out inside!
Important note: We do not assume any warranty in the event of deviation from the information in the assembly instructions
and/or improper use of our products. This also applies to the combination with unreleased third-party products.
UGA SYSTEM-TECHNIK GmbH & Co. KG
Heidenheimer Str. 80-82, 89542 Herbrechtingen
Telefon +49 7324 9696-0, Telefax +49 7324 9696-96
E-Mail: info@uga.eu, Internet: www.uga.eu
Insert the onion-ring inserts
Slide in the onion-ring-inserts all the way to the stop in the GPD
(A1)x(A2)...
False
Tighten the hexagonal nuts
Tighten the nuts bit by bit in several evenly steps with a suita-
ble nut driver (long design) possibly with joint.
Take care of a lineal sit of the GPD and the cables.
®
®
MINEX
-C ABSzero
(DE-EN)
DRIESCHER • WEGBERG
Assembly in-
structions
Ø 11 mm = Earth wire ø 10-11 mm
Ø 16 mm = Earth wire ø 12-16 mm
Ø 21 mm = Earth wire ø 17-21 mm
Right
63
