DRIESCHER • WEGBERG
Translation (by kind permission of: UGA System-Technik GmbH)
Hotline: +49 7324 9696-33
Rubber-press-seals with onion ring technology
GPD (A1)x(A2)-ZS/g/f/1/(Z)x(22-54)+(Z)x(10-21)
Developed for Company
Important note: We do not assume any warranty in the event of deviation from the information in the assembly instructions
and/or improper use of our products. This also applies to the combination with unreleased third-party products.
UGA SYSTEM-TECHNIK GmbH & Co. KG
Heidenheimer Str. 80-82, 89542 Herbrechtingen
Telefon +49 7324 9696-0, Telefax +49 7324 9696-96
E-Mail: info@uga.eu, Internet: www.uga.eu
62

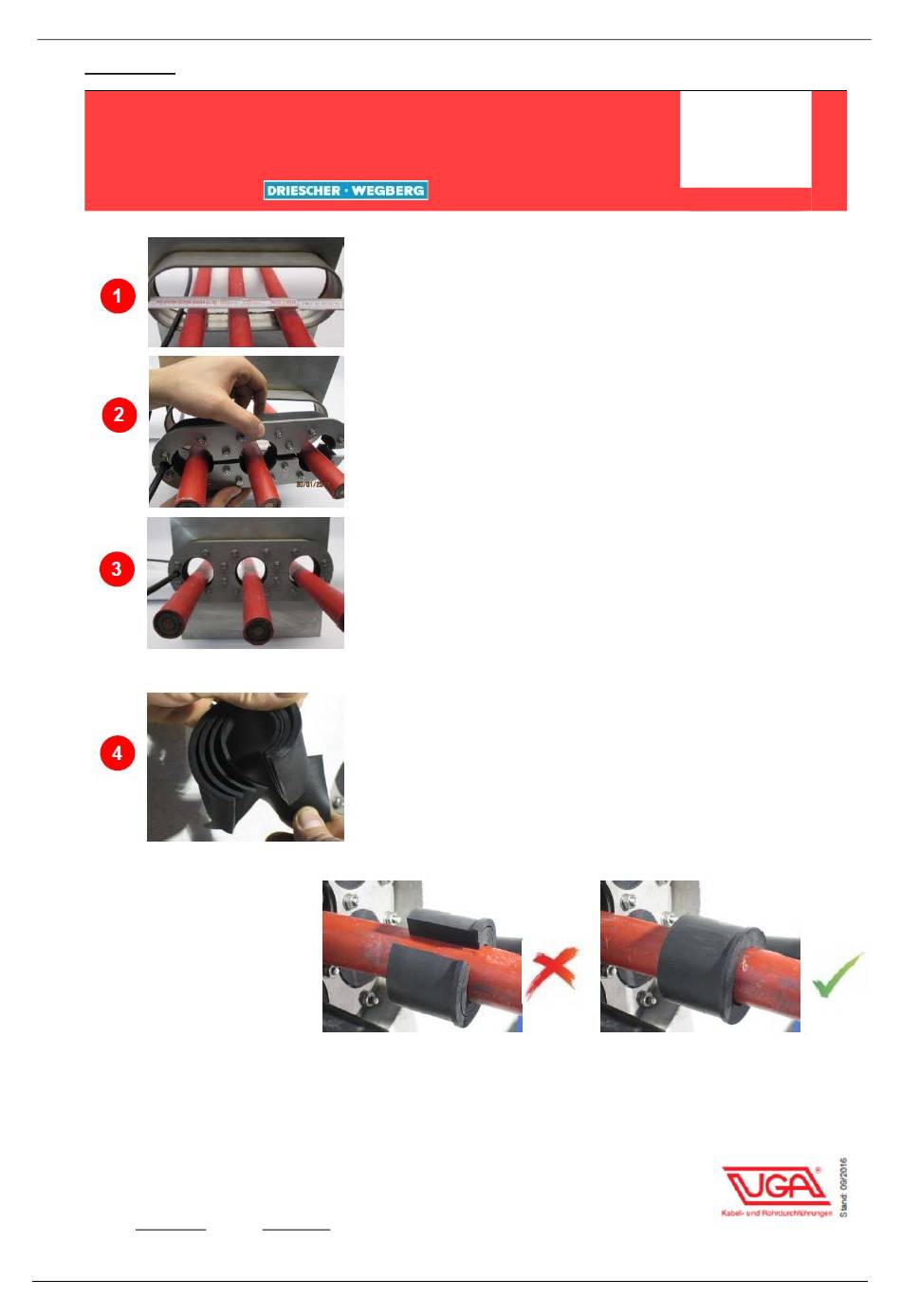

Check dimensions
Check the inner diameter of the metal frame
(tolerance Øi: +2 mm / -1 mm) to the outer diameter (A1 and A2)
of the GPD (A1)x(A2)-ZS/G/F/1/(Z)x(22-54)+(Z)x(10-21).
Clean metal frames and cables.
Remove the onion-ring-inserts
Remove onion-ring-inserts ZS from the
GPD (A1)x(A2)-ZS/G/F/1/(Z)x(22-54)+(Z)x(10-21).
Apply UGA lubricant on the rubber cutting surfaces of the GPD
Place a maximum of one cable in an open-
(A1)x(A2)....
ing.
Insert GPD (A1)x(A2)...
Insert GPD (A1)x(A2)... into the metal frame.
Insert the seal until the covering flange is attached to the frame.
Adjust onion-ring-inserts
Adjust onion-ring-inserts by removing the individual onion rings
according to the actual cable diameters.
The onion rings must be removed without residue. If necessary,
cut onion rings with a sharp knife at the set point and tear them
off. Fold onion-ring-inserts around the cables.
Apply UGA lubricant to the cables and rubber cutting surfaces of
the onion-ring-inserts.
The rubber cutting surfaces must touch with the inserted cable
without pressure and must not overlap.
False
®
®
MINEX
-C ABSzero
(DE-EN)
Assembly in-
structions
Right
