Durchflussmesser | FVone-EX-NP-CA
4 Anschließen
Achtung!
Überprüfen, ob die Versorgungsspannung mit der
Nennspannung des Durchflussmessers übereinstimmt.
1 Verbindung mit dem zugehörigen Kabel entspre-
chend dem Anschlussbild (siehe Fig. 10) herstellen.
2 Die Betriebsanzeige LED leuchtet.
FVone-EX
18
ANSCHLIESSEN | ELECTRICAL CONNECTION
4 Electrical connection
Caution!
Check that the supply voltage corresponds
with the voltage rating shown on the system.
1 Connect the supply by means of the appropriate
cable (see fig. 10).
2 The power indication LED lights.
braun/brown
+ DC 24 V
blau/blue
GND
weiß/white
reserviert/reserved
grün/green
reserviert/reserved
rosa/pink
Fehlermeldung/error
gelb/yellow
Pulsausgang/pulse output
schwarz/black
Relais 2/relay 2
grau/grey
Relais 2/relay 2
rot/red
Relais 1/relay 1
violett/purple
Relais 1/relay 1
grau-rosa/grey-pink
0/4...20 mA Temperatur/temperature
rot-blau/red-blue
0/4...20 mA Durchfluss/flow
+ DC 24 V
GND
Last/load max. 500 mA
Last/load max. 500 mA
AC/DC 24 V, max. 0,7 A
AC/DC 24 V, max. 0,7 A
Last/load max. 500 Ω
Last/load max. 500 Ω

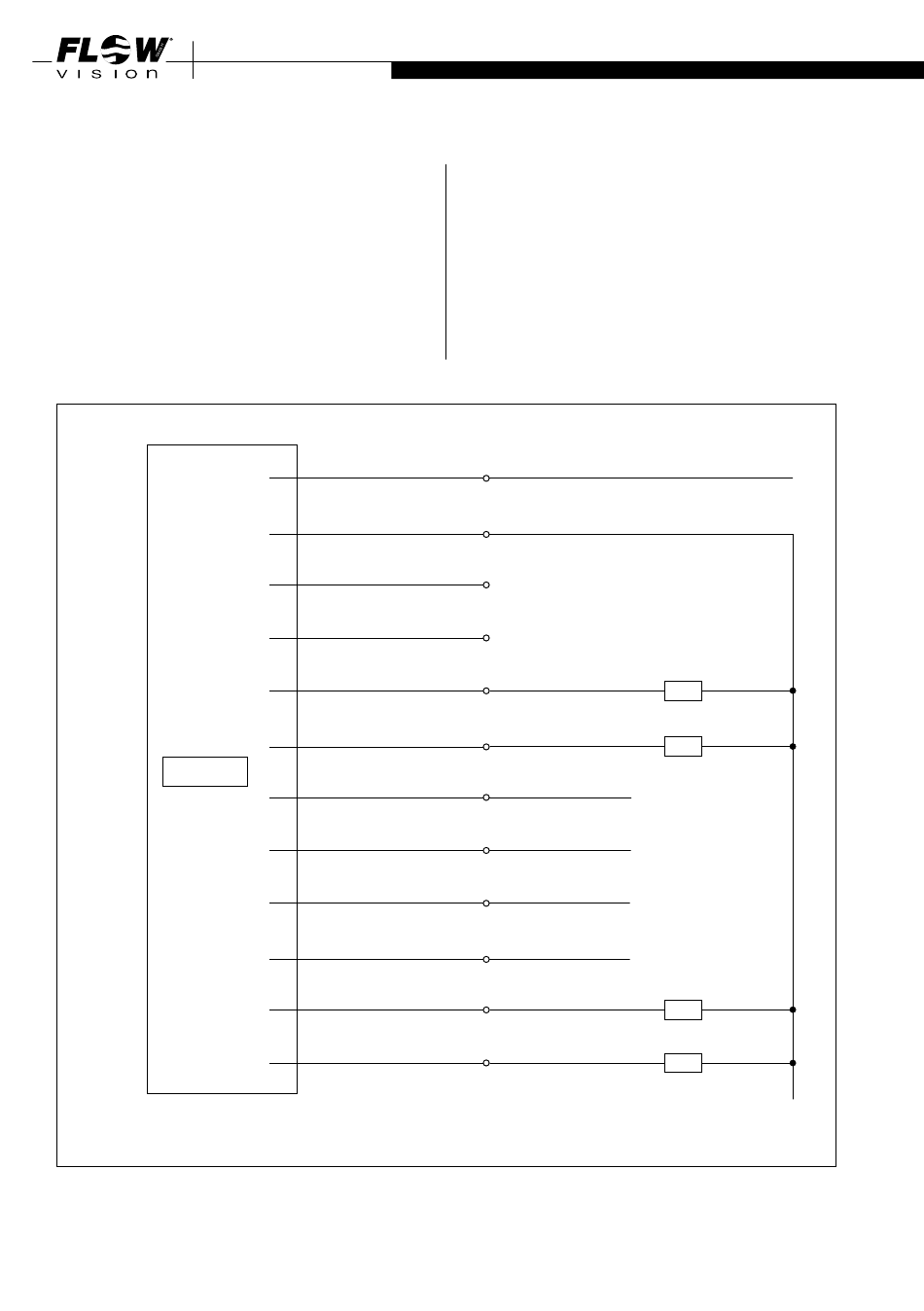

Fig. 10
